BEP SPDT Sealed Toggle Switch - ON/OFF/ON
BEP SPDT Sealed Toggle Switch - ON/OFF/ON — Product description

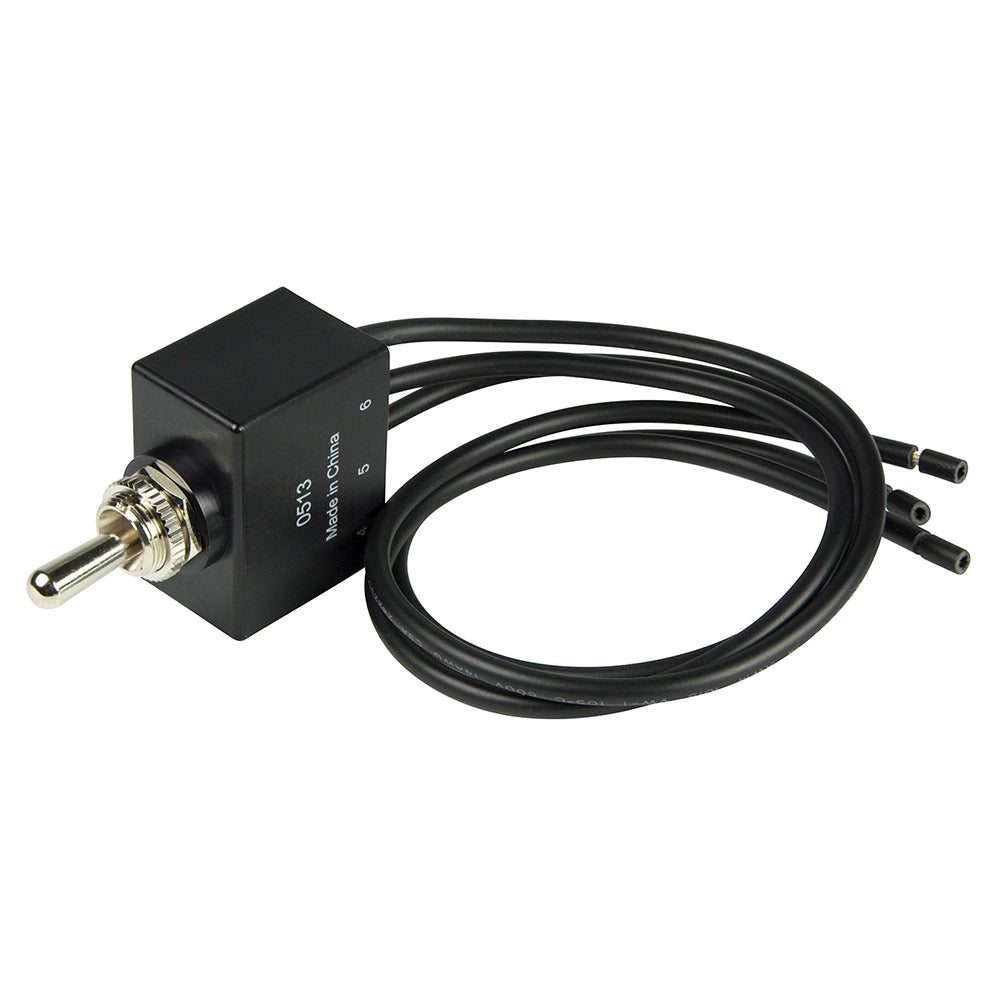

SPDT Sealed Toggle Switch - ON/OFF/ON
Single pole, double throw toggle switch turns one of two circuits on and off. Common applications include combining nav lights and anchor lights with independent bulbs. Completely sealed switches built to stand up to the most extreme conditions. Engineered to IP67 specifications utilizing a double o-ring within a bushing at the toggle and a full epoxy seal at the back.
Features:
Nominal voltage is 12V/24V DC
Rated for 25A at 12V DC, 15A at 24V DC
10" 14 AWG wire lead terminals
Mounting stem 15/32" fits panels up to 1/8" thick
Replaces Cole Hersee part number 55025-02
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
SPDT sealed toggle switch-on/off/single pole double throw toggle switch can open and close one of two circuits. Common applications include combining navigation lights and anchor points.
SKU: NVN-68674
MPN: 1002007
UPC: 870216046662
Technical specifications
| Brand | BEP Marine |
| Model | BEP SPDT Sealed Toggle Switch - ON/OFF/ON |
| SKU / MFR# | 68674 |
