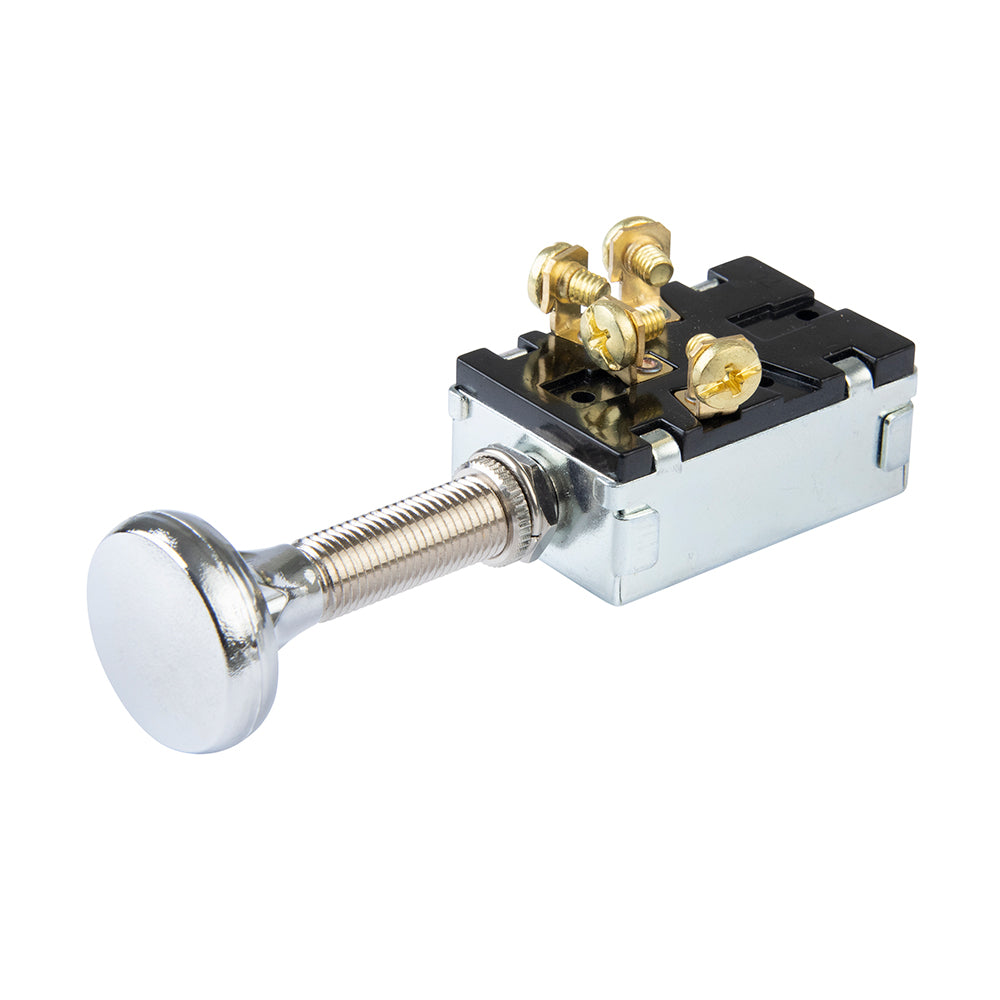

BEP 3-Position SPDT Push-Pull Switch - OFF/ON1 & 2/ON1 & 3

3-Position SPDT Push-Pull Switch - OFF/ON1 & 2/ON1 & 3

Single pole, double throw switch turns on position 1 and 2 or position 1 and 3. Can be used to combine nav lights and anchor light with shared bulbs. Heavy-duty, noncorrosive construction with moisture-repellent insulators. Brass case, stem, terminals and mounting hardware. All knobs are screw-on type.

Features:

• Nominal voltage is 6-36V DC
• Rated for 10A at 12V DC
• #8-32 screw terminals
• Fits panels up to 1" thick
• Same as Cole Hersee part number M-532

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Can be used to combine navigation lights and anchor lights with shared light bulbs. Heavy-duty, non-corrosive structure with moisture-proof insulator. Brass housing, stem, terminal and...
SKU: NVN-67451
MPN: 1001305
UPC: 870216045993
