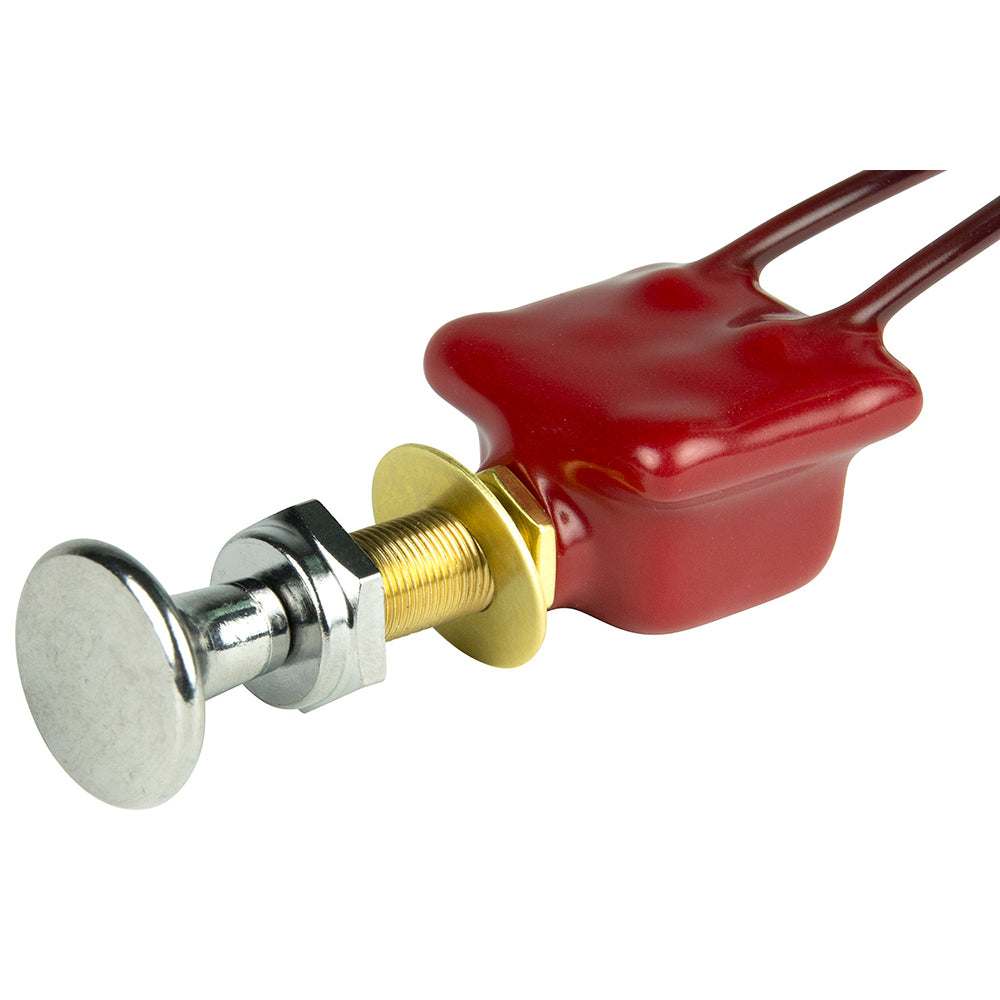

BEP 2-Position SPST Push-Pull Switch w/Wire Leads - OFF/ON
BEP 2-Position SPST Push-Pull Switch w/Wire Leads - OFF/ON — Product description
Single pole, single throw switch turns one circuit on and off. Heavy-duty, noncorrosive construction with moisture-repellent insulators. Brass case, stem, terminals and mounting hardware. Plasticized body helps seal out moisture and dirt. All knobs are screw-on type.
BEP Marine 1001306 Attributes
- Type: Push-Pull
- Voltage: 12 Volt
- Current Rating: 10 Amp
- Number Of Switch Positions: 2
BEP Marine 1001306 Features & Benefits
- Nominal Voltage Is 6-36 Volt DC
- Rated For 10 Ampere At 12 Volt DC
- Two 8 Inch 16 AWG Wire Leads For Terminals
- For Panels Up To 5/8 Inch Thick
- Limited 2 Year Warranty
BEP Marine 1001306 Technical Bulletins
2-Position SPST Push-Pull Switch w/Wire Leads - OFF/ON
Single pole, single throw switch turns one circuit on and off. Heavy-duty, noncorrosive construction with moisture-repellent insulators. Brass case, stem, terminals and mounting hardware. Plasticized body helps seal out moisture and dirt. All knobs are screw-on type.
Features:
- Nominal voltage is 6-36V DC
- Rated for 10A at 12V DC
- Two 8" 16 AWG wire leads for terminals
- Fits panels up to 5/8" thick
- Same as Cole Hersee part number M-606
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
A single-pole single-throw switch can open and close a circuit. All knobs are screw-in. It is rated 10A at 12V DC. Suitable for panels up to 5/8" thick. Replace Cole hersee parts...
SKU: NVN-67445
MPN: 1001306
UPC: 870216046006
