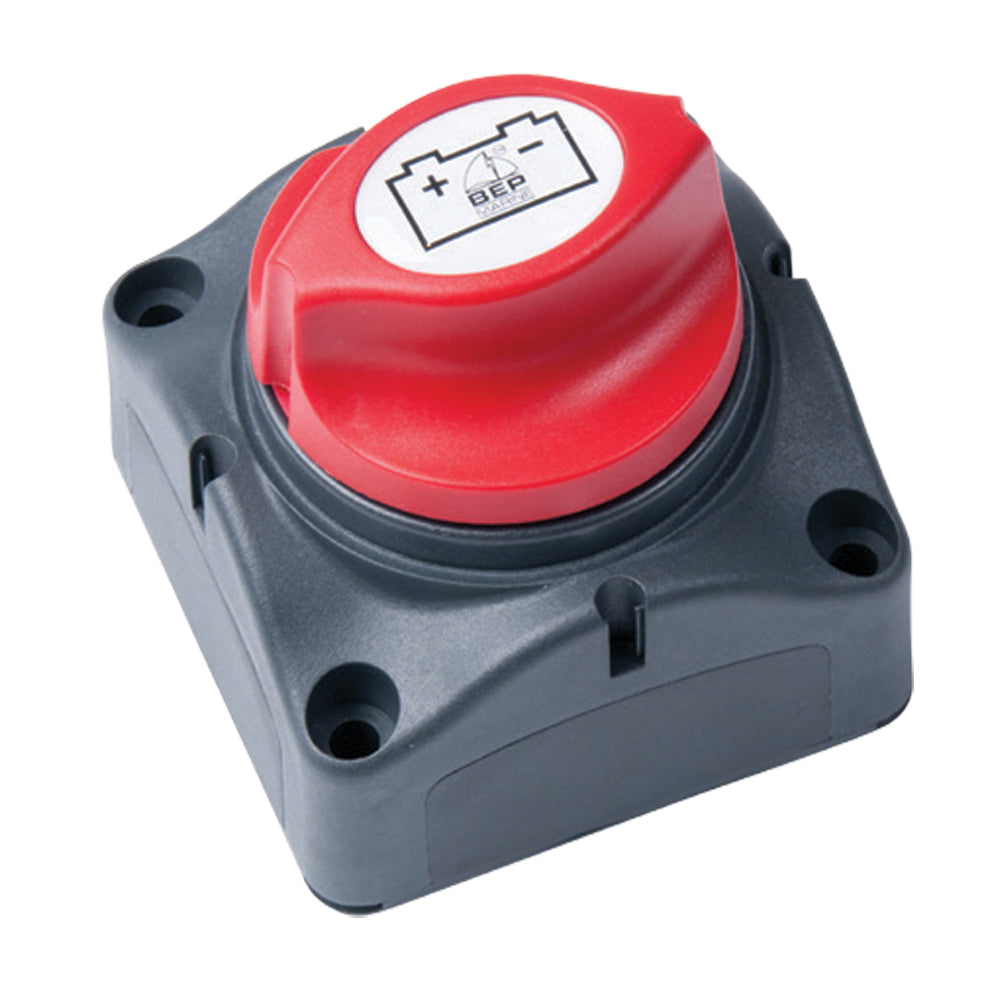

BEP Contour Battery Disconnect Switch - 275A Continuous

This switch offers a number of unique features, the highlight being the patented Contour Locking System, allowing it to be a stand alone unit, or locked together with other switches. The control knob can be removed by switching to an counterclockwise 45 Degree position. This control knob also features an interchangeable labeling system allowing a full range of applications. Three removable side plates provide access of up to 1/0 cables. The rear cover insulating the rear terminals against any short circuits. This ensures that the switch meets ABYC requirements. BEP Marine Battery Switch Test Procedures (UL 1107) Continuous (1 hour), intermittent (5 minutes) and Cranking (engine starting - 10 seconds). The test is to determine the maximum current the switch can handle for the stated time, without the rear terminals exceeding 100 Degree Celsius (212 Degree Fahrenheit) above the ambient temperature. The continuous and intermittent ratings are tested at 110 percent of specified ratings.

BEP Marine 701 Attributes

• Type: Key
• Activation Type: Manual
• Continuous Ampere Rating (A): 275 Amp
• Surge Ampere Rating (A): 1250 Amp
• Installation Type: Bolt-On

BEP Marine 701 Features & Benefits

• Tin-Plated Copper Studs And Nuts
• Ignition Protected
• Can Be Either Surface Or Recess Mounted By Cutting A 2.1 Inch Hole
• Please Note Selector Switches Will Not Separate Electronics From Harmful Engine Starting Spikes
• Patented Contour Locking System Allows Switch To Be A Stand Alone Unit Or Locked Together With Other Switches
• Control Knob Can Be Removed By Switching To Counter-Clockwise 45 Degree Position
• Three Removable Side Plates For Access Of Up To 1/0 Cables Plus A Rear Cover Insulating The Rear Terminals Against Any Short Circuits
• Limited 2 Year Warranty

BEP Marine 701 Installation Instructions

• Instructions_701.pdf

Mini Contour Battery Disconnect Switch - 275A Continuous

This switch offers a number of unique features, the highlight being the Contour Locking System, allowing it to be a stand alone unit, or locked together with other switches. The control knob can be removed by switching to an counterclockwise 45 degree position. This control knob also features an interchangeable labeling system allowing a full range of applications (Item # 713 or 715). Three removable side plates provide access of up to 1/0 cables. The rear cover insulating the rear terminals against any short circuits. This ensures that the switch meets ABYC requirements. BEP Marine Battery Switch Test Procedures (UL 1107) Continuous (1 hour), intermittent (5 minutes) and Cranking (engine starting - 10 seconds). The test is to determine the maximum current the switch can handle for the stated time, without the rear terminals exceeding 100°C (212°F) above the ambient temperature. The continuous and intermittent ratings are tested at 110% of specified ratings. All BEP switches are tested Independently to this specification by a 3rd party laboratory.

Features:

• Can be either surface or recess mounted by cutting a 2.1" (52 mm) hole

• Available with house knob (OEM # 701B-HB) or with chassis knob (OEM # 701B-CH)

• Tin-plated copper studs and nuts

• Ignition-protected

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The 701 contour battery main switch has many unique functions. The highlight is the patented contour locking system, which can make it a standalone device or lock...
SKU: NVN-60032
MPN: 701
UPC: 870216000015
