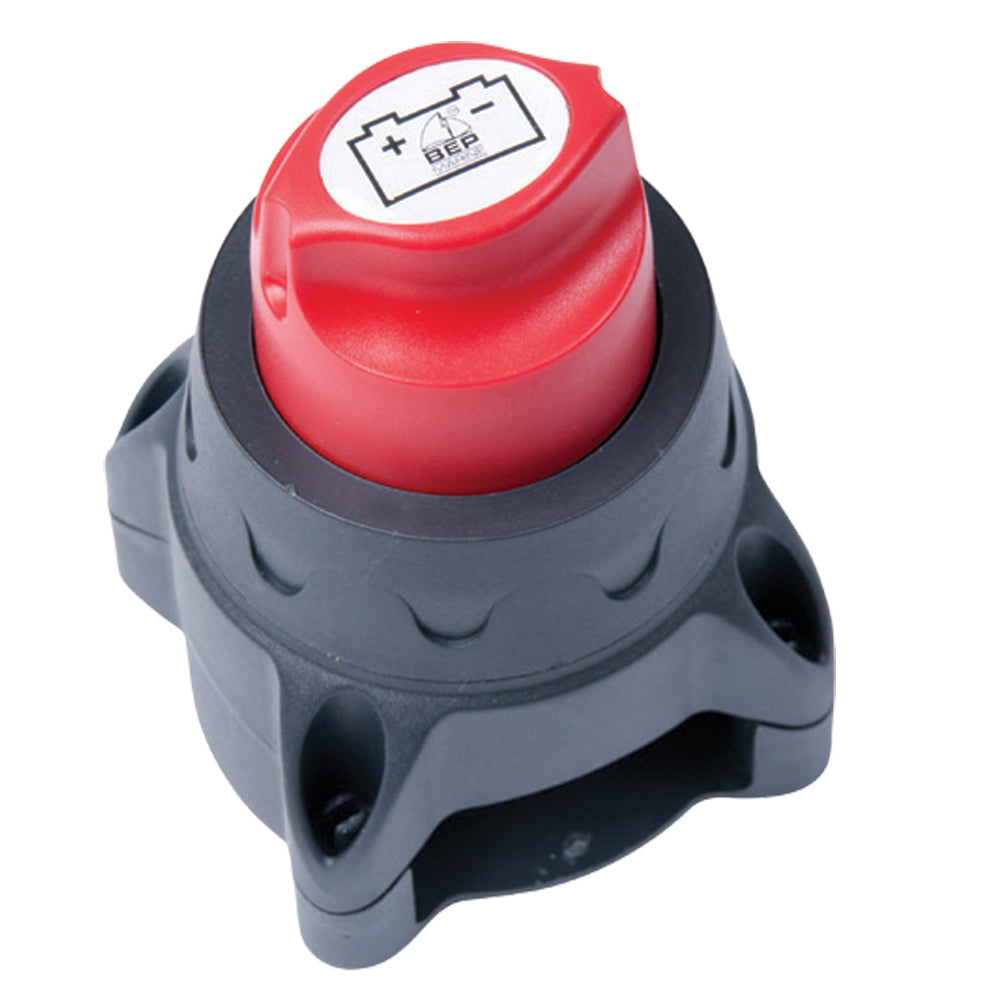

BEP Easy Fit Battery Switch - 275A Continuous

The Easyfit Battery Switch was created for installations where switches need to be recessed through varying thicknesses of panels. It achieves this through an easily removable threaded ring that allows for panel thicknesses up to 3/4 Inch. This switch uses the same features as the 701 with the removable key 45 Degree past the off position, labeled handle and a removable back cover covering exposed terminals to meet ABYC specifications. It can also be surface mounted offering a unique style. BEP Marine Battery Switch Test Procedures (UL 1107) Continuous (1 hour), intermittent (5 minutes) and Cranking (engine starting - 10 seconds). The test is to determine the maximum current the switch can handle for the stated time, without the rear terminals exceeding 100 Degree Celsius (212 degree Fahrenheit) above the ambient temperature. The continuous and intermittent ratings are tested at 110 percent of specified ratings.

BEP Marine 700 Attributes

• Type: Key
• Activation Type: Manual
• Continuous Ampere Rating (A): 275 Amp
• Surge Ampere Rating (A): 1250 Amp
• Installation Type: Bolt-On

BEP Marine 700 Features & Benefits

• Molded In High Temperature, Fiber Reinforced Plastics
• Tin-Plated Copper Studs And Nuts
• Ignition Protected
• Can Easily Be Retro-Fitted In Place Of Most European Post And Lever Type Switches
• Easily Removable Threaded Ring Allows For Panel Thicknesses Up To 3/4 Inch
• Features As The 701 With The Removable Knob 45 Degree Past The Off Position
• Limited 2 Year Warranty

Easy Fit Battery Switch - 275A Continuous

The Easyfit Battery Switch was created for installations where switches need to be recessed through varying thicknesses of panels. It achieves this through an easily removable threaded ring that allows for panel thicknesses up to 3/4" (19 mm). This switch uses the same features as the 701 with the removable key 45 degree past the off position, labeled handle and a removable back cover covering exposed terminals to meet ABYC specifications. It can also be surface mounted offering a unique style compared to other switches available on the market. BEP Marine Battery Switch Test Procedures (UL 1107) Continuous (1 hour), intermittent (5 minutes) and Cranking (engine starting - 10 seconds). The test is to determine the maximum current the switch can handle for the stated time, without the rear terminals exceeding 100 deg C (212 deg F) above the ambient temperature. The continuous and intermittent ratings are tested at 110% of specified ratings. All BEP switches are tested Independently to this specification by a 3rd party laboratory.

Features:

• Can easily be retro-fitted in place of most European post and lever type switches

• Molded in high temperature, fiber reinforced plastics

• Tin-plated copper studs and nuts

• Ignition-protected

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The 700RV Easyfit switch achieves this with an easily removable threaded ring, allowing panel thicknesses of up to 3/4 inch (19 mm). This durable switch design has...
SKU: NVN-60031
MPN: 700
UPC: 870216000169
