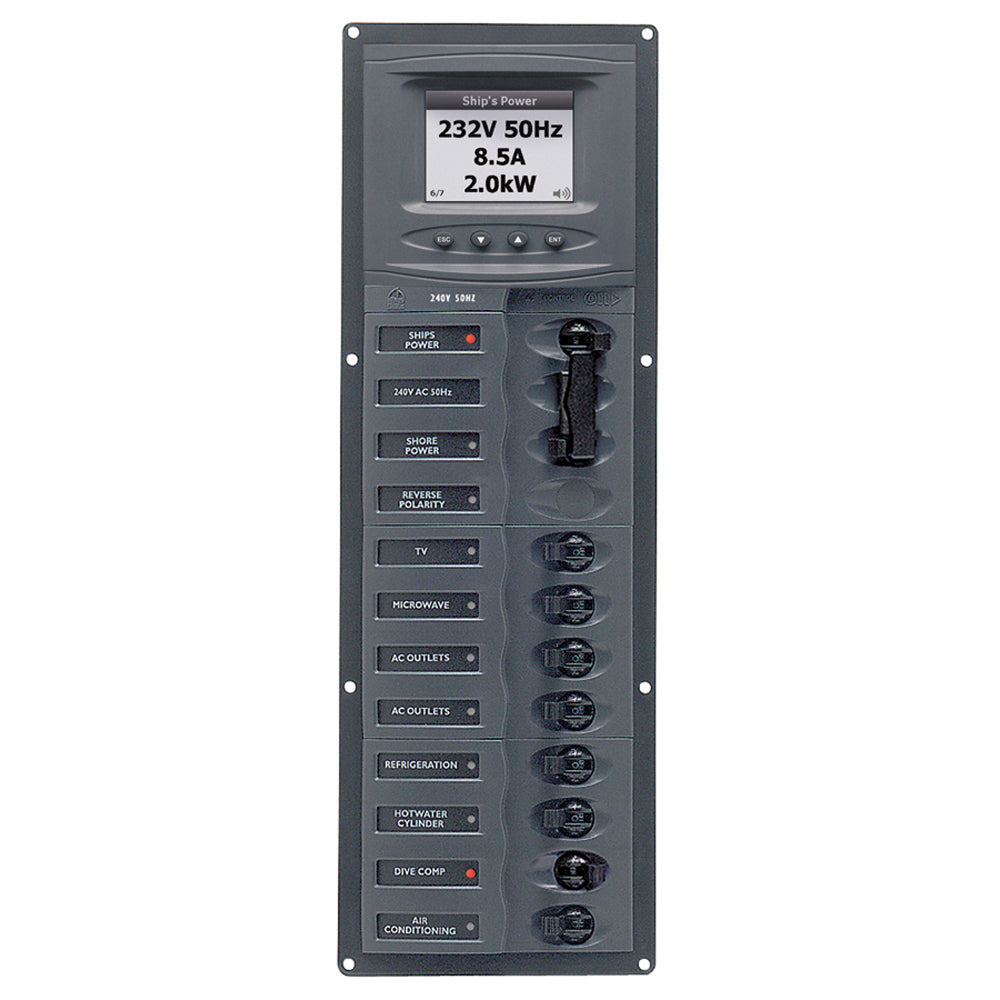

BEP AC Circuit Breaker Panel w/Digital Meters, 8SP 2DP AC230V ACSM Stainless Steel Vertical

AC Circuit Breaker Panel with Digital Meters, 8SP 2DP AC230V ACSM Stainless Steel Vertical

Features

• Supplied with tranducer

• Reverse polarity indicator

• Double pole mains input CBs with side lockout

• Digital meter shows volts, amps and frequency

• LED wired to indicate live panel with mains breaker either on or off

• AC source selector ensures no cross over between AC inputs (ship or
  shore power)

Specifications

• Total Positions: 8 Loads + 2 Inputs

• Circuit Breakers: 1x 5A, 3x 10A, 3x 15A, 1x 20A + 1x 20A, 1x 30A

• Nominal Voltage: 230V AC

• Maximum Amperage: 30A

• Dimensions: 15" X 5" X 2.5"

• Neg Bus: IS-6MM-2

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product is very suitable for use in all marine applications. It will meet the needs of yacht lovers and ambitious yacht owners. Get this excellent product for...
SKU: NVN-59028
MPN: 900-AC2V-ACSM
UPC: 843687004271
