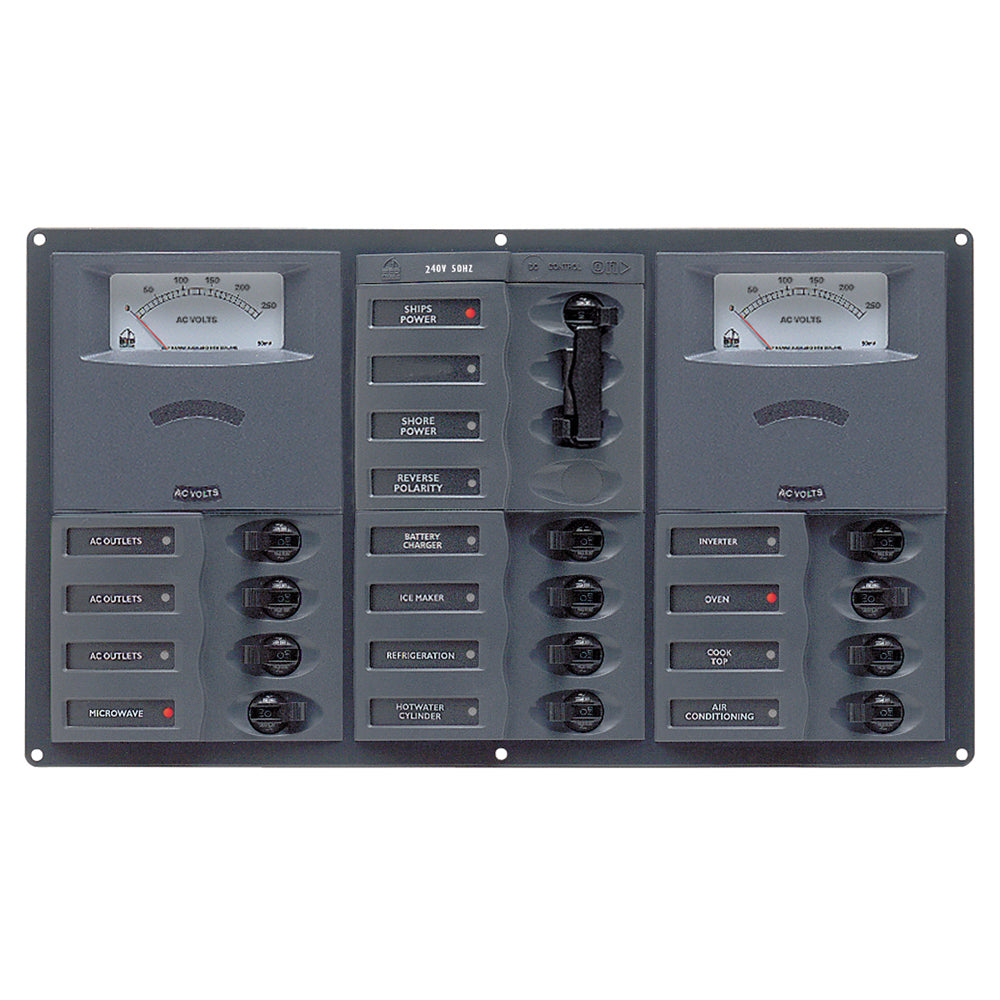

BEP AC Circuit Breaker Panel w/Analog Meters, 2SP 1DP AC120V

AC Circuit Breaker Panel with Analog Meters, 2SP 1DP AC120V

Features

• Supplied with tranducer

• Reverse polarity indicator

• Double pole mains input CBs with side lockout

• Analog meter

• LED wired to indicate live panel with mains breaker either on or off

• AC source selector ensures no cross over between AC inputs (ship or shore power)

Specifications

• Total Positions: 2 Loads + 1 Input

• Circuit Breakers: 2X 15A + 1X 30A

• Nominal Voltage: 110V AC

• Maximum Amperage: 30A

• Dimensions: 7.9" X 5" X 2.5"

• Neg Bus: IS-6MM-2

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

What is more interesting and meaningful than boating in open water? This is an excellent solution to meet your boating needs. This product is very suitable for use in all marine equipment.
SKU: NVN-59016
MPN: 900-ACM2-AM-110
UPC: 843687007166
