BEP Panel 12SP DC12V Analog

Panel 12SP DC12V Analog

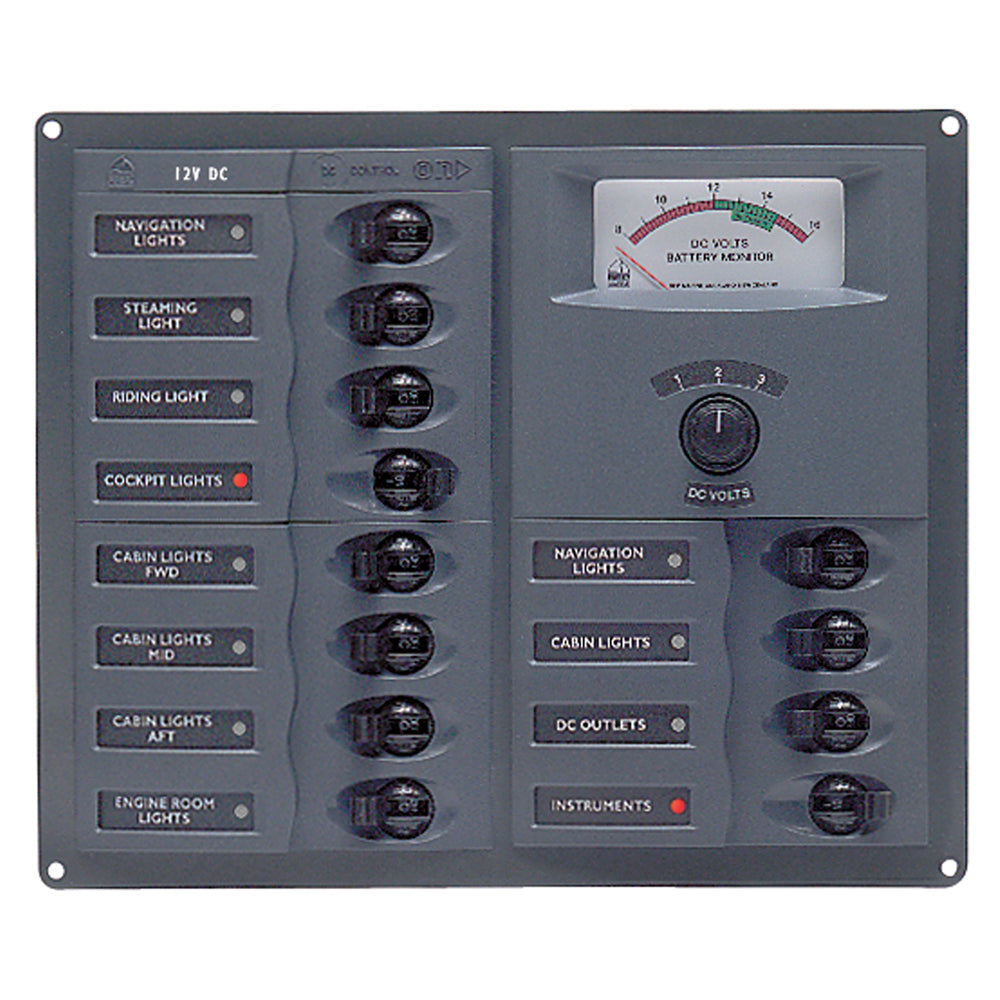

DC circuit breaker panel with analog monitoring

BEP Marine uses the highest quality materials in its range of Control
Panels, from the marine grade aluminium base plates to the Airpax magnetic
hydraulic circuit breakers.

Features

• Marine Grade powder coated aluminium

• Airpax circuit breaker

• Stylish Contour Design fascia

• Green LED backlit labels

• Red LED indicates systems on

• Panels meet ABYC standards

Specifications

Total Positions: 12 Loads
Circuit Breakers: 3X 5A, 4X 10A, 4X 15A, 1X 25A
Nominal Voltage: 12V
Maximum Amperage: 160A
Dimensions: 15" X 5" X 2.5"
Neg Bus: 6 Way

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

"What can be more fun and rewarding than boating on the open waters? This is an excellent solution for your boating needs. This product is great for use in all marine applications. It will satisfy the needs of both pleasure boat enthusiasts and ambitious yacht owners. Get this excellent product for your vessel and prepare to embark on a thrilling adventure."
SKU: NVN-58883
MPN: 902-AM
UPC: 843687003823
