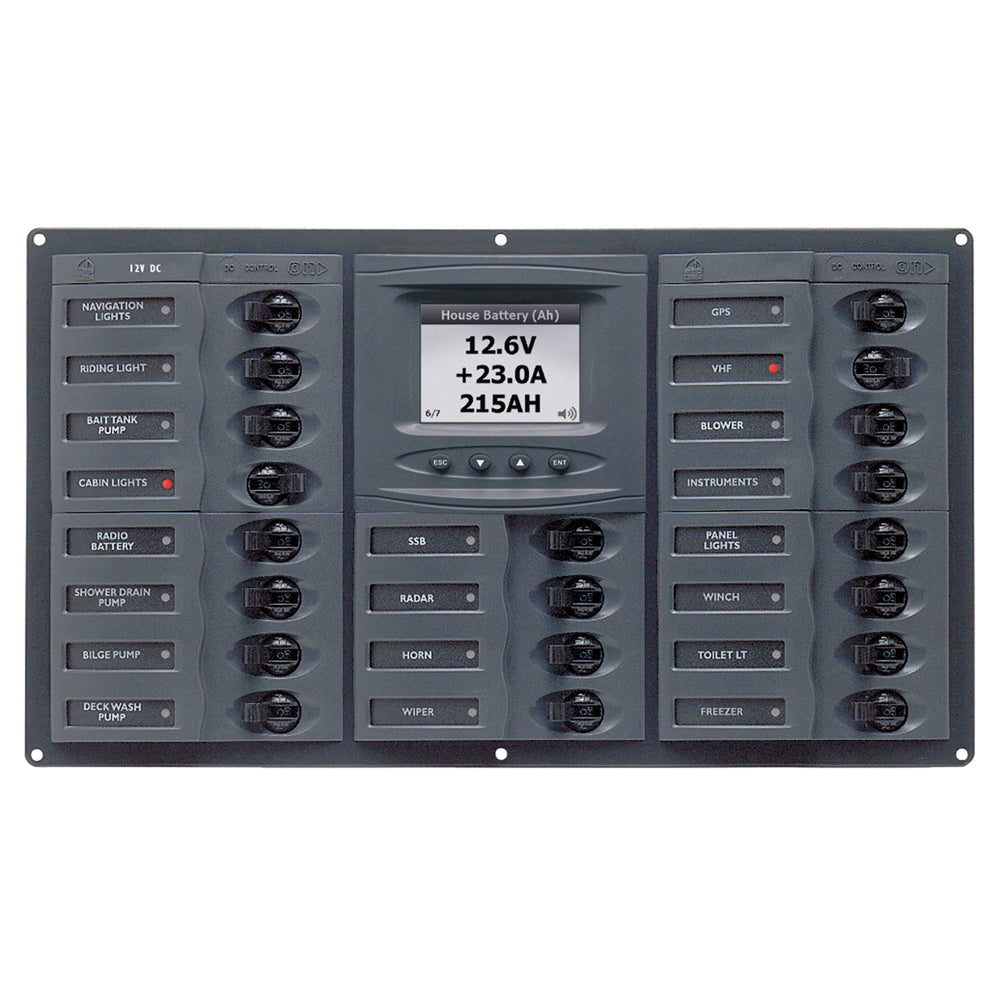

BEP Panel 20SP DC12V DCSM

Panel 20SP DC12V DCSM
DC circuit breaker panel with digital monitoring

BEP Marine uses the highest quality materials in its range of Control
Panels, from the marine grade aluminium base plates to the Airpax magnetic
hydraulic circuit breakers.

Features

• Marine Grade powder coated aluminium

• Airpax circuit breaker

• Stylish Contour Design fascia

• Green LED backlit labels

• Red LED indicates systems on

• Panels meet ABYC standards

Specifications

Total Positions: 20 Loads
Circuit Breakers: 5X 5A, 6X 10A, 7X 15A, 1X 20A, 1X 30A
Nominal Voltage: 12V
Maximum Amperage: 160A/80A/160A buses
Dimensions: 7.9" X 9.75" X 2.5"
Neg Bus: 12 Way

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product is very suitable for use in all marine applications. It will meet the needs of leisure boat lovers and ambitious yacht owners. Get this excellent product for...
SKU: NVN-58867
MPN: 903-DCSM
