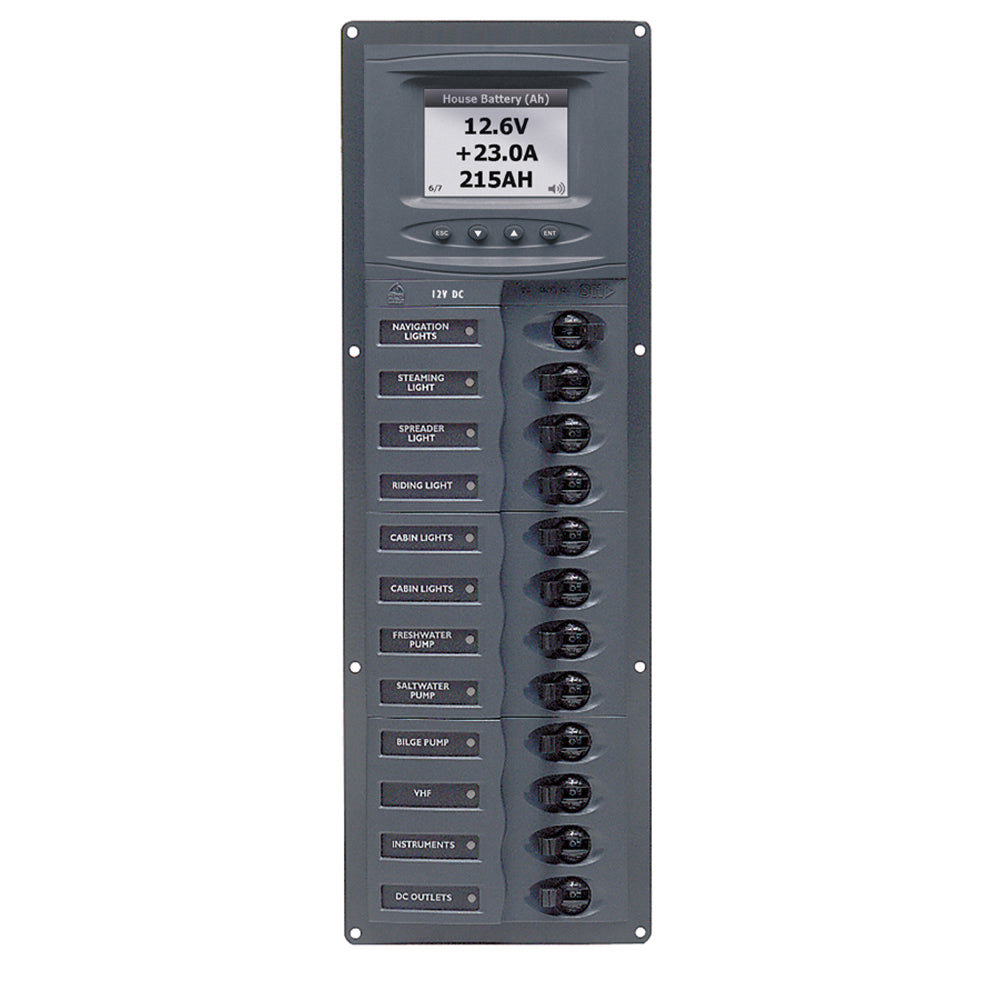

BEP Panel 12SP DC12V DCSM Vertical

Panel 12SP DC12V DCSM Vertical
DC circuit breaker panel with digital monitoring

BEP Marine uses the highest quality materials in its range of Control
Panels, from the marine grade aluminium base plates to the Airpax magnetic
hydraulic circuit breakers.

Features

• Marine Grade powder coated aluminium

• Airpax circuit breaker

• Stylish Contour Design fascia

• Green LED backlit labels

• Red LED indicates systems on

• Panels meet ABYC standards

Specifications

Total Positions: 12 Loads
Circuit Breakers: 3X 5A, 4X 10A, 4X 15A, 1X 25A
Nominal Voltage: 12V
Maximum Amperage: 160A
Dimensions: 15" X 5" X 2.5"
Neg Bus: 6 Way

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

From marine-grade aluminum base plates to airport electromagnetic hydraulic circuit breakers, BEP Marine uses the highest quality materials in its control panels.
SKU: NVN-58865
MPN: 902V-DCSM
UPC: 843687004073
