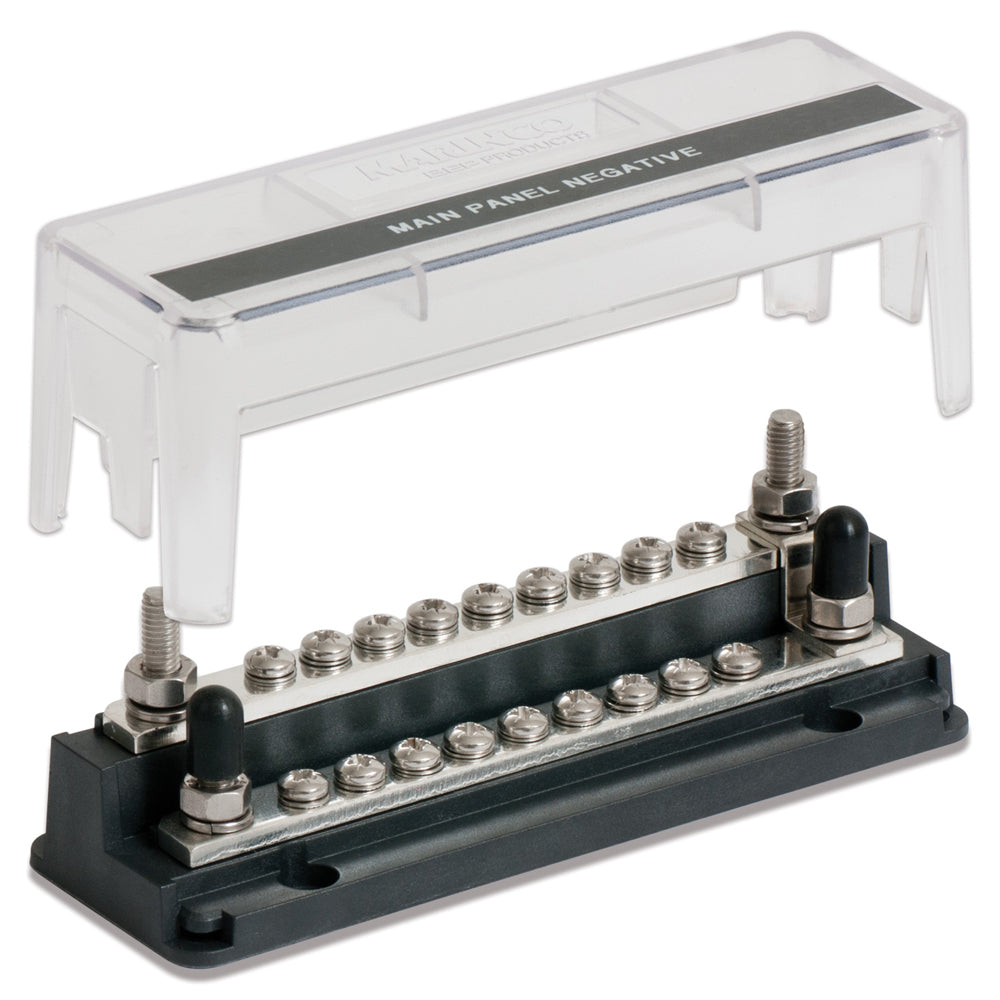

BEP Pro Installer Z Bus Bar - 18 Way - 200A

This patent-pending, space saving buss bar range is a completely new concept for marine cable termination. Offering almost unlimited installation flexibility, the high and low level bars can be bussed together with Z-Link or used as separate positive and negative bars.

BEP Marine 777Z18W200 Attributes

• Type: Flat Strip
• Number Of Terminals: 18
• Voltage Rating: 50 Volt
• Ampere: 200 Amp
• Length (IN): 5.8 Inch
• Width (IN): 1.91 Inch
• Material: Copper Conductor/ Stainless Steel Studs
• Cable Entry Type: 18 Way Z Cable Entry
• With Insulated Cover: No

BEP Marine 777Z18W200 Features & Benefits

• Innovative Clear Covers Insulate
• Clean Installation-All Cables Can Be Run From One Side Of The Z-Bar
• Easily Extend Z-Bars By Placing On End Or Back-To-Back
• Protect On Three Sides And Offer Easy Access
• Limited 2 Year Warranty

BEP Marine 777Z18W200 Technical Bulletins

• 777-BB4S-500_INSTL_1.pdf
• 777-BB3S-650_INSTL_2.pdf
• MAR_BRO_014.pdf

200A Z Bar 18 Way Bus Bar

This patent-pending, space saving buss bar range is a completely new concept for marine cable termination. Offering almost unlimited installation flexibility, the high and low level bars can be bussed together with Z-Link or used as separate positive/negative bars.

• Easily extend Z-Bars by placing on end or back-to-back

• Clean installation-all cables can be run from one side of the Z-bar

• Innovative clear covers insulate and protect on three sides and offer easy access

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

200A Z Bar 18 Way Bus Bar This is a patent-pending space-saving bus bar series, which is a new concept of marine cable termination. Provide almost unlimited
SKU: NVN-58694
MPN: 777-Z18W-200
UPC: 843687006763
