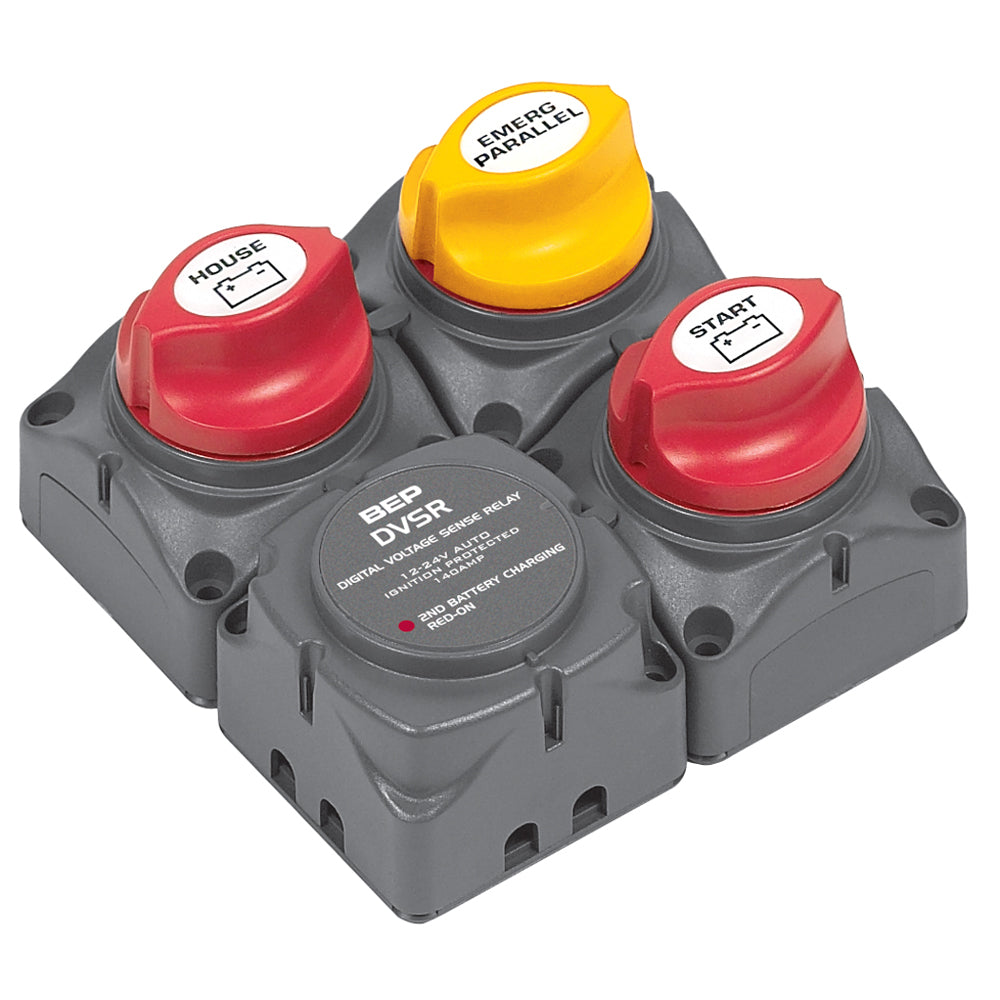

BEP Square Battery Distribution Cluster f/Single Engine w/Two Battery Banks

Ideal replacement for a battery selector switch. Just remove the selector switch and connect the existing wires to a 716 cluster, no extra wires are required for a fully automatic battery management system. To be used in a single outboard dual battery bank system or in a single alternator inboard engine dual battery bank system.

BEP Marine 716SQ140SR Attributes

• Type: Rotary Switch
• Activation Type: Manual
• Continuous Ampere Rating (A): 150 Amp
• Installation Type: Bolt-On

BEP Marine 716SQ140SR Features & Benefits

• Battery Disconnect Switch
• Electronics Protection From Harmful Engine Start Spikes
• 716 Cluster Is For Use On Charging Systems Up To 150 Ampere
• 716 Cluster Replaces Battery Isolator Systems
• Two Battery Banks
• Limited 2 Year Warranty

BEP Marine 716SQ140SR Technical Bulletins

• 716-SQ-140A-DVSR_TCHDAT_BEP1.pdf

Square Battery Distribution Cluster f/Single Engine w/Two Battery Banks

The 716-SQ-140A-DVSR is an ideal replacement for a battery selector switch. Just remove the selector switch and connect the existing wires to a 716 cluster, no extra wires are required for a fully automatic battery management system. To be used in single outboard dual battery bank or single alternator inboard engine dual battery bank.

• No more flat start batteries

• Electronics protection from harmful engine start spikes

• The 716 cluster is for use on charging systems up to 150A

• The 716 cluster replaces battery isolator systems

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Simply remove the selector switch and connect the existing wires to the 716 cluster. No additional wires are needed to implement a fully automated battery management system. Used for...
SKU: NVN-58658
MPN: 716-SQ-140A-DVSR
UPC: 843687005568
