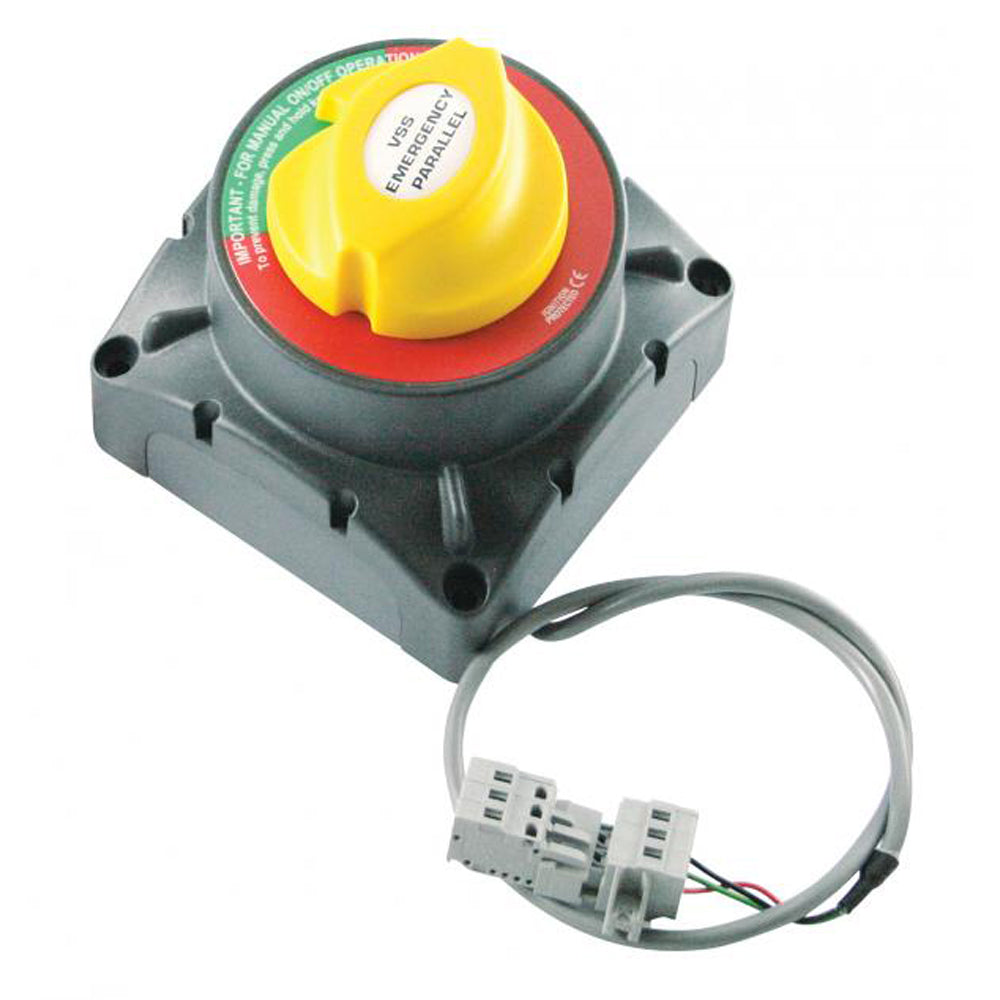

BEP Dual Operation VSS Switch 12/24V HD Optic - 500A

These Voltage Sensitive Switches automatically sense connected battery bank voltages and provide optimal, efficient charging of the second bank. The VSS allows for independent battery banks to be combined or isolated based on the presence of a charging source, while also offering remotely activated, high current, emergency parallel connection. Designed and constructed for longevity in the marine environment with tinned copper conductors, stainless steel nuts, and high temperature, fiber reinforced plastics. The units are ignition protected, provide On/Off switching operation, and may be recessed or surface mounted. The remote emergency parallel function can be operated through a momentary button on the dash which will parallel the batteries for 10 minutes. Once this 10 minutes has passed, if the voltage is high enough, the voltage sensitive switch will stay engaged. If not, it will disengage.

BEP Marine 720MDVSO Attributes

• Function: Allows Charging Of Two Independent Battery Banks From Any Single Charging Source
• Operating Voltage: 12/ 24 Volt
• Ampere Rating: 500 Amp Continuous/ 700 Amp Intermittent
• Length (IN): 4 Inch
• Width (IN): 4 Inch
• Height (IN): 4-5/16 Inch
• Mounting Type: Surface

BEP Marine 720MDVSO Features & Benefits

• Dual Battery Sensing
• Manual Override Option
• Dual 12/24 Volt Operation
• Low Power Consumption
• Lowered Cut In Voltage Suits Low Output Alternators And High Temperature Environments
• Limited 5 Year Warranty

BEP Marine 720MDVSO Technical Bulletins

• 720-MDVSO_TCHDAT_BEP1.pdf
• 701-MDVS_TECHDAT_schematic.pdf
• 720-MDVSO_TCHDAT_BEP2.pdf

Dual Operation VSS Switch 12/24V HD Optic - 500A

These Voltage Sensitive Switches (VSS) automatically sense connected battery bank voltages and provide optimal, efficient charging of the second bank. The VSS allows for independent battery banks to be combined or isolated based on the presence of a charging source (such as an engine alternator or battery charger), while also offering remotely activated, high current, emergency parallel connection. Designed and constructed for longevity in the marine environment with tinned copper conductors, stainless steel nuts, and high temperature, fibre reinforced plastics. The units are ignition protected, provide On/Off switching operation, and may be recessed or surface mounted. The remote emergency parallel function can be operated through a momentary button on the dash which will parallel the batteries for 10 minutes. Once this 10 minutes has passed, if the voltage is high enough, the voltage sensitive switch will stay engaged. If not, it will disengage.

Features:

• Dual battery sensing

• Manual override option

• Dual 12/24 volt operation (both banks must be same voltage)

• Low power consumption (<6mA)

• Lowered cut in voltage (13.3/26.6V) suits low output alternators and high temperature environments

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Dual operation VSS switch 12 / 24V HD Optic-500A These voltage sensitive switches (VSS) automatically sense the voltage of the connected battery pack and provide the best and efficient...
SKU: NVN-58648
MPN: 720-MDVSO
UPC: 843687004783
