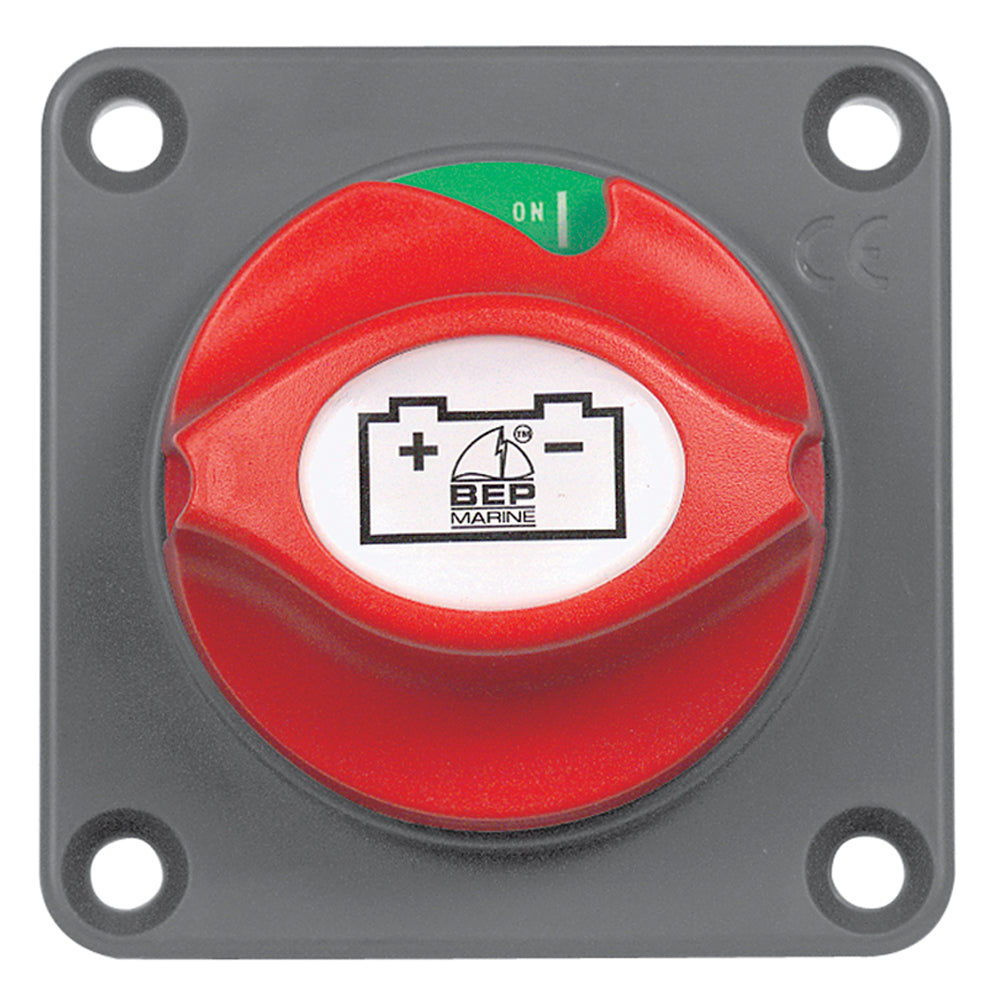

BEP Panel-Mounted Battery Master Switch

Panel-mounted switches are designed specifically for panel mount applications. This range gives a very compact, versatile solution.

BEP Marine 701PM Attributes

• Type: Rotary Switch
• Activation Type: Manual
• Continuous Ampere Rating (A): 275 Amp
• Surge Ampere Rating (A): 1250 Amp
• Installation Type: Bolt-On

BEP Marine 701PM Features & Benefits

• Compact, Lightweight
• Removable Key
• Countersunk Recesses For Surface Mount Application
• Captive Inserts For 3/16 Inch Nuts Providing Full Access For Cables With No Restrictions
• Standard Interchange Label System
• Molded In High Temperature, Fiber Reinforced Plastics
• Limited 2 Year Warranty

BEP Marine 701PM Technical Bulletins

• 701-PM_USE.pdf
• 701-PM_TCHDAT_dimensions.pdf

Panel-Mounted Battery Master Switch

Panel-mounted switches are designed specifically for panel mount applications. This range gives a very compact, versatile solution.

• Compact, lightweight

• Removable key

• Countersunk recesses for surface mount application

• Standard 2-1/16" (52 mm) hole cut out (same as standard gauge hole)

• Inside: captive inserts for 3/16" (4.8 mm) nuts providing full access for cables with no restrictions

• Standard interchange label system

• Molded in high temperature, fiber reinforced plastics

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Panel-mounted battery main switch; Panel-mounted switch is specially designed for panel-mounted applications. This range provides a very compact universal solution.
SKU: NVN-58597
MPN: 701-PM
UPC: 870216005355
