Balmar Alternator 120 Amp Saddle Mount ARS Regulator w/Temp Sensor Single K6 Pulley

Alternator 120 Amp Saddle Mount ARS Regulator with Temp Sensor Single K6 Pulley

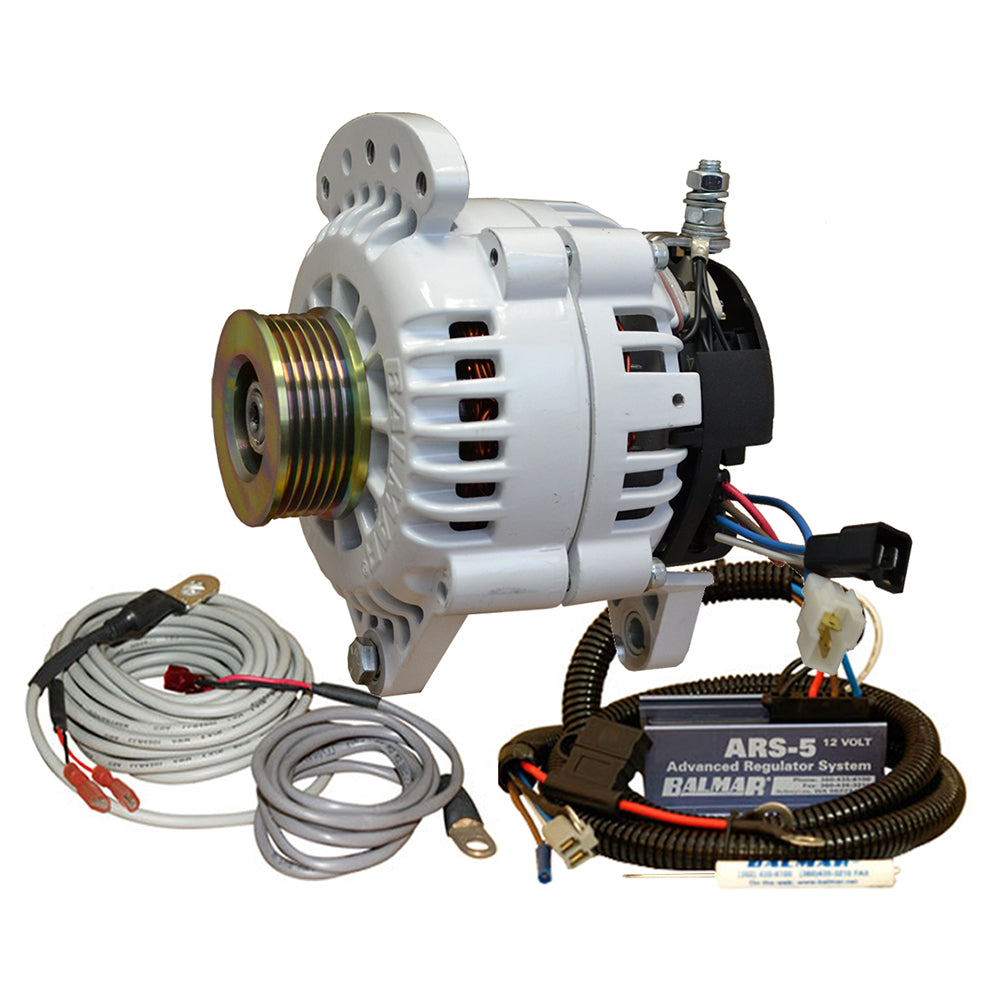

Kit Includes: 60-120-K6 Alternator, ARS-5 Regulator, Temperature Sensors, Mounting Hardware

60-120-K6 Alternator: 120A, 12V, Saddle Mount (Dual Foot), 3.15in, K6 Serpentine Pulley, Isolated Ground

Hitachi-Style Mounting; Typical for Yanmar, Westerbeke, Lehman & Perkins-Sabre Engines

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

"This Alternator and regulator kit with temperature sensors comes with an ARS5-H regulator. The alternator is a dual foot mount and output is 12 volts 120 Amps. It has a 6 groove serpentine pulley High output alternator. Small case, isolated ground. Yanmar style dual foot mount Externally regulated single output. Patented SmartReady backup internal regulator. Certified ignition protected for gasoline or diesel motors. High volume cooler running dual internal fans The alternator kit includes an ARS5-H regulator and two temperature sensors. Datasheet, dimensions, output curves Tech TipWhen you mount the alternator to the engine the mounting bolt must be the same diameter as all the holes it passes through. If it isn't bushings are available to modify the mounting tabs of the alternator. When you tighten up the mounting bolt the bushing at the back foot of the alternator slides forward to tighten up the gap. At this stage the alternator should be firmly fixed with no wobble. You must get this right or the alternator will become cocked as you tighten up the belt and the resulting misalignment will cause excessive belt wear."
SKU: NVN-83215
MPN: 60-YP-120-K6
UPC: 676205750684
