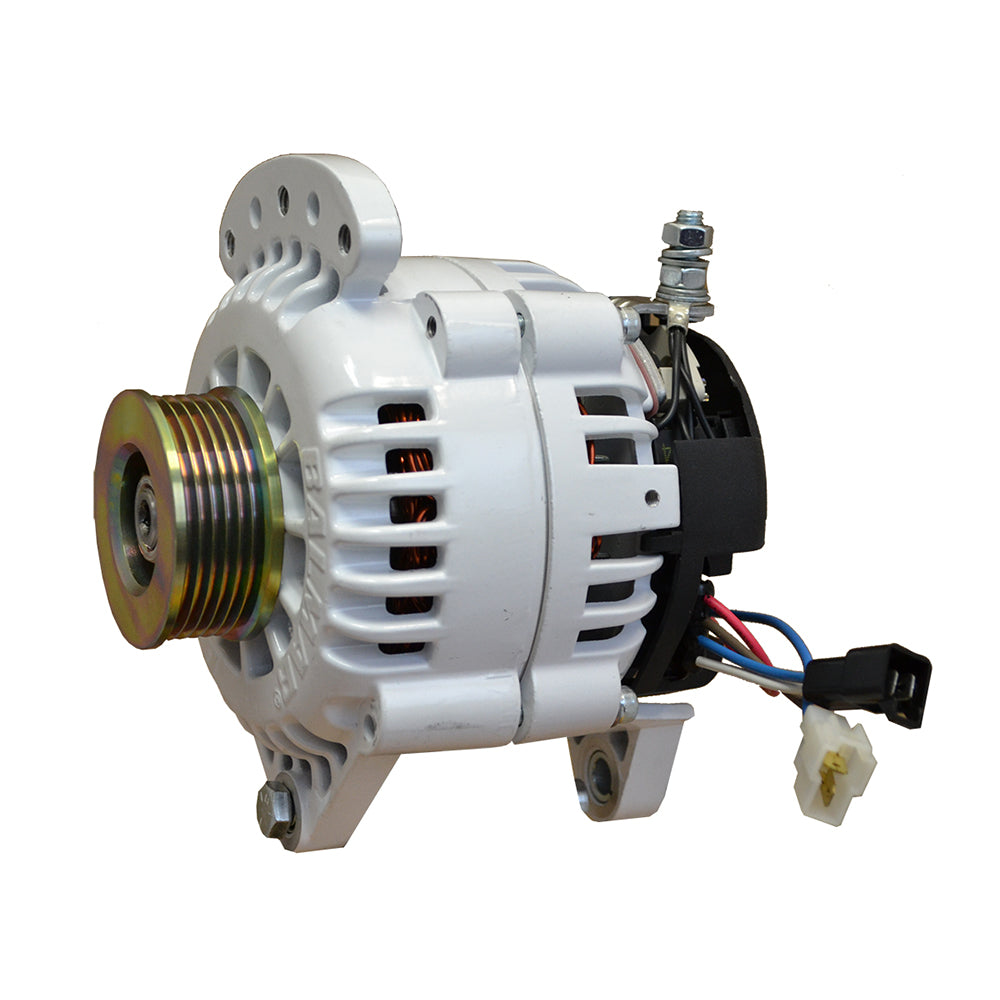

Balmar Alternator 100 Amp 12V 3.15" Dual foot Saddle Single K6 Pulley w/Isolated Grounding

Balmar 6-Series Alternators Designed for Recreational Applications Balmar 6-Series Alternators deliver high-output performance in a compact, small-case package and is available in all four common mounting configurations While all Balmar's high-output alternators are designed and recommended for use with our multi-stage voltage regulators, the 6-Series Alternator utilizes Balmar's Smart Ready Technology. If battery loads are relatively small and your engine is running frequently, the alternator's internal regulator may be sufficient to support your electrical needs without external regulation. If your vessel utilizes larger deep-cycle battery banks or the engine's duty cycle is less frequent (as is the case in most sailing applications), the 6-Series Alternator combines and works seamlessly with Balmar's ARS-5 Voltage Regulator or Max Charge Voltage Regulator. Purchased either individually or as a charging kit, 6-Series Alternators can solve a multitude of charging problems at a reasonable price. All kits come with alternator, regulator and two temperature sensors.

Balmar 60120K6 Attributes

Balmar 60120K6 Features & Benefits

• Balmar’s Top Selling Alternator Line
• 70A, 100A and 120A Versions
• Patented Smart Ready® Technology
• Dual Fan Cooling
• High Airflow Frame
• Maximum RPM: 12,000
• USCG Title 33, ISO, SAE and CE Compliant
• Ideal for Modest Charging Upgrades

Alternator 100 Amp 12V 3.15" Dual foot Saddle Single K6 Pulley with Isolated Grounding

Alternator, 60 Series, 120A, 12V, Saddle Mount (Dual Foot), 3.15in, K6 Serpentine Pulley, Isolated Ground Hitachi-Style Mounting; Typical for Yanmar, Westerbeke, Lehman & Perkins-Sabre Engines.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

"This 12 volt alternator has dual mounting feet and a 120 Amp output and is fitted with a 6 groove serpentine pulley High output 12 volt 120 amp alternator fitted with a K6 pulley. Small case, isolated ground. Yanmar style dual foot mount Externally regulated single output. Patented SmartReady backup internal regulator. Certified ignition protected for gasoline or diesel motors. High volume cooler running dual internal fans Datasheet, dimensions, output curves Tech TipWhen you mount the alternator to the engine the mounting bolt must be the same diameter as all the holes it passes through. If it isn't bushings are available to modify the mounting tabs of the alternator. When you tighten up the mounting bolt the bushing at the back foot of the alternator slides forward to tighten up the gap. At this stage the alternator should be firmly fixed with no wobble. You must get this right or the alternator will become cocked as you tighten up the belt and the resulting misalignment will cause excessive belt wear."
SKU: NVN-83214
MPN: 60-120-K6
UPC: 676205750585
