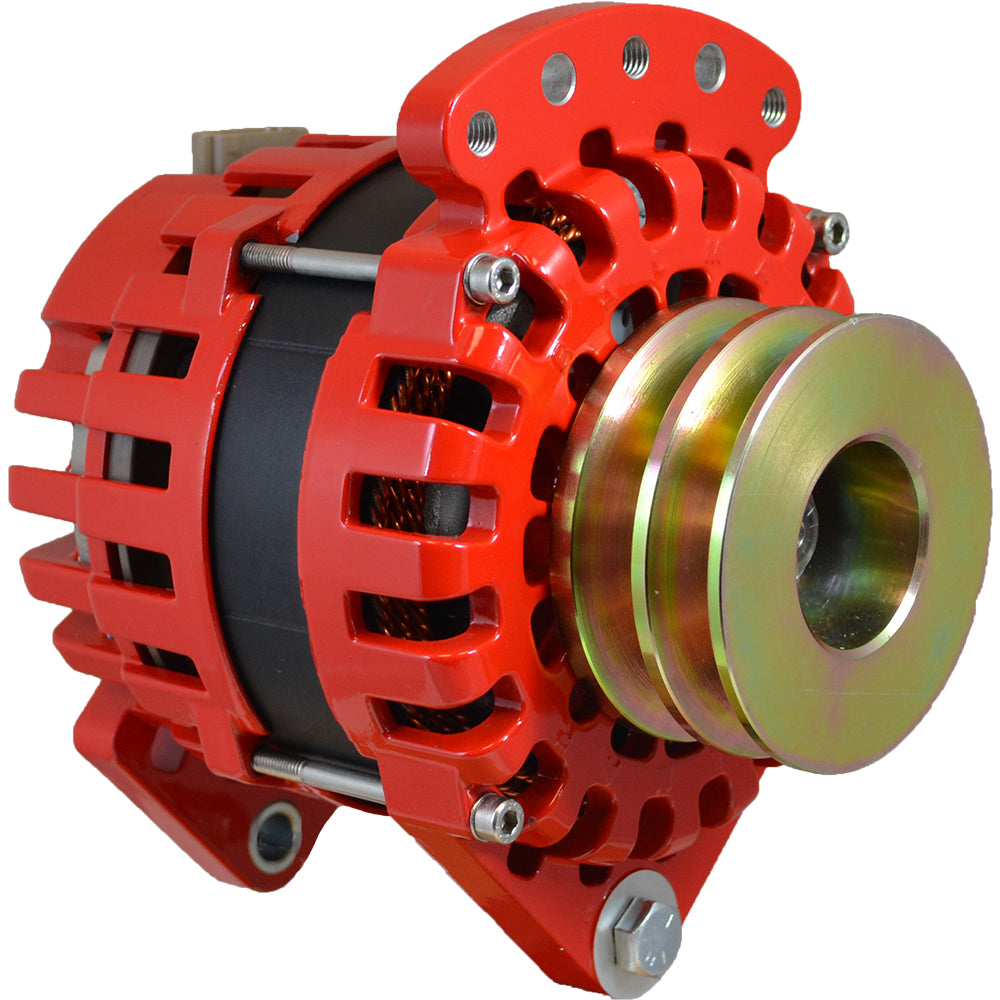

Balmar Alternator 3.15" Dual Foot Saddle Dual V Pulley - 170A - 12V

Alternator 3.15" Dual Foot Saddle Dual V Pulley - 170A - 12V

Balmar offers a wide range of alternator power upgrades designed specifically for marine industry applications.  Balmar installs high reliability bearings, robust rectifier diodes and improved heat-sinking capabilities on all our alternators to ensure improved system reliability combined with increased charging power.

Features:

• 3.15" Dual Foot Saddle
• Dual V Pulley
• 170A
• 12V

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

"The NEW Balmar XT Alternator. This 170 Amp dual foot mount Alternator is fitted with a dual pulley for use with double V Belts. This is a much higher output alternator than can normally be accommodated in a small case size. The innovation that made this possible is the new braided stator design which greatly improves efficiency. The new XT series alternators also include a backup internal regulator for emergency use. See dimensioned drawings for mounting details, the alternator is slightly more chunky than the standard small case alternator but is designed to fit in the same spot. These alternators all require a serpentine belt or dual V-belts and for full output require the MC614-H regulator (not included) because it can deliver the higher field current necessary to drive these them to full power. Alternator is fitted with DV pulley 17-AT-0020 Externally regulated high output small case alternator 12 volt output at 170 Amps, Dual foot 3.15\" ID Yanmar style mount. This is not an isolated ground alternator Requires double V belts Built-in backup regulator Datasheet, dimensions, output curves The Max Charge regulator is required but not included."
SKU: NVN-74943
MPN: XT-DF-170-DV
UPC: 676205500753
