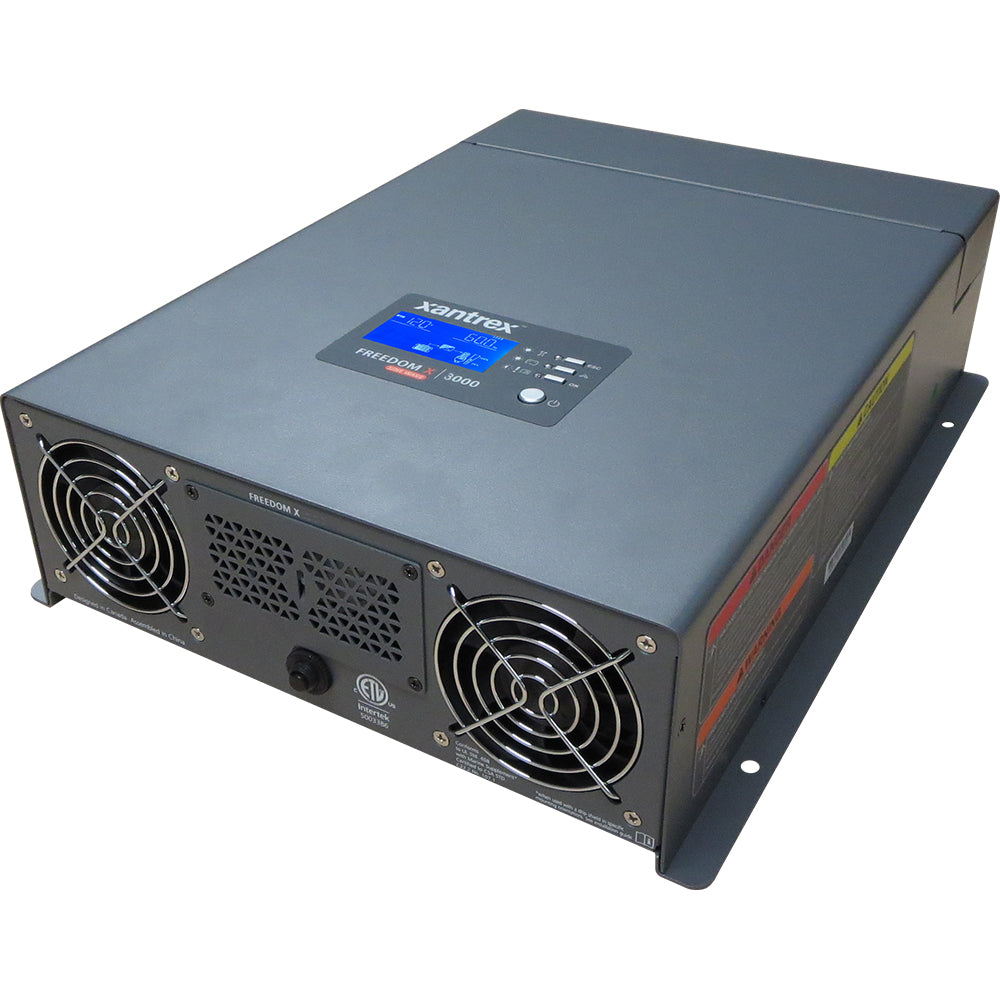

Xantrex Freedom X 3000 True Sine Wave Inverter - Professional 12V DC to 120V AC Power Conversion

Power your marine, RV, or mobile applications with the Xantrex Freedom X 3000 True Sine Wave Inverter, delivering reliable 3000W continuous power with 6000W surge capability. This professional-grade inverter features true sine wave output, built-in 30A automatic transfer switch, and operates efficiently across extreme temperature ranges from -4°F to 104°F, making it the ideal choice for demanding marine and recreational vehicle applications.

Professional Power Management System

• 3000W Continuous Power: True sine wave output delivers clean, stable power for sensitive electronics
• 6000W Surge Capability: Extended 2-second surge rating starts difficult motor loads including refrigerators and microwaves
• Built-in 30A Transfer Switch: Automatic switching between inverter and shore/generator power
• Wide Temperature Operation: Full power output from -4°F to 104°F for all-climate performance
• Ignition Control: Automatic on/off via 12V signal to minimize battery drain

Technical Specifications

Continuous Power: 3000 Watts

Surge Power: 6000 Watts (2 seconds)

Input Voltage: 12V DC (10-18V range)

Output Voltage: 120V AC True Sine Wave

Continuous Current: 25 Amps AC

Peak Efficiency: 91%

Operating Temperature: -4°F to 140°F (-20°C to 60°C)

Dimensions: 15.4" x 10.8" x 4.0"

Advanced Power Performance

True Sine Wave Output:

• Clean Power Delivery: Pure sine wave output identical to shore power
• Sensitive Equipment Safe: Compatible with all electronics and appliances
• Motor Load Optimization: Efficient operation of inductive loads
• Reduced Harmonics: Minimal electrical noise and interference

Extended Surge Capability:

• 2X Power Surge: 6000W surge capacity for 2 seconds
• Motor Starting Power: Handles high inrush current of compressors and pumps
• Appliance Compatibility: Starts refrigerators, microwaves, and power tools
• Reliable Operation: Consistent performance under demanding loads

Integrated 30A Automatic Transfer Switch

• Seamless Power Transfer: Automatic switching between inverter and shore/generator power
• 30A AC Transfer Relay: High-capacity switching for demanding applications
• Intelligent Sensing: Detects when external AC power is present
• Automatic Mode Selection: Switches from invert mode to passthrough automatically
• No Manual Intervention: Completely automatic operation for uninterrupted power
• Fast Transfer Time: Quick switching minimizes power interruption

Advanced Operating Features

Ignition Control System:

• 12V DC Signal Control: Turn inverter on/off via ignition or accessory circuit
• Battery Conservation: Automatic shutdown when vehicle is off
• Parasitic Draw Prevention: Minimizes battery drain during storage
• Smart Operation: Only operates when power is needed

Wide Voltage Input Range:

• 10-18V DC Operation: Functions with varying battery and charging voltages
• High Voltage Alternator Compatible: Works with modern vehicle charging systems
• Low Battery Cutoff: Protects batteries from over-discharge
• Stable Output: Consistent 120V AC regardless of input voltage variations

Professional Installation Design

• Large Wiring Bay: Spacious compartment for easy cable routing and connections
• Quick Connect AC Terminals: Fast, reliable AC input/output wiring
• Hardwire Configuration: Professional permanent installation
• Pre-installed Ground Lug: Proper electrical grounding for safety
• Compact Design: Space-efficient 15.4" x 10.8" x 4.0" footprint
• Ventilation Considerations: Designed for proper cooling airflow

Marine & RV Applications

Marine Vessels:

• House Power Systems: Complete AC power when away from shore power
• Galley Appliances: Microwave, coffee maker, blender, and food processors
• Entertainment Systems: TV, stereo systems, and charging stations
• Navigation Electronics: Laptop computers and marine instruments
• Climate Control: Fans and small air conditioning units

RV & Mobile Applications:

• Off-Grid Power: Complete AC power for boondocking and dry camping
• Kitchen Appliances: Microwave, coffee maker, and small appliances
• Work Applications: Power tools and equipment for mobile work
• Emergency Backup: Reliable power during outages

High-Efficiency Performance

• 91% Peak Efficiency: Minimal power loss during conversion
• ≥85% Full Load Efficiency: Consistent performance under maximum load
• Temperature Compensation: Maintains efficiency across operating temperature range
• Smart Power Management: Optimized power delivery for extended battery life
• Low Idle Current: Minimal standby power consumption

Professional Safety & Certifications

• ETL Listed: Tested to UL 458 safety standards
• Marine Supplement Certified: UL 458 with marine supplement for marine applications
• CSA 107.1 Certified: Canadian Standards Association approval
• FCC Part 15 Compliant: Class A EMI/RFI compliance
• ISO 9001:2015 Certified: Quality management system compliance
• Temperature Protection: Built-in thermal management and protection

Complete Installation Package

• Freedom X 3000 Unit: Complete inverter with transfer switch
• Plastic Bushings: For large DC cable protection and strain relief
• Pre-installed Ground Lug: Proper electrical grounding connection
• Documentation Package: Installation and operation manuals
• Quick Connect Terminals: AC input/output connection hardware

Optional Accessories & Upgrades

• GFCI Outlet Options: Ground fault protection for specific applications
• Remote Control Panel: Optional Bluetooth remote monitoring and control
• External Transfer Switch: Additional transfer switch options
• Battery Monitoring: Compatible with external battery management systems
• AC Distribution Panels: Professional AC power distribution

Why Choose Xantrex Freedom X 3000?

• Proven Technology: Xantrex's 25+ years of power electronics expertise
• Professional Grade: Designed for commercial and recreational marine applications
• True Sine Wave Output: Clean power for all electronics and appliances
• Integrated Transfer Switch: Complete power management solution
• Extreme Temperature Operation: Reliable performance in all climates
• Easy Installation: Professional-friendly design with quick connections

Frequently Asked Questions

What is the difference between true sine wave and modified sine wave inverters?

True sine wave inverters produce clean, smooth power identical to shore power, making them compatible with all electronics and appliances. This eliminates potential issues like motor noise, electronic interference, and reduced appliance efficiency that can occur with modified sine wave inverters.

How does the automatic transfer switch work?

The built-in 30A transfer switch automatically senses when shore power or generator power is available and seamlessly switches the load from the inverter to the external power source. This provides uninterrupted power and automatically charges batteries when external power is present.

Can this inverter start a refrigerator or microwave?

Yes, the Freedom X 3000 features an extended surge rating of 6000W for 2 seconds, specifically designed to start motor loads like refrigerators, microwaves, and other appliances that require high starting current.

What battery bank size is recommended for this inverter?

For optimal performance, a minimum of 400-600 amp-hours of battery capacity is recommended. The actual requirement depends on your power consumption and desired runtime. At full 3000W load, the inverter draws approximately 288A DC current.

Is this inverter suitable for marine environments?

Yes, the Freedom X 3000 is certified to UL 458 with marine supplement and operates reliably in the harsh marine environment with humidity up to 95% RH (non-condensing). It's designed specifically for marine, RV, and mobile applications.

Xantrex™ Technology has been manufacturing quality advanced power electronic products for the commercial, recreational vehicle, marine, automotive, military and consumer markets for more than 25 years. Xantrex has one of the widest assortments of inverters, inverter/chargers, battery chargers, backup power and accessories for a variety of entry-level to high-end applications.

Xantrex 8173000 Attributes

• Output Voltage: 120 Volt AC
• Input Voltage: 12 Volt DC
• Continuous Output Power (W): 3000 Watt
• Peak Output Power (W): 6000 Watt
• Ampere Rating: 25 Amp
• Efficiency: 91 Percent
• Length (IN): 15.4 Inch
• Width (IN): 12 Inch
• Height (IN): 4 Inch
• Remote On/Off Capable: No
• With USB Port: No
• With Volt/Watt Meter: No
• With Short Circuit: No
• With Reverse Battery Protection: No
• With Thermal Protection: No
• With Battery Cables: No
• With Built-In Charger: No
• With Fuse: No

Xantrex 8173000 Features & Benefits

• Designed For Performance And Durability
• Features A Highly-Efficient
• IS0 9001:2015 Certified
• Certified To UL, CSA Or CE Standards
• Limited 90 Day Supplier Warranty

Xantrex 8173000 Installation Instructions

• Freedom-X-Inverter-Owners-Guide-975-0787-01-01_Rev-F_ENG.pdf

Xantrex 8173000 Warranties

• Warranty_817-1000.pdf

Xantrex 8173000 Technical Bulletins

• 20201222_FREEDOMX_Datasheet-1.pdf

Freedom X 3000 Truesine Inverter - 120AC/12DC Hardwire

True sine wave 120 VAC inverter with built-in transfer switch. Designed for recreational and commercial applications.

The Freedom X inverter offers premium performance in a lightweight compact package. It cranks out full output from -4°F - 104°F for operation in all climate temperatures. The extended surge rating of the Freedom X makes it ideal to start difficult loads including fridge and microwave. The quick connect terminals at AC IN/OUT make installation a breeze.

The Freedom X has become a popular choice for boaters in a short span of time. Xantrex has now added another product to this series — Freedom X 3000, a 3000-watt pure sine wave inverter with built-in 30A transfer relay. The Freedom X 3000 delivers full output up to 40°C/104°F with a 2 second surge of 6000 watts. The Freedom X 3000 features a large wiring bay with quick connect AC terminals for fast, reliable & easy wiring.

Features:

• Extended Surge Rating: Surges to 2X continuous power for 2 seconds for motor loads
• True Sine Wave AC Power: For operation of sensitive and motor loads
• Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
• Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis
• Built-in 30A AC Transfer Relay: Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power (shore or generator). The unit also automatically switches from invert mode to charge mode
• Quick Installation: Huge wiring bay for easy access and quick connect AC in/out terminals for fast & easy wiring

Specifications:

• Inverts: 12 Volt DC To 120 Volt AC
• Continuous Output Power (W): 3000 Watt
• With Volt/Watt Meter: No
• With Thermal Protection: No
• With Battery Cables: No
• With Fuse: No
