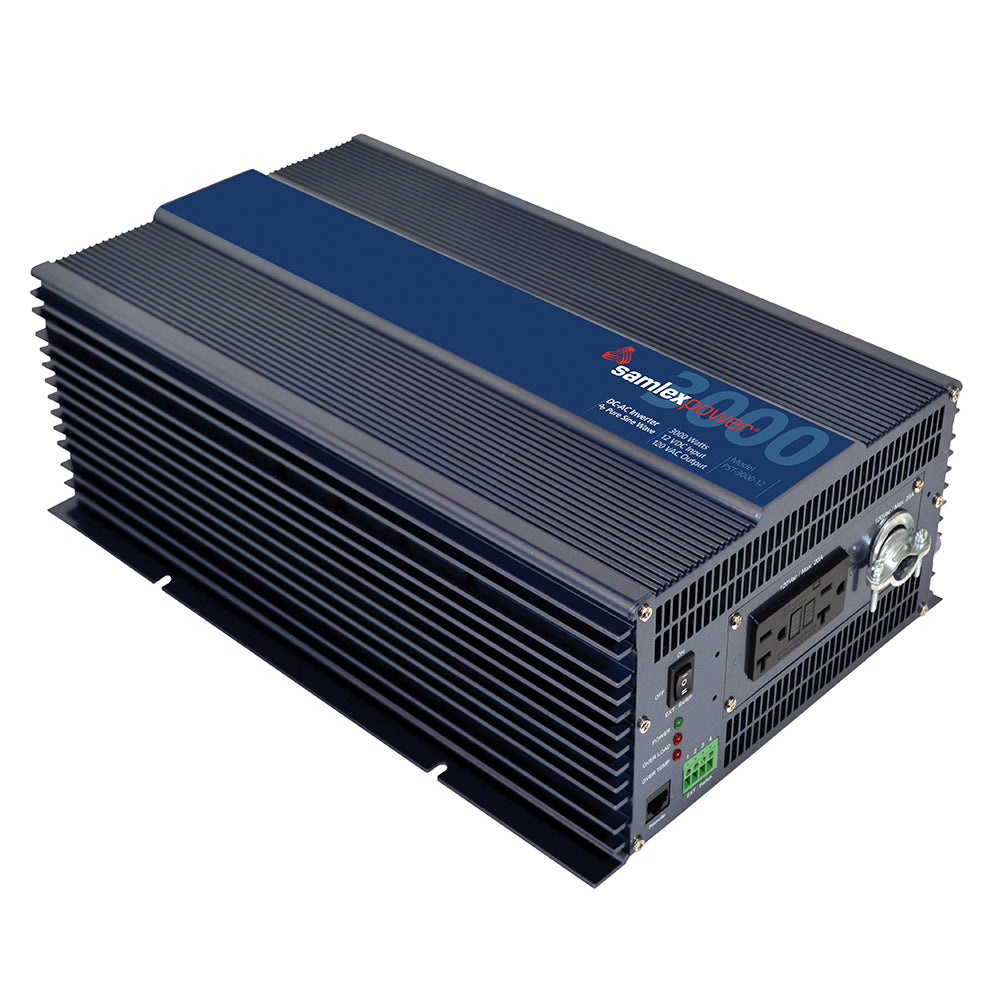

Samlex 3000W Pure Sine Wave Inverter - 12V

Proven extremely reliable in the field for over 10 years. PST’s high frequency design provides clean and reliable AC power identical to household electricity.

Samlex America PST300012 Attributes

• Output Voltage: 120 Volt AC
• Input Voltage: 12 Volt DC
• Continuous Output Power (W): 3000 Watt
• Peak Output Power (W): 6000 Watt
• Ampere Rating: 25 Amp
• Number Of AC Outlets: 2
• Length (IN): 17.97 Inch
• Width (IN): 10.35 Inch
• Height (IN): 5.7 Inch
• Remote On/Off Capable: No
• With USB Port: Yes
• With Volt/Watt Meter: No
• With Short Circuit: Yes
• With Reverse Battery Protection: Yes
• With Thermal Protection: No
• With Battery Cables: No
• With Built-In Charger: No
• With Fuse: No

Samlex America PST300012 Features & Benefits

• Quiet Operation – Temperature Controlled Fan Reduces Energy Consumption
• Extremely Low Interference With Other Devices
• GFCI Protected Outlets
• Low Idle Power Draw
• Suitable For Heavy Duty Loads, Long Periods Of Continuous Operation And For Emergency Back Up
• Wide Operating DC Input Range Compatible With New High Voltage Alternators
• Universal Protection Circuit: Low Voltage, Over Voltage, Over Temperature, Over Load And Short Circuit
• Wide Operating Temperature Range
• Hardwire Capable
• Limited 2 Year Warranty

Samlex America PST300012 Installation Instructions

• 11001-PST-3000-12-24-1221_Lrez.pdf

Samlex America PST300012 Technical Bulletins

• 12001-PST-3000-12-24-1221.pdf

3000W Pure Sine Wave Inverter - 12V

PST Series (120 VAC)

This high efficiency pure sine inverter converts 12 Volts DC to 3000 Watts of AC power at 120 Volts, 60 Hz. Features include temperature controlled cooling, low interference, wide temperature operating range, overload protection, low battery alarm / shut down & low idle power draw. AC power is available from dual NEMA-20R GFCI outlets on the front panel, the unit is also hard wire capable. Safety certified to UL and CSA standards, FCC Compliant.

Optional LCD remote control, model RC-300.

Features:

• High efficiency & low RF emissions
• Can be hard wired
• 2x Surge
• Wide DC input range
• Dual GFCI Protected Outlets
• Wide temperature operating range -20 to +40°C / -4 to +104°F
• Temperature controlled cooling fan
• Low idle power draw
• Remote Input – Use to turn inverter ON or OFF with ignition start or any other Remote ON/OFF switch
• Optional LCD remote control, model RC-300
• UPC – Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit
• Safety certified to UL & CSA standards, FCC compliant

Specifications:

• Input: 12 VDC
• Output: 120 VAC
• Watts: 3000 Watts
• Remote Control: RC-300 Optional
• Weight: 21.6 (lbs)
• Weight: 9.8 (kg)
• Dimensions: 10.35 x 17.97 x 5.71
• Dimensions: 263 x 456.5 x 145 (mm)
• Safety: UL, CSA
• Warranty: 2 Year Limited

Applications:

• Service vehicles
• Mobile Offices
• Boats
• Recreation Vehicles, Camping
• Telecommunication
• Field work / Construction sites
• Solar power systems
• Emergency backup power
• Home electronics: TV, VCR, video games
• Computers, printers

This high-efficiency sinusoidal inverter converts 12 volts direct current to 120 volts and 60 Hz alternating current. Its functions include temperature controlled cooling, low interference, wide temperature operating range, overload protection, low battery alarm/shutdown and low idle power consumption below 1 Amp. AC power can be obtained from the two NEMA-20R GFCI sockets on the front panel, and the device also has a hard-wiring function. It has passed UL and CSA standard safety certification, and complies with FCC.
SKU: NVN-67175
MPN: PST-3000-12
UPC: 622988072420
