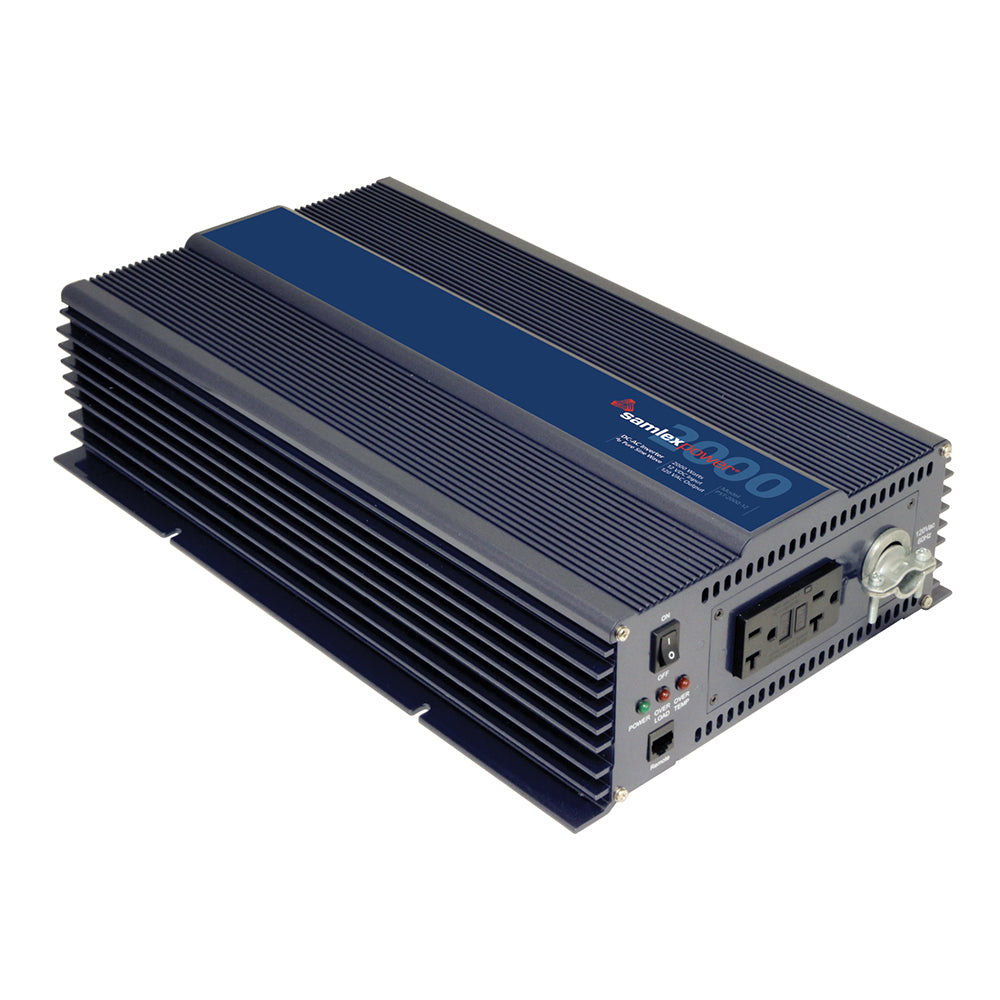

Samlex 2000W Pure Sine Wave Inverter - 12V
Samlex 2000W Pure Sine Wave Inverter - 12V — Product description
This high efficiency DC to AC inverter converts 12 Volt DC to 2000 Watts of pure sine-wave AC power at 120 Volt, 60 Hertz. The unit comes with pin-type battery cable lugs. Features include overload protection, low battery alarm / shut down, low idle power draw of less than 1 Ampere. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel. Safety certified to UL standards.
Samlex America PST200012 Attributes
- Output Voltage: 120 Volt AC
- Input Voltage: 12 Volt DC
- Continuous Output Power (W): 2000 Watt
- Peak Output Power (W): 3500 Watt
- Ampere Rating: 16.7 Amp
- Efficiency: 85 Percent
- Number Of AC Outlets: 2
- Length (IN): 18.43 Inch
- Width (IN): 10.35 Inch
- Height (IN): 4.16 Inch
- Remote On/Off Capable: No
- With USB Port: No
- With Volt/Watt Meter: No
- With Short Circuit: Yes
- With Reverse Battery Protection: Yes
- With Thermal Protection: No
- With Battery Cables: No
- With Built-In Charger: No
- With Fuse: No
Samlex America PST200012 Features & Benefits
- High Efficiency. Can Be Hard Wired
- Temperature Controlled Cooling Fan - Reduces Energy Consumption
- Low Interference
- Commercial Grade Design Suitable For Heavy Duty Loads, Long Periods Of Continuous Operation And For Emergency Back Up
- Universal Protection Circuit: Low Voltage, Over Voltage, Over Temperature, Over Load And Short Circuit
- Low Idle Power Draw. Dual GFCI Protected AC Outlets
- Safety Certified To UL Standards, FCC Compliant
- Limited 2 Year Warranty
Samlex America PST200012 Installation Instructions
Samlex America PST200012 Technical Bulletins
2000W Pure Sine Wave Inverter - 12V
PST Series (120 VAC)
This high efficiency DC-AC inverter converts 12 Volts DC to 2000 Watts of pure sine-wave AC power at 120 Volts, 60 Hz. The unit comes with pin-type battery cable lugs. Features include overload protection, low battery alarm / shut down, low idle power draw of less than 1 Amp. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel. Safety certified to UL standards.
Features:
- High efficiency
- Can be hard wired
- Temperature controlled cooling fan – reduces energy consumption
- Low interference
- Wide operating DC input range: 10.7 - 16.5 VDC
- Commercial grade design suitable for heavy duty loads, long periods of continuous operation & for emergency back up
- UPC – Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit
- Low idle power draw
- Dual GFCI protected AC outlets
- Optional remote control (sold separately): Model RC-200
- Safety certified to UL standards, FCC compliant
Specifications:
- Input: 12 VDC
- Output: 120 VAC
- Watts: 2000
- Surge: 3500 Watts
- Remote Control: RC-200 sold separately
- Weight: 15.6 (lbs)
- Weight: 7.1 (kg)
- Dimensions: 10.35 x 18.43 x 4.16 (in)
- Dimensions: 263 x 468.2 x 105.6 (mm)
- Safety: ETL to UL Standard
- Warranty: 2 Year Limited
Applications:
- Service vehicles
- Mobile Offices
- Boats
- Recreation Vehicles, Camping
- Telecommunication
- Field work / Construction sites
- Solar power systems
- Emergency backup power
- Home electronics: TV, VCR, video games
- Computers, printers
This high-efficiency DC-AC inverter converts 120 V, 60 Hz, 12 V DC into 2000 W pure sine wave AC power. The device has pin-type battery cable lugs. Features ...
SKU: NVN-67174
MPN: PST-2000-12
UPC: 622988072215
Technical specifications
| Brand | Samlex America |
| Model | Samlex 2000W Pure Sine Wave Inverter - 12V |
| SKU / MFR# | 67174 |
