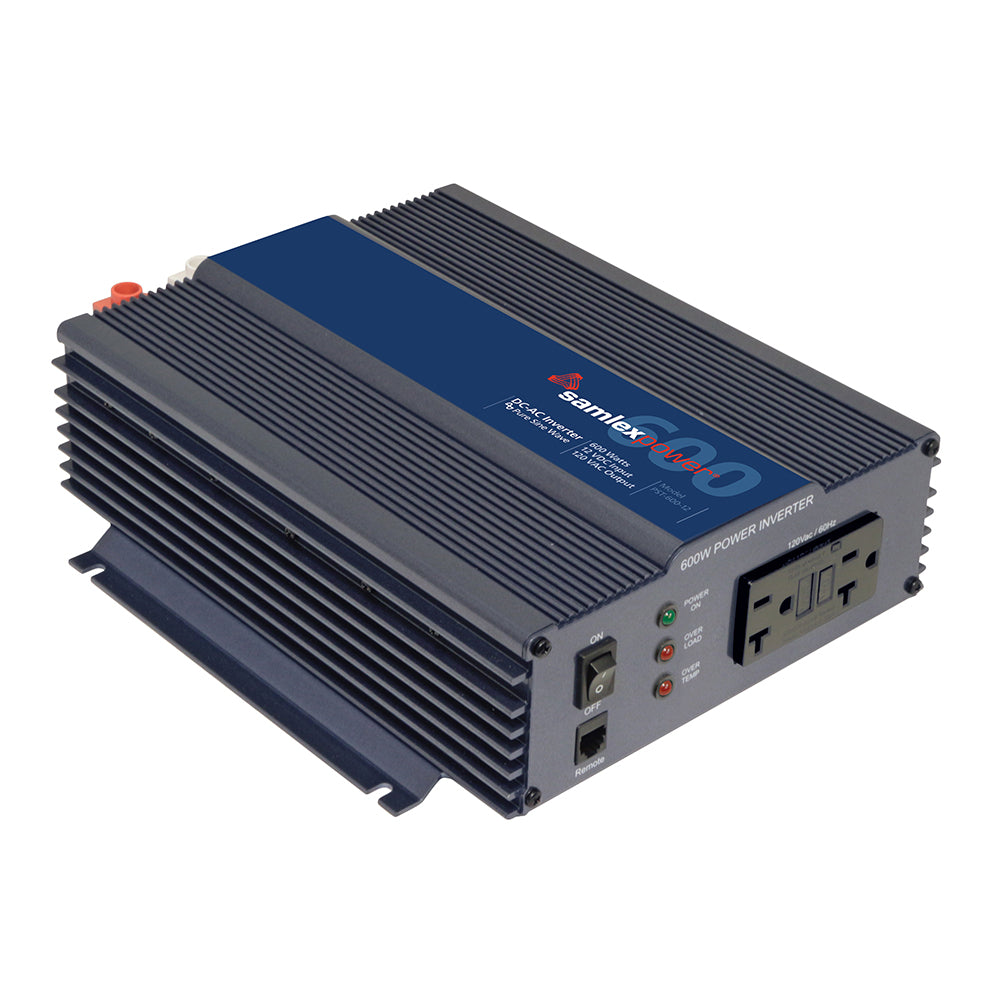

Samlex 600W Pure Sine Wave Inverter - 12V
Samlex 600W Pure Sine Wave Inverter - 12V — Product description
This high efficiency DC to AC inverter converts 12 Volt DC to 600 Watts of pure sine-wave AC power at 120 Volt, 60 Hertz. The unit comes with pin-type battery cable lugs. Features include built-in electronic GFCI, overload protection, low battery alarm / shut down, low idle power draw of less than 0.5 Ampere. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel. Safety certified to UL standards.
Samlex America PST60012 Attributes
- Output Voltage: 120 Volt AC
- Input Voltage: 12 Volt DC
- Continuous Output Power (W): 600 Watt
- Peak Output Power (W): 1000 Watt
- Ampere Rating: 5.1 Amp
- Efficiency: 85 Percent
- Number Of AC Outlets: 2
- Length (IN): 10.87 Inch
- Width (IN): 9.47 Inch
- Height (IN): 3.23 Inch
- Remote On/Off Capable: No
- With USB Port: No
- With Volt/Watt Meter: No
- With Short Circuit: Yes
- With Reverse Battery Protection: Yes
- With Thermal Protection: No
- With Battery Cables: No
- With Built-In Charger: No
- With Fuse: No
Samlex America PST60012 Features & Benefits
- High Efficiency. Temperature Controlled Cooling Fan - Reduces Energy Consumption
- Low Interference
- Commercial Grade Design Suitable For Heavy Duty Loads, Long Periods Of Continuous Operation And For Emergency Back Up
- Universal Protection Circuit: Low Voltage, Over Voltage, Over Temperature, Over Load And Short Circuit
- Dual GFCI Protected AC Outlets
- Safety Certified To UL Standards, FCC Compliant
- Limited 2 Year Warranty
Samlex America PST60012 Installation Instructions
Samlex America PST60012 Technical Bulletins
600W Pure Sine Wave Inverter - 12V
PST Series (120 VAC)
This high efficiency DC-AC inverter converts 12 Volts DC to 600 Watts of pure sine-wave AC power at 120 Volts, 60 Hz. The unit comes with pin-type battery cable lugs. Features include built-in electronic GFCI, overload protection, low battery alarm / shut down, low idle power draw of less than 0.5 Amps. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel. Safety certified to UL standards.
Features:
- High efficiency
- Temperature controlled cooling fan – reduces energy consumption
- Low interference Wide operating DC input range: 10.7 - 16.5 VDC
- Commercial grade design suitable for heavy duty loads, long periods of continuous operation & for emergency back up
- UPC – Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit
- Low idle power draw
- Dual GFCI protected AC outlets
- Optional remote control (sold separately): Model RC-15A
- Comes with pin-type battery cable lugs
- Safety certified to UL standards, FCC compliant
Specifications:
- Input: 12 VDC
- Output: 120 VAC
- Watts: 600
- Surge: 1000 Watts
- Remote Control: RC-15A sold separately
- Weight: 5.9 (lbs)
- Weight: 2.7 (kg)
- Dimensions: 9.37 x 10.87 x 3.23 (in)
- Dimensions: 238 x 276.2 x 82 (mm)
- Safety: ETL to UL Standard
- Warranty: 2 Year Limited
Applications:
- Service vehicles
- Mobile Offices
- Boats
- Recreation Vehicles, Camping
- Telecommunication
- Field work / Construction sites
- Solar power systems
- Emergency backup power
- Home electronics: TV, VCR, video games
- Computers, printers
Samlex PST-600-12 is a high-efficiency 600 watt 12 volt pure sine inverter, which can convert 12 volt DC to 120 volt AC at 60 Hz, and replaces PST-60S-12A. check the detail information...
SKU: NVN-67171
MPN: PST-600-12
UPC: 622988072154
