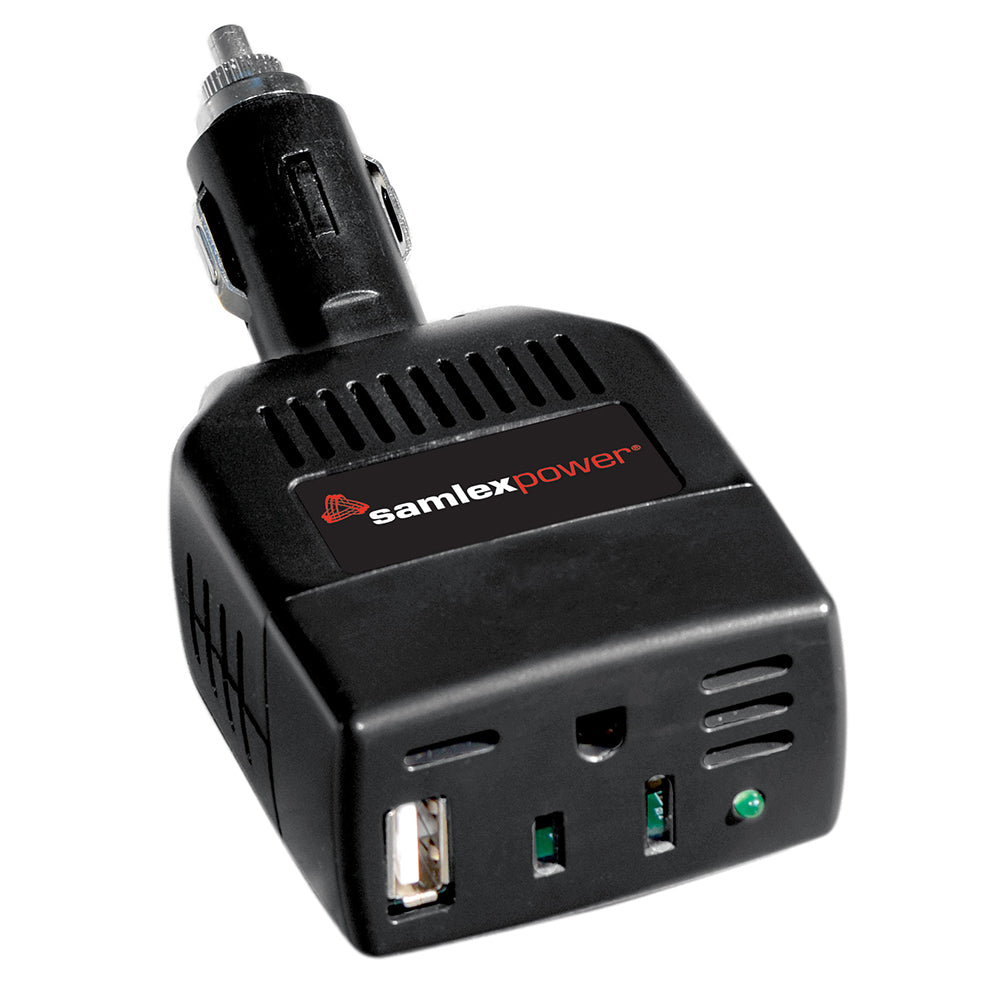

Samlex 100W Modified Sine Wave Inverter - 12V

SAM Series low interference, high efficiency modified sine wave DC to AC inverters convert 12 Volt DC to 115 Volt AC at an output frequency of 60 Hertz. Connect through any 12 Volt lighter socket in your car, boat, truck or RV. Includes one three prong outlet and a USB Charging Port.

Samlex America SAM10012 Attributes

• Output Voltage: 120 Volt AC
• Input Voltage: 12 Volt DC
• Continuous Output Power (W): 100 Watt
• Peak Output Power (W): 200 Watt
• Efficiency: 90 Percent
• Number Of AC Outlets: 1
• Length (IN): 5 Inch
• Width (IN): 2-1/2 Inch
• Height (IN): 1-1/2 Inch
• Remote On/Off Capable: No
• With USB Port: Yes
• With Volt/Watt Meter: No
• With Short Circuit: Yes
• With Reverse Battery Protection: No
• With Thermal Protection: Yes
• With Battery Cables: No
• With Built-In Charger: No
• With Fuse: No

Samlex America SAM10012 Features & Benefits

• Light Weight, Compact, Highly Portable
• Load Controlled Cooling Fan
• Universal Protection Circuit - Thermal, Battery, Overload, Short Circuit, Earth Fault
• Soft Start Technology
• Cool Surface Technology
• Safety Certified To UL Standards
• Limited 2 Year Warranty

Samlex America SAM10012 Installation Instructions

• 11002-SAM-100-12-0815_Hrez.pdf

Samlex America SAM10012 Technical Bulletins

• 12002-SAM-100-12-0815_Hrez.pdf
• 41600-SAM-Series-0520.pdf

100W Modified Sine Wave Inverter - 12V

SAM Series low interference, high efficiency modified sine wave DC-AC inverters convert 12 VDC to 115 VAC at an output frequency of 60 Hz. Connect through any 12V lighter socket in your car, boat, truck or RV. Includes one three prong outlet and a USB Charging Port. ETL Safety Listed.

Features:

• Light weight, compact, highly portable
• Easy to install and operate
• 2.1 Amp USB Port (compatible with all new release smart phones)
• Fan cooled
• Cool surface technology
• Soft start technology
• Low battery input alarm
• Universal protection circuit – thermal, battery, overload, short circuit & earth fault

Specifications:

• Input: 12 VDC
• Output: 115 VAC
• Watts: 100Watts
• Outlets: 1
• Weight: 0.3 (lbs)
• Weight: 0.14 (kg)
• Dimensions: 2.36 x 5.08 x 1.44 (in)
• Dimensions: 60 x 129 x 36.5 (mm)
• Safety: ETL
• Warranty: 2 Year Limited

Applications:

• Laptops
• Cell Phones
• Cameras
• MP3 Players
• Handheld Video Games
• Lights/Lamps
• Portable Stereos
• CD/DVD Players

Product Overview A low-interference, high-efficiency sine wave DC-AC inverter, just plug it into any 12V cigarette lighter socket, very suitable for cars, automobiles, automobiles, automobiles, automobiles, automobiles, automobiles, etc. .
SKU: NVN-67136
MPN: SAM-100-12
UPC: 622988078064
