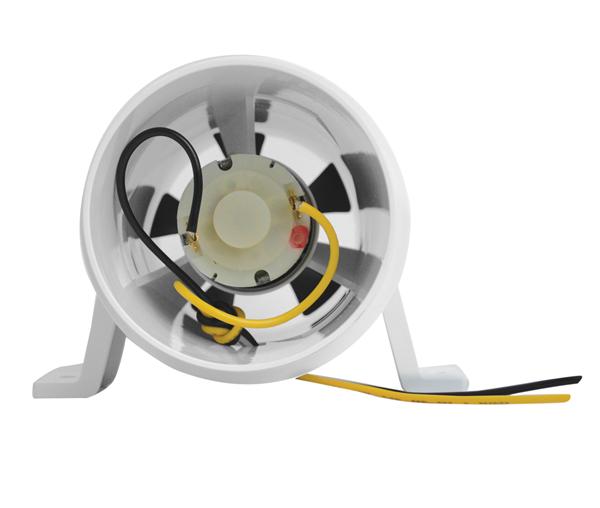

Attwood Turbo 3000 Series In-Line Blower - 12V - White

The first vane axial-flow fan bilge blowers designed using aerospace technology to maximize performance. No other bilge blowers in the industry provide such powerful system output at such a low power input in a compact size. Patented in-line design – provides ventilation for engine compartments, galleys, bilges, and heads. Mounting feet allow vertical or horizontal installation in confined spaces. Install with #10 fasteners. Individual carton includes 2 tie straps. All are CE certified. 16-gauge tinned and caulked copper wire leads with optional MP1 molded rubber connectors.

Attwood Marine 17314 Attributes

• Compatibility: 3 Inch Inside Diameter Ventilation Hose
• Flow Rate: 120 Cubic Feet Per Minutes
• Voltage Rating: 12 Volt
• Ampere Rating: 2.6 Amp
• Length: 5-1/16 Inch
• Width: 3-5/8 Inch
• Color: White
• Material: Plastic
• With Tie Straps: Yes
• With Fastener: Yes

Attwood Marine 17314 Features & Benefits

• Nickel-Plated Motor Can For Corrosion Resistance
• Stiffening Ribs To Reduce Housing Distortion
• Motor Cap To Seal Wires And Motor For Water Resistance
• Five-Blade Fan Maximize Airflow And Efficiency
• Tabs In Intake And Exhaust Hold Ventilation Hose And Clamp Firmly In Place
• Low Amp Draw Motor For Longer Blower And Battery Life
• Built-In Mounting Feet Allow Easy Vertical Or Horizontal Install
• Limited 3 Year Warranty

Attwood Marine 17314 Installation Instructions

• 69465-turboin-linebilgeblowers-instr-ra.pdf

Attwood Marine 17314 Warranties

• Attwood Warranty 2009.pdf

Attwood Marine 17314 Technical Bulletins

• 1731_BUl.pdf

Turbo 3000 In-Line Series Blower
Part #: 1731-4

The first vane axial-flow fan bilge blowers designed using aerospace technology to maximize performance. No other bilge blowers in the industry provide such powerful system output at such a low power input in a compact size.

Patented in-line design - provides ventilation for engine compartments, galleys, bilges, and heads. Mounting feet allow vertical or horizontal installation in confined spaces. Install with #10 fasteners. Individual carton includes 2 tie straps. All are CE certified. 16-gauge tinned and caulked copper wire leads with optional MP1 molded rubber connectors. Improved 3" design.

Features:

• Nickel-plated motor can for corrosion resistance

• Stiffening ribs to reduce housing distortion

• Five-blade fan maximize airflow and efficiency

• Tabs in intake and exhaust hold ventilation hose/clamp firmly in place

• Low amp draw motor for longer blower and battery life

• Built-in mounting feet allow easy vertical or horizontal install

The patented inline design û provides ventilation for the engine compartment, galley, bilge and roof. The mounting feet can be installed vertically or horizontally in a narrow space. ...
SKU: NVN-43922
MPN: 1731-4
UPC: 022697173140
