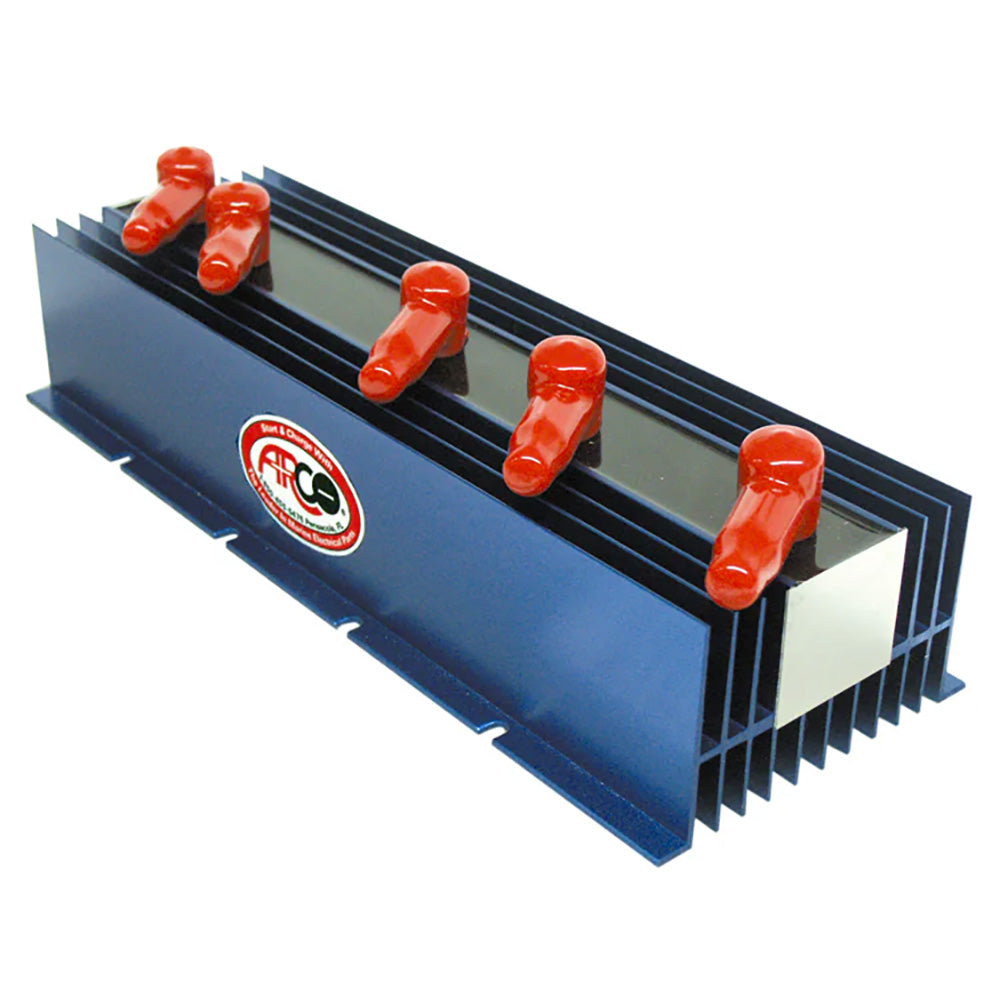

ARCO Marine BI-3203 Battery Isolator f/10-350A Alternators on 12, 24 or 32V Negative Ground Systems

BI-3203 Battery Isolator for 10-350A Alternators on 12, 24 or 32V Negative Ground Systems

The Arco Marine BI-3203 is an inboard/outboard battery isolator that can handle 2 alternators, 3 batteries, and 120A max. Rated for use with 10 to 350-amp alternators on 12, 24, or 32-volt negative ground systems.

Features:

• 2 alternators, 3 batteries, 120A max
• Inboard and outboard battery isolators are solid-state devices that allow electrical current to flow in one direction ONLY, thus permitting the alternator to be connected directly to two batteries without fear of one higher-charged battery discharging into the lower-charged battery.
• Both batteries are always being charged automatically, in proportion, to their needs whenever the engine is running.
• When battery isolators are used in conjunction with selector switches, it is not necessary to change the switch position to provide for charging of both batteries.
• Isolators provide proportioning of the output or charging current on the alternator to the batteries as required, regardless of switch position.

NOTE: Battery Isolators cannot be used on 12 volt charging systems with 24 volt trolling motors or newer outboard engines with rectifier-regulator charging systems.

SKU: NVN-106597
MPN: BI-3203
UPC:
