Aqualuma 9 Series Gen 5 LED Control Box
Aqualuma 9 Series Gen 5 LED Control Box — Product description

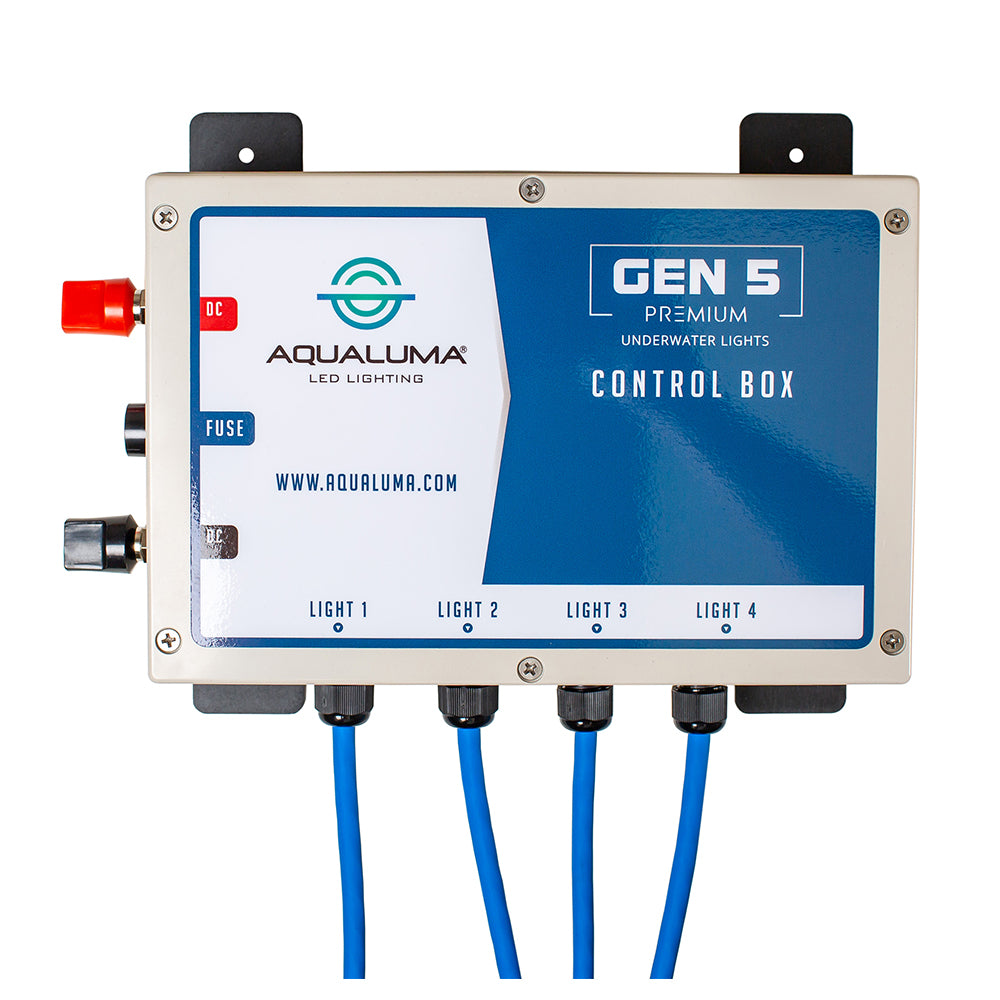

9 Series Gen 5 LED Control Box
The GEN 5 Control Box is built to control up to four lights at anytime. If more GEN 5 lights are installed, extra control boxes will be required. Depending on the number of purchased fixtures the Control Box is supplied with IP68 rated connectors which can only be connected one way to the light engines.
The GEN 5 Control Box should be mounted with cable glands at the bottom of the box (this allows moisture run off). The Control Box should be mounted high enough that minor bilge flooding wont submerge the box. The Control Box carries an IP65 rating (IP65 rated as “dust tight” and protected against water projected from a nozzle). The box is to be mounted using the holes in the metal mounting bracket with the supplied grommets and must be installed between mounting surface and mounting plate.
Features:
- DC + Connection
- DC - Connection
- Mounting Bracket
- Rubber Grommets
- Cable Glands on Bottom of Box
9 series Gen 5 LED control box-GEN 5 control box can control up to four lights at any time. If more GEN 5 lights are installed, additional control boxes will be installed.
SKU: NVN-81222
MPN: AQL9CB-G5
UPC:
Technical specifications
| Brand | Aqualuma LED Lighting |
| Model | Aqualuma 9 Series Gen 5 LED Control Box |
| SKU / MFR# | 81222 |
