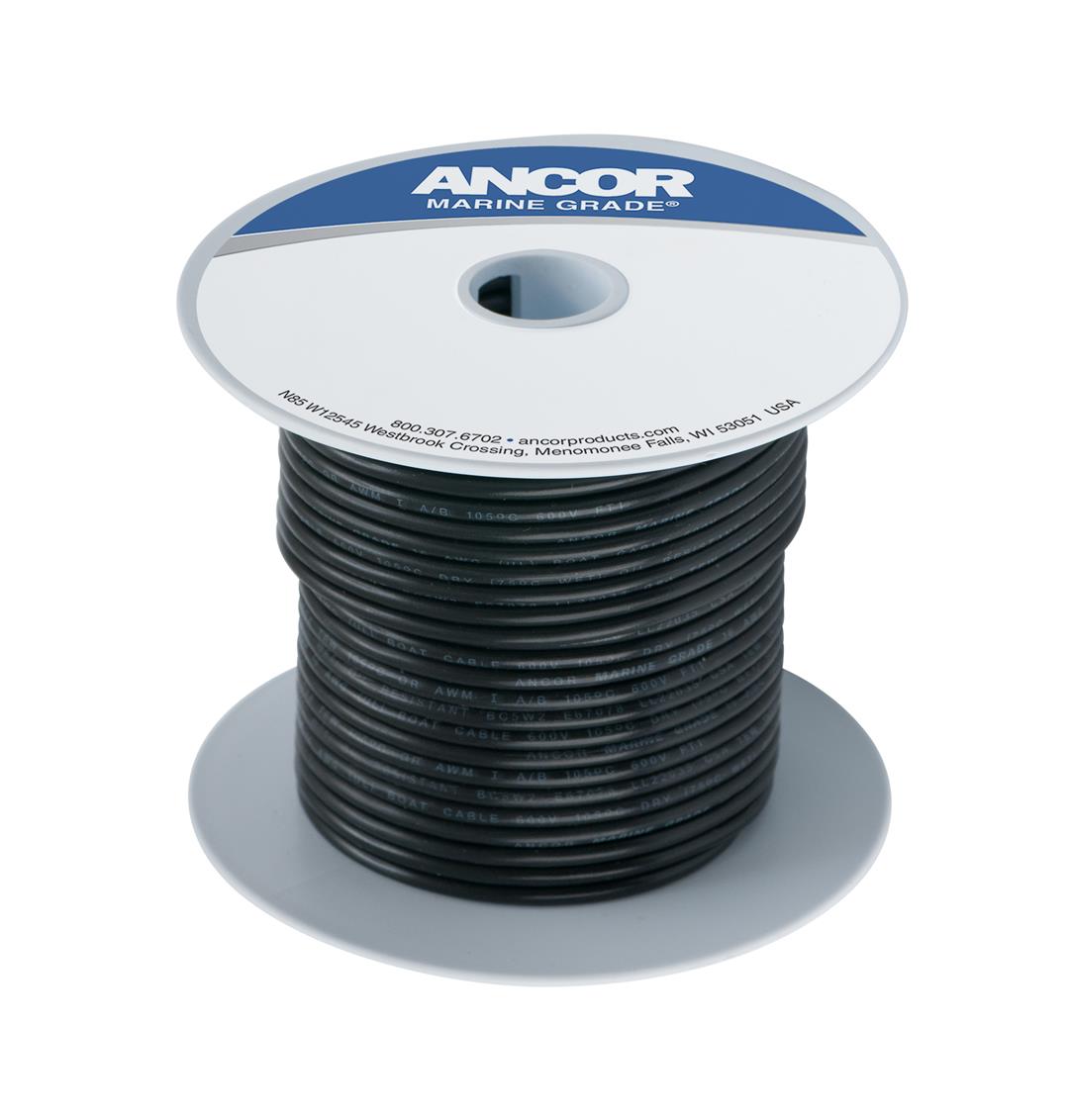

Ancor Black 16 AWG Tinned Copper Wire - 25'
Ancor Black 16 AWG Tinned Copper Wire - 25' — Product description
Ancor Marine Grade ™ cable are designed for the harsh marine environment. Their tinned copper construction protects against corrosion and electrolysis while providing the most reliable conductivity. Ancor Marine Grade wire products are the longest lasting and most rugged, exceeding UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46) standards. They are constructed with premium vinyl insulation that is rated at 600 volts, 105 Degree Celsius dry and 75 Degree Celsius wet, stays flexible even in extreme cold and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation.
Ancor 182003 Attributes
- Construction: Stranded Conductor
- Gauge: 16 Gauge
- Length: 25 Feet
- Color: Black
- Style: Spool
- Conductor Material: Tinned Copper
- Insulation Material: PVC
- Certification: UL/ CSA/ ABYC/ US Coast Guard Certified
Ancor 182003 Features & Benefits
- Ultra Flexible Stranding Resists Fatigue Due To Vibration And Flexing
- Proprietary Premium Vinyl Insulation Stays Flexible Even In Extreme Cold Negative 40 Degree Celsius
- Resists Salt Water, Battery Acid, Oil, Gasoline, Ultra-Violet Radiation, Heat And Abrasion
- Rated At 600 Volts, 105 Degree Celsius Dry And 75 Degree Celsius Wet
- Exceeds All UL 1426, US Coast Guard Charter Boat And ABYC Standards
- No Supplier Warranty
Ancor 182003 Technical Bulletins
Black 16 AWG Tinned Copper Wire - 25'
Ancor Marine Grade wire products are the longest lasting and most rugged available, exceeding UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46) standards. They are constructed with premium vinyl insulation that is rated at 600V, 105°C dry and 75°C wet, stays flexible even in extreme cold (-40°F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation. Highest quality ultra flexible (Type 3) tinned copper stranding provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing.
Wire Gauge: 16 AWG
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
ANCORs marine main cables are manufactured in accordance with American wire gauge standards, which means that there are 12 more tinned copper conductors than SAE wires. Our high-quality vinyl insulation materials can provide...
SKU: NVN-60348
MPN: 182003
UPC: 091887181463
Technical specifications
| Brand | Ancor |
| Model | Ancor Black 16 AWG Tinned Copper Wire - 25' |
| SKU / MFR# | 60348 |
Set product metafields under specs.* to populate this table.
