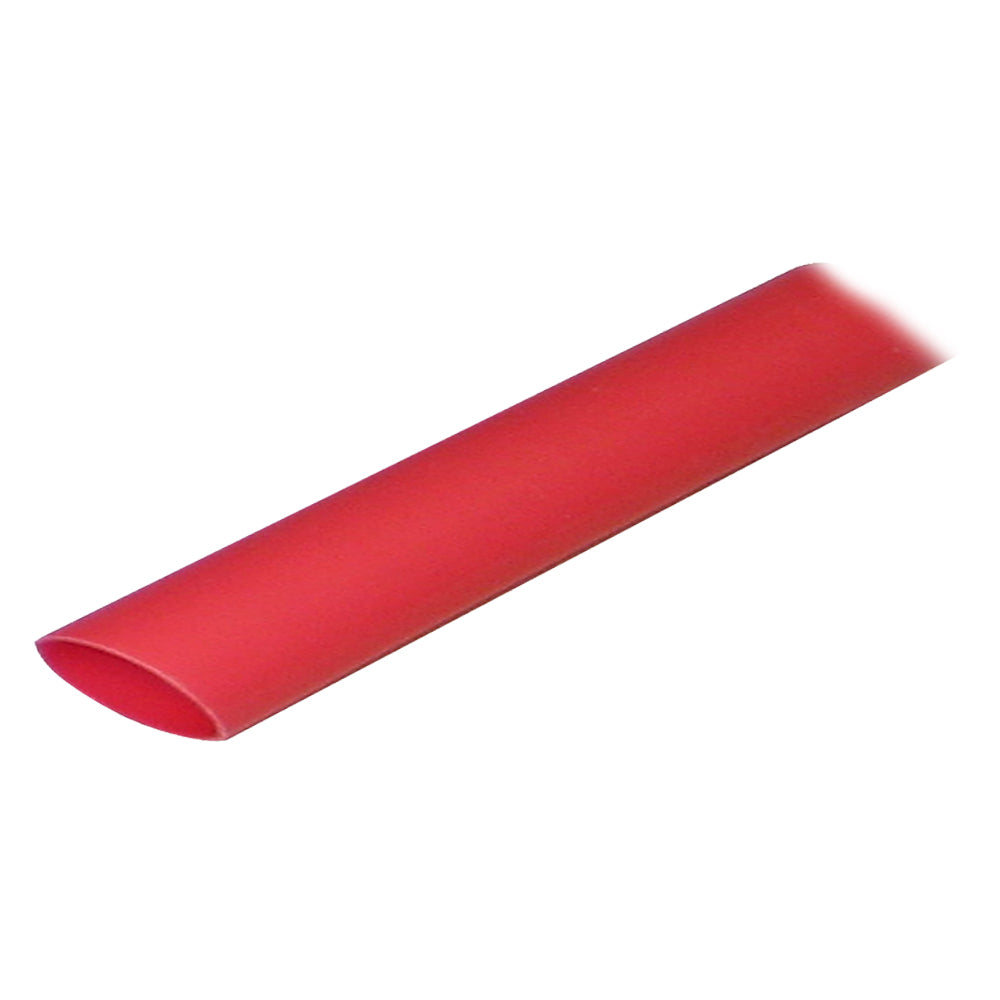

Ancor Adhesive Lined Heat Shrink Tubing (ALT) - 3/4" x 48" - 1-Pack - Red

SKU: 60082 · UPC: 091887808537 · MPN: 306648
4.7 · 0 reviews
Authorized dealer47% off
$19.99
$37.99Save $18.00
or 4 payments of $4.99 with Affirm
In stock — Ships today
SAME-DAY SHIPPING · 14:23 EST
Order in time, ships today
Ships from your nearest warehouse. UPS Ground 2–4 business days.
Free shipping
Orders $500 or more
Free returns
Within 30 days
Same day shipping
Order before 3 PM (EST)
Ask anything
We're here to help
$19.99
02 · Overview

Ancor Adhesive Lined Heat Shrink Tubing (ALT) - 3/4" x 48" - 1-Pack - Red — Product description

Package of 1 Red 48 inch long sections with a 3/4 inch diameter that shrinks to 1/4 inch.

Ancor 306648 Attributes

  • Compatibility: 3/4 Inch Diameter Wire
  • Length: 4 Feet
  • Color: Red
  • Material: Polyolefin
  • Quantity: Single

Ancor 306648 Features & Benefits

  • Cross Linked Polyolefin Tubing Is Much Stronger Than PVC Tubing And Will Not Burn Like PVC
  • Heat Activated Adhesive Lining Provides Impervious Seal To Salt Water, Oil, Acids, And Sunlight As Well As Providing Strain Relief
  • Highest Shrink Ratio - Shrinks To 1/3 Original Size
  • Shrinks At 257 Degree Fahrenheit Or 125 Degree Celsius
  • Operating Temperature Range Of -40 Degree Celsius To 110 Degree Celsius
  • No Supplier Warranty

Adhesive Lined Heat Shrink Tubing (ALT) - 3/4" x 48" - 1-Pack - Red

Package of 1 Red 48"(122cm) long sections with a 3/4"(19mm) diameter that shrinks to 1/4"(6.4mm)

Wire Range: 8-2/0 AWG

Features:
  • Cross Linked polyolefin tubing is much stronger than PVC tubing and
    will not burn like PVC
  • Heat activated adhesive lining provides impervious seal to salt water,
    oil, acids, and sunlight as well as providing strain relief
  • Highest shrink ratio - shrinks to 1/3 original size
  • Shrinks at 257°F / 125°C
  • Operating temperature range of -40°C to 110°C
  • UL 224

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.



The heat-activated adhesive melts and flows under the pressure of contraction to form a sealing layer that can resist salt water, salt, oil, gasoline and other contaminants. Size: 3/4 inch x 48 inch
SKU: NVN-60082
MPN: 306648
UPC: 091887808537
