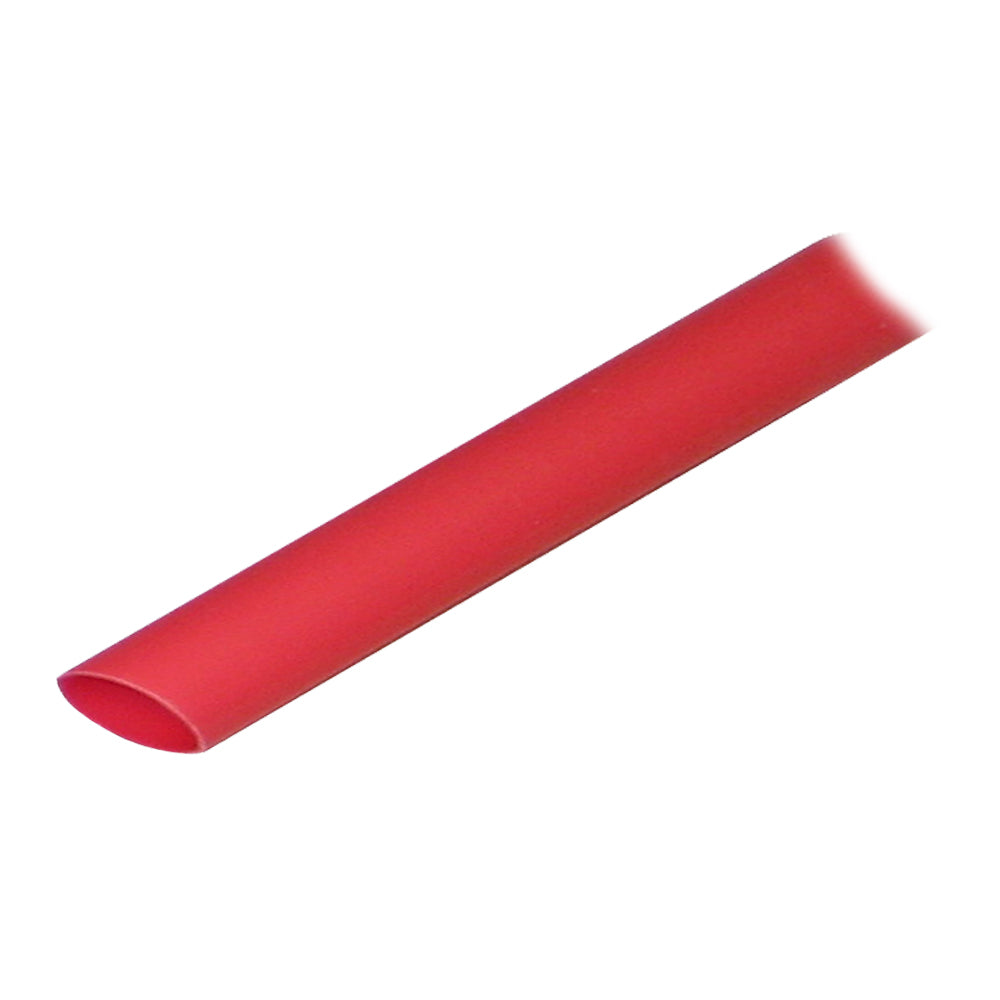

Ancor Adhesive Lined Heat Shrink Tubing (ALT) - 1/2" x 48" - 1-Pack - Red

Ancor has been the market leader in Marine Grade ® wire and wire management tools. All of our products are built for the harsh marine environment and conform to industry standards. From wire, to connectors and terminals, to a comprehensive line of tools and testers, Ancor is your source for all of your marine and mobile electrical projects.

Ancor 305648 Attributes

• Compatibility: 1/2 Inch Diameter Wire
• Length: 48 Inch
• Color: Red
• Material: Polyolefin
• Quantity: Single

Ancor 305648 Features & Benefits

• Cross Linked Polyolefin Tubing Is Much Stronger Than PVC Tubing And Will Not Burn Like PVC
• Heat Activated Adhesive Lining Provides Impervious Seal To Salt Water, Oil, Acids, And Sunlight As Well As Providing Strain Relief
• Highest Shrink Ratio - Shrinks To 1/3 Original Size
• Shrinks At 257 Degree Fahrenheit And 125 Degree Celsius
• UL 224
• No Supplier Warranty

Adhesive Lined Heat Shrink Tubing (ALT) - 1/2" x 48" - 1-Pack - Red

Package of 1 Red 48"(122cm) long sections with a 1/2"(12.7mm) diameter that shrinks to 5/32"(4mm)

Wire Range: 8-4 AWG

Features:

• Cross Linked polyolefin tubing is much stronger than PVC tubing and
  will not burn like PVC

• Heat activated adhesive lining provides impervious seal to salt water,
  oil, acids, and sunlight as well as providing strain relief

• Highest shrink ratio - shrinks to 1/3 original size

• Shrinks at 257°F / 125°C

• Operating temperature range of -40°C to 110°C

• UL 224

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Insulate and protect the connection from mechanical abuse, pulling and abrasion. The heat activated adhesive lining can be hermetically sealed to salt water, oil, acid and...
SKU: NVN-60072
MPN: 305648
UPC: 091887974034
