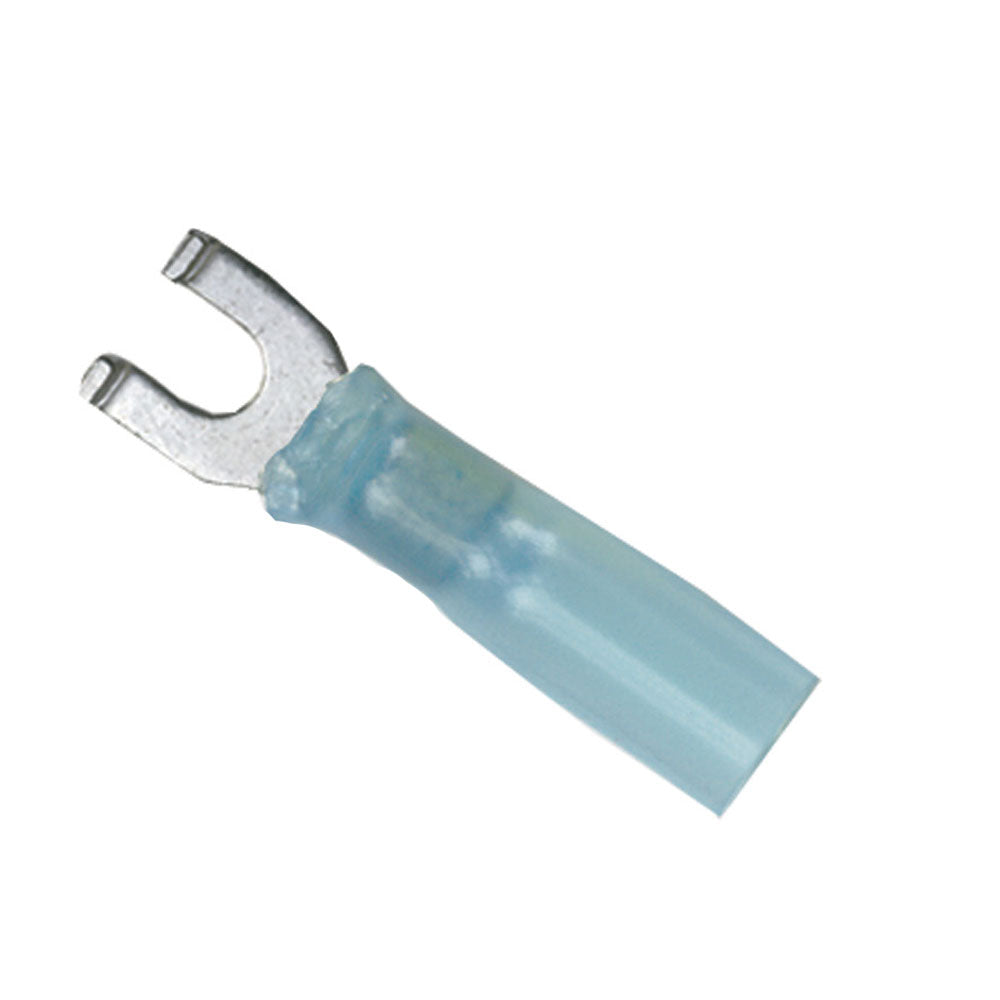

Ancor 16-14 Gauge - #8 Heat Shrink Spade Terminals - 100-Pack
SKU: 42091 · UPC: 091887316353 · MPN: 314299
★★★★★
4.7 · 0 reviews
Authorized dealer49% off
$35.49
$69.99Save $34.50
or 4 payments of $8.87 with Affirm
Low stock — 2 left — Ships today
SAME-DAY SHIPPING · 14:23 EST
Order in time, ships today
Ships from your nearest warehouse. UPS Ground 2–4 business days.
Free shipping
Orders $500 or more
Free returns
Within 30 days
Same day shipping
Order before 3 PM (EST)
Ask anything
We're here to help
$35.49
02 · Overview
Ancor 16-14 Gauge - #8 Heat Shrink Spade Terminals - 100-Pack — Product description
16-14 Gauge - #8 Heat Shrink Spade Terminals - 100-Pack
Features:
Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.
Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.
Nylon insulator, preferred by experts.
UL Listed and CSA Recognized
Highest shrink ratio - shrinks to 1/3 original size.
Shrinks at 257 deg. F/125 deg. C.
Operating temperature range 40 deg. C to 110 deg. C.
Tinned for corrosion resistance.
Pure copper for maximum current flow.
Brazed seam for maximum strength.
Wire Range: 16-14
mm: 1-2
Screw Size: 4mm
Qty/Pkg: 100
Ancor heat shrink connectors have heat activated adhesive built into the sleeve of the heat shrink tube. When heated, these connectors form a watertight seal and...
SKU: NVN-42091
MPN: 314299
UPC: 091887316353
Features:
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Ancor heat shrink connectors have heat activated adhesive built into the sleeve of the heat shrink tube. When heated, these connectors form a watertight seal and...
SKU: NVN-42091
MPN: 314299
UPC: 091887316353
03 · The numbers
Technical specifications
| Brand | Ancor |
| Model | Ancor 16-14 Gauge - #8 Heat Shrink Spade Terminals - 100-Pack |
| SKU / MFR# | 42091 |
Set product metafields under specs.* to populate this table.
