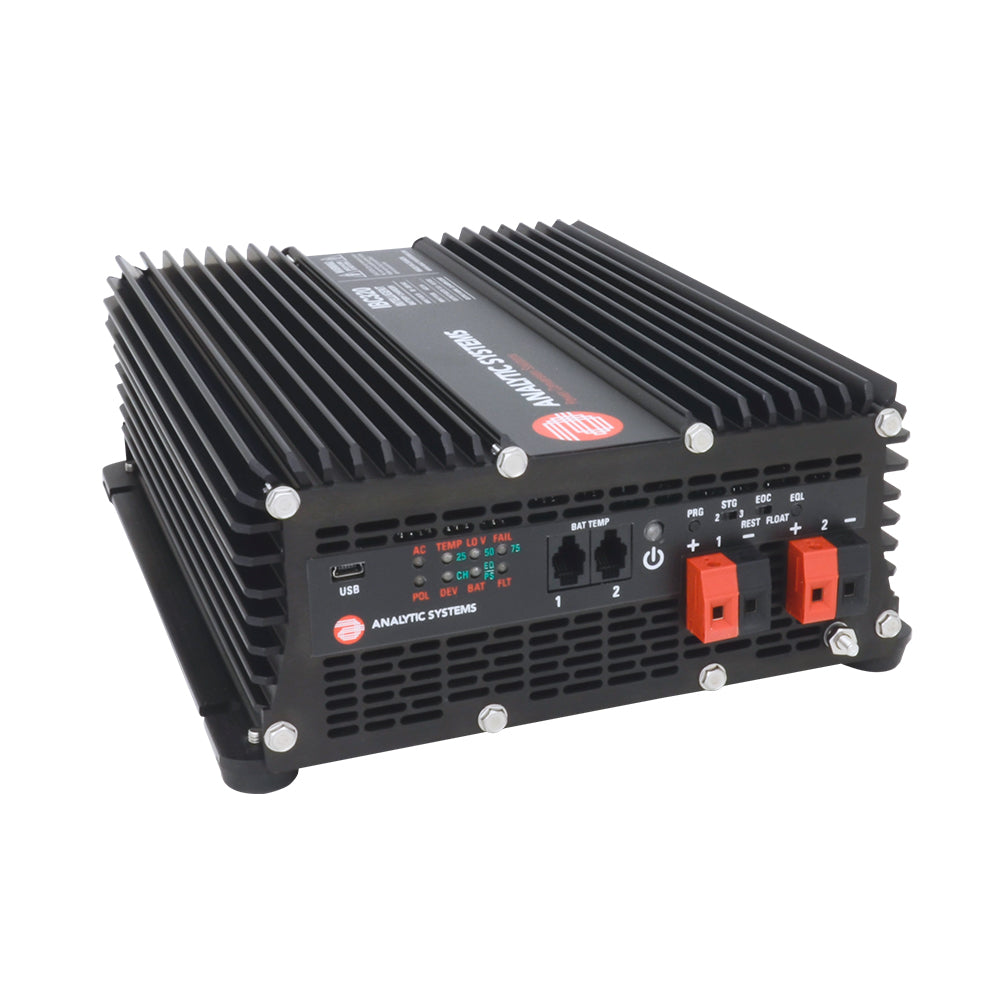

Analytic Systems IBC320-12 Battery Charger

IBC320-12 Battery Charger

The IBC series chargers are fully Digital Signal Processor controlled and feature Universal Input Voltage from 85 to 265 VAC at 50 or 60 Hz with Active Power Factor Correction for the most efficient use of AC power.

Four charging profiles are available with easy front panel selection to handle most types of batteries from traditional Lead Acid, Sealed Lead Acid and even Lithium Ion.

The free to download ‘Power Wizard’ software allows full programming and selection of each of the four profiles from a laptop computer. 300 and 1000 Watt models for 1 or 2 banks of 12, 24, 28, 32, 36 or 48 Volt batteries.

Features:

• Digital Signal Processor controlled
• Computer programmable
• Temperature compensation
• Easy connection for one or two battery banks
• Universal worldwide AC input
• Simple front panel controls
• Digital Display of Voltage and Current (lengthens chassis)
• High Vibration Rugged Duty
• Dry Contact Output Fail Relay
• Carrying Handle
• Canbus / RS232 / Remote Control port
• Five year parts and labour warranty

""
SKU: NVN-85296
MPN: IBC320-12
UPC:
