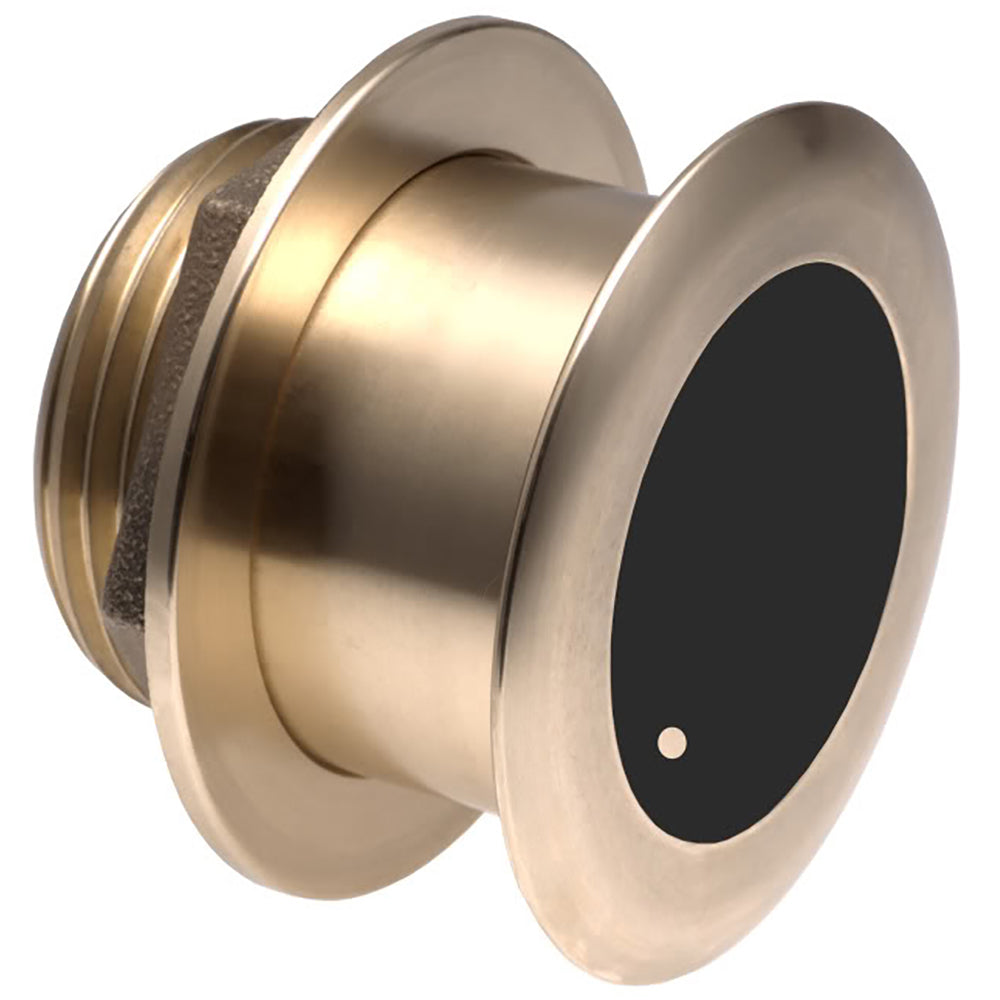

Airmar B175 Bronze Low Frequency 1kW Chirp Transducer 0° Tilt - Requires Mix & Match Cable

1 kW

Airmar's low-profile, Chirp-ready, transducers are the perfect addition to smaller boats such as center consoles. The B175L transmits across low-frequencies from 40 to 60 kHz, delivering excellent coverage and tracking. This transducer has up to 20 kHz of total bandwidth in just one installation for tremendous deep-water performance.

Tilted Element transducers have the ceramic element fixed at a 20°, 12°, or 0° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.

The B175L is available in three Tilted Element models:

• Fixed 20° tilted version for 16 to 24° hull deadrise angles
• Fixed 12° tilted version for 8 to 15° hull deadrise angles
• Fixed 0° tilted version for 0 to 7° hull deadrise angles

B175 Bronze Low Frequency 1kW Chirp Transducer 0° Tilt - Requires Mix & Match Cable

Airmar’s low profile Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The low frequency band is the deep water performer delivering excellent coverage and tracking in deeper depths. The B175L transducer delivers up to 20 kHz of total bandwidth in just one installation and delivers tremendous deep water performance.

The B175L transmits across the following bandwidth:

Low Frequency 40 to 60 kHz

Tilted element transducers have the ceramic element fixed at either a 20°, 12° or 0° angle within the transducer housing. The transducer is installed almost flush to the hull and the tilted element corrects for the hull deadrise by orienting the beam directly down. This assures maximum echo returns to the transducer and more accurate depth readings.

Features:

• Depth and fast-response water-temperature sensor
• 1 kW
• Low Frequency: 40 kHz to 60 kHz with maximum depth performance to 762 m (2500') 32° to 21° beamwidth
• Great deep water performance
• High performance, low-profile thru-hull housing provides good resolution at speed when installed properly
• Bronze housing for use on stepped, planing or displacement hulls in fiberglass or wood
• Recommended boat size: Up to 11 m (36')
• Exclusive Xducer ID® technology

Specifications:

• Weight: 2.7 kg (6 lb)
• Hull Deadrise: 0-7 degrees
• Acoustic Window: Urethane
• Hole Size: 98 mm (3-7/8")
• Seven internal broadband ceramic assemblies

Use Airmars' new wide-beam Chirp product line to obtain greater coverage under the ship. These transducers provide a high frequency range of 150-250 k-Hz and a constant beam width of 25°, making them truly broadband products at their best. In addition to improving the performance of the of acoustic echo sounder, compared with our current high frequency Chi acoustic transducer, anglers using the new wide beam transducer will achieve twice the coverage under the boat-new high frequency The uniqueness of the transducer is that the beam width is a constant 25° angle at t

• Depth and fast-response water-temperature sensing
• 1 kW of power for great deep-water performance
• Low frequency: 40 to 60 kHz
• 32° to 21° beamwidth
• Maximum depth of 762 m (2500')
• Low-profile, thru-hull housing provides good display resolution at speed when installed properly
• Recommended for stepped, planing, or displacement hull
• Bronze housing for use in a fiberglass or wood hull
• Also available in a stainless steel housing (SS175L) for use with all hull materials
• Patented Xducer ID technology

SKU: NVN-83333
MPN: B175C-0-L-MM
