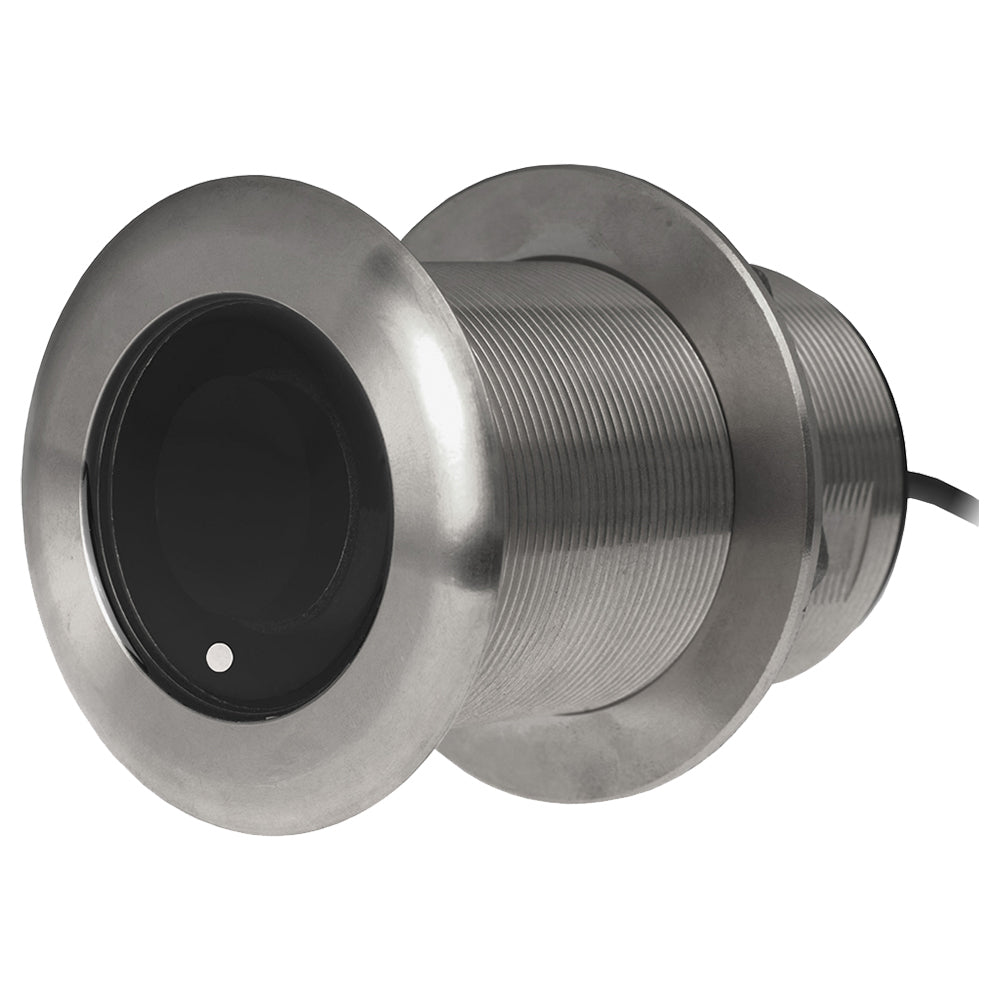

Airmar SS175L Low 20° Tilted Element Thru Hull Transducer 1kw

1 kW

Airmar's low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles. The low-frequency band, operating between 40 and 60 kHz, is a deep-water performer, giving excellent coverage and tracking. The SS175L transducer delivers up to 20 kHz of total bandwidth in just one installation.

Tilted Element transducers have the ceramic element fixed at a 20°, 12°, or 0° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.

The SS175L is available in three Tilted Element models:

• Fixed 20° tilted version for 16 to 24° hull deadrise angles
• Fixed 12° tilted version for 8 to 15° hull deadrise angles
• Fixed 0° tilted version for 0 to 7° hull deadrise angles

SS175L Stainless Steel 20° Thru Hull Mix & Match

Rely on Airmar’s new broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.

Features:

• Designed for smaller boats up to 36 feet (11M)
• A tilted element model in the Chirp Thru-Hull product line, the SS175L Chirps across the following bandwidth: L Model - Low Frequency 40-60 kHz
• Depth & fast-response water-temperature sensor
• Low—CHIRPS from 40 kHz to 60 kHz, 32° to 21° beamwidth
• 20° tilted
• 35 kHz of total bandwidth from one transducer
• Covers popular fishing frequency of 50 kHz plus everything else in the bandwidth
• Steel transducer housing
• Hull Type: Steel or aluminum
• Exclusive Xducer ID® technology
• Hull Deadrise: 16 to 24 degrees
• Acoustic Window: Urethane

The W is housed in a flush bronze shell without a fairing. The shell protrudes less than 1/4 inch to the outside of the hull and can be placed on the wheel/baggage rack of the trailer without damage. - This ...

• Depth and fast-response water-temperature sensing
• 1 kW of power with a maximum depth of 762 m (2500')
• Low frequency: 40 to 60 kHz
• 32° to 21° beamwidth
• Great deep-water performance
• Low-profile, thru-hull housing provides good display resolution at speed when installed properly
• Recommended for stepped, planing, or displacement hull
• Stainless steel housing for use in all hull materials
• Also available in a bronze housing (B175L) for use in a fiberglass or wood hull
• Patented Xducer ID technology

SKU: NVN-81219
MPN: SS175C-20-L-MM
UPC: 801769002140
