Airmar B60-20-FISO 20° Spade Connector f/Raymarine ST30, 40, 60, i40, i50 & i60
Airmar B60-20-FISO 20° Spade Connector f/Raymarine ST30, 40, 60, i40, i50 & i60 — Product description
600 W

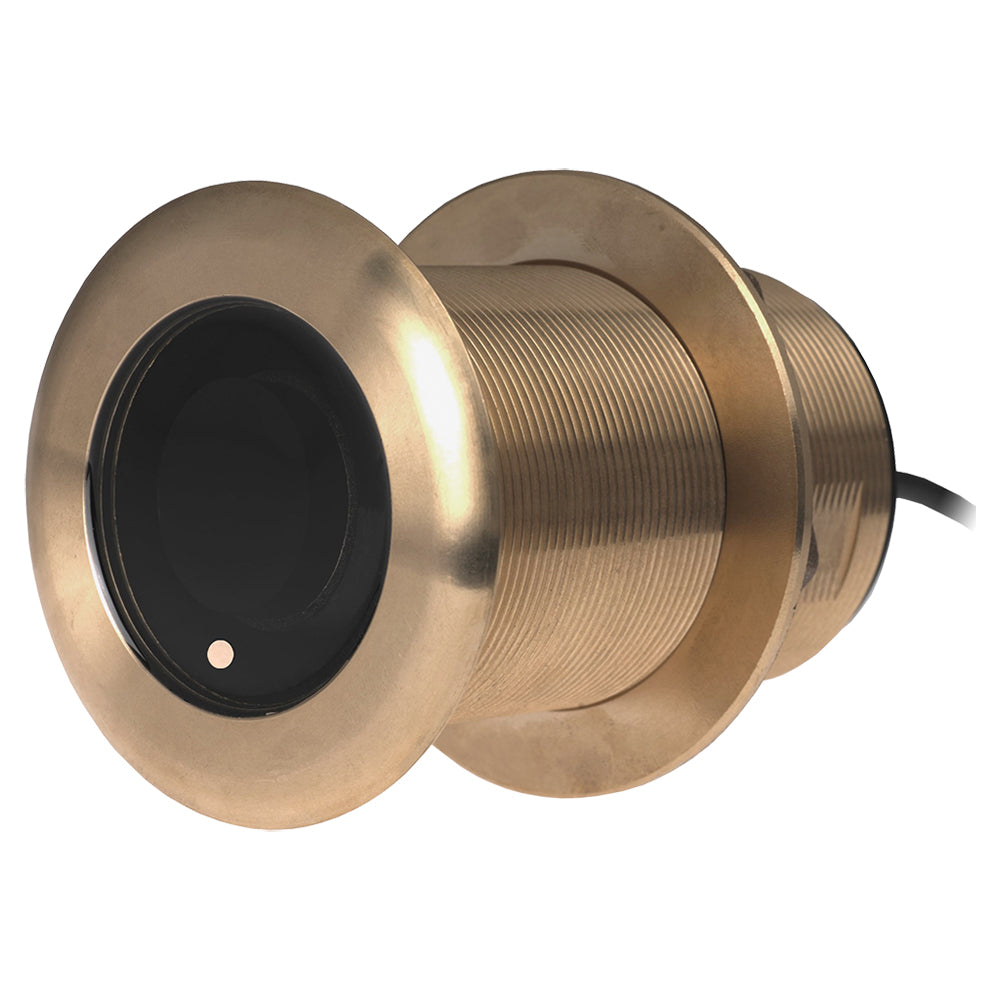

The B60 is a 600 W, 50/200 kHz transducer that integrates Airmar's popular, Tilted Element feature. This Tilted Element transducer has the ceramic element fixed at either a 20° or 12° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise angle. By orienting the beam directly down, it ensures maximum echo returns to the transducer for more-accurate depth readings.
Available in two Tilted Element models:
- Fixed 20° tilted version for 16 to 24° hull deadrise angles
- Fixed 12° tilted version for 8 to 15° hull deadrise angles
B60-20-FISO 20° Spade Connector for Raymarine ST30, 40, 60, i40, i50 & i60
The B60-20° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted for built-in, deadrise compensation. The resulting vertical beam gives excellent echo returns for more-accurate depth readings. The nearly-flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.
Features:
- Depth ONLY
- Mid-Performance
- Engineered for center-console and trailered boats
- Low-profile protrusion below the hull - no affect on your boats running performance
- Boat Size: Up to 8 m (25’)
- 50/200 kHz
- 600 W RMS
- Usable Shaft Length: 68.5 mm (2.70”)
This entry-level tilt bronze sensor does not require a fairing. This 600 W 8-pin sensor is 800 to 1200 feet deep and is an excellent choice for fiberglass and wood hulls. One ...
- Depth and fast-response water temperature sensing
- 600 W of power
- Dual-frequency element:
- 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200')
- 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
- Perfect for center-console or trailered boats
- Low-profile bronze housing extends only 5 mm (3/16") outside the hull
- No effect on your boat's running performance
- Bronze housing for fiberglass or wood hull
- Also available in a stainless steel housing (SS60) for use with all hull materials
SKU: NVN-79227
MPN: B60-20-FISO
UPC:
Technical specifications
| Brand | Airmar |
| Model | Airmar B60-20-FISO 20° Spade Connector f/Raymarine ST30, 40, 60, i40, i50 & i60 |
| SKU / MFR# | 79227 |
