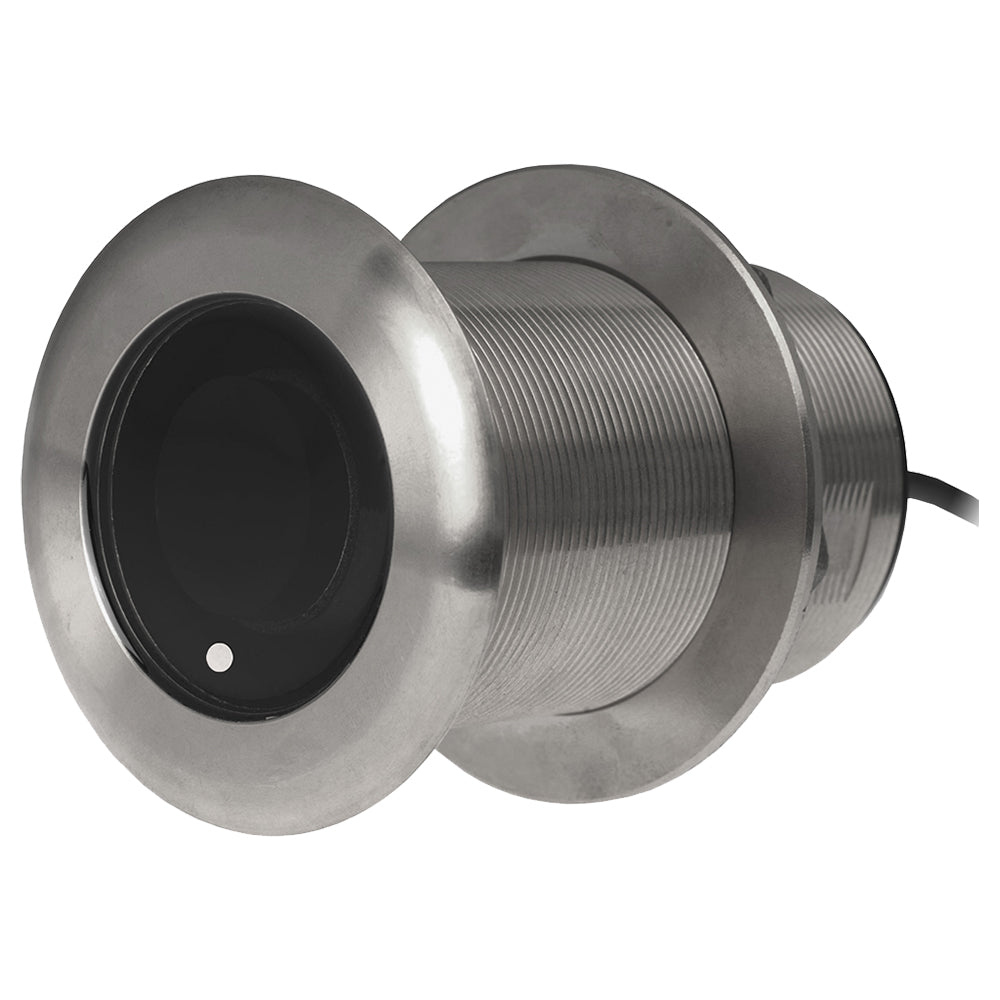

Airmar SS175L Stainless Steel 12° Thru Hull Mix & Match

1 kW

Airmar's low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles. The low-frequency band, operating between 40 and 60 kHz, is a deep-water performer, giving excellent coverage and tracking. The SS175L transducer delivers up to 20 kHz of total bandwidth in just one installation.

Tilted Element transducers have the ceramic element fixed at a 20°, 12°, or 0° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.

The SS175L is available in three Tilted Element models:

• Fixed 20° tilted version for 16 to 24° hull deadrise angles
• Fixed 12° tilted version for 8 to 15° hull deadrise angles
• Fixed 0° tilted version for 0 to 7° hull deadrise angles

SS175L Stainless Steel 12° Thru Hull Mix & Match

Rely on Airmar’s new broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.

Features:

• Designed for smaller boats up to 36 feet (11M)
• A tilted element model in the Chirp Thru-Hull product line, the SS175L Chirps across the following bandwidth: L Model - Low Frequency 40-60 kHz
• Depth & fast-response water-temperature sensor
• Low—CHIRPS from 40 kHz to 60 kHz, 32° to 21° beamwidth
• 12° tilted
• 35 kHz of total bandwidth from one transducer
• Covers popular fishing frequency of 50 kHz plus everything else in the bandwidth
• Steel transducer housing
• Hull Type: Steel or aluminum
• Exclusive Xducer ID® technology
• Hull Deadrise: 8 to 15 degree
• Acoustic Window: Urethane

Rely on Simrad's new broadband sensor to complete your final fishing mission. Whether you are a commercial fisherman, a charter captain or a tournament angler, there are new games in the town! The chirp sensor is capable of bottom detection at a depth of 10,000 feet (3,000 meters) and has 5 to 10 times the detailed information and resolution, so it can distinguish between single bait fish, game fish and underwater structures. The sensor is designed for small boats no more than 36' (11 meters). The M type has an intermediate frequency of 85-135 kHz and is a 12-skewed version. The total bandwidth of a sensor is 50 kHz, covering the popular phishing frequencies of 88 and 107 kHz and all other information in the bandwidth. Depth and fast response water temperature sensor. The SS175M sensor has a stainless steel housing and is specially designed for ships with steel or aluminum hulls. The transducer has a rated power of 1 kW at a 1% duty cycle of 2.5 inches (65 mm) PZT and an effective area of ​​5.1 square inches (33 square centimeters). The radiation surface of the transducer is of urethane design, and Q is equal to 2. The cable is of type C335 and the length is 33' (10 meters). The sensor comes with installation hardware and user manual. Note: (1) dB re 1 Pa per volt at 3'(1 meter) (2) dB Pa per 1 volt volt (3) The sum of the transmitted voltage response and the received voltage response (4) CW rated power applies to 68 F (20 C) seawater temperature.

• Depth and fast-response water-temperature sensing
• 1 kW of power with a maximum depth of 762 m (2500')
• Low frequency: 40 to 60 kHz
• 32° to 21° beamwidth
• Great deep-water performance
• Low-profile, thru-hull housing provides good display resolution at speed when installed properly
• Recommended for stepped, planing, or displacement hull
• Stainless steel housing for use in all hull materials
• Also available in a bronze housing (B175L) for use in a fiberglass or wood hull
• Patented Xducer ID technology

SKU: NVN-78092
MPN: SS175C-12-L-MM
UPC:
