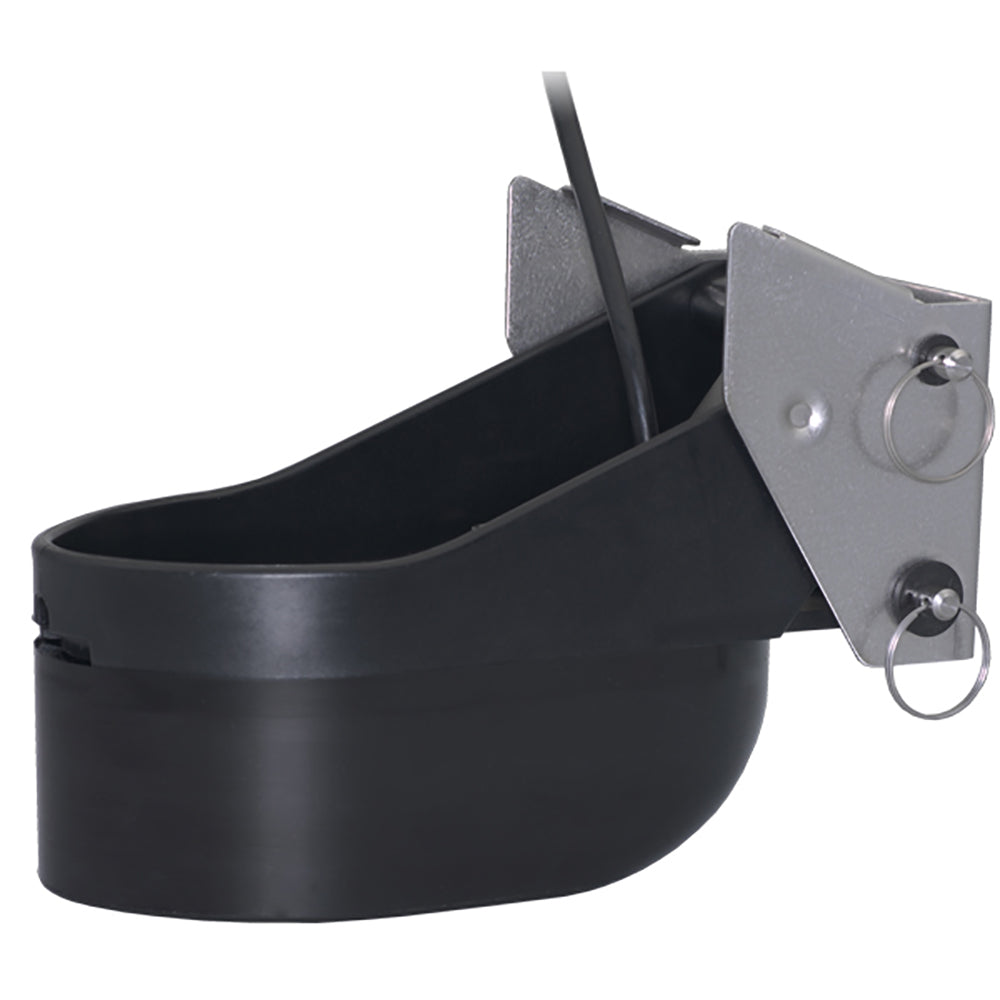

Airmar TM185C-HW-MM CHIRP Transducer Transom Mount Needs Mix & Match Cable

1 kW

Get more coverage under your boat with Airmar's unique, wide-beam, high-frequency, Chirp-ready TM185HW. The high-frequency band operates across a range of 150 to 250 kHz and has a fixed 25° beam. The high-frequency band yields superior shallow-water performance, bottom detail, and fish-target separation. The constantly wide beam provides twice the coverage for detecting fish in the upper-water column and clear fish arches on the display compared to most high-frequency, narrow-beam transducers. The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential down to 152 m (500').

TM185C-HW-MM CHIRP Transducer Transom Mount Needs Mix & Match Cable

Get more coverage under the boat with Airmar's wide beam Chirp. Offering a high frequency range of 150-250 kHz and a constant 25° Beamwidth, this transducer is truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using this wide beam transducer will achieve twice the coverage under the boat compared to our current high frequency Chirp transducers.

A unique property of the high frequency transducers is that the Beamwidth is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's wide beam format also creates crisper and larger return images on the display.

Features:

• CHIRPS across the following bandwidths: — High-Frequency: 150-250 kHz
• 25° Constant Beamwidth
• 1kW (1,000 Watt) RMS Power
• Depth Range: 600'-800'
• Depth & fast-response water-temperature sensor
• Urethane housing and stainless steel kick-up mounting bracket
• Boat Size: 8 m to 12 m (25' to 40')
• Boat Type: Outboards; I/O
• Hull Type: Fiberglass, Wood, Metal
• Can retrofit to existing TM258, TM260, TM265, and TM275 bracket
• Needs Mix & Match Cable

Medium CHIRP-model with Garmin 8-Pin: TM185-HWDepth and fast response water temperature sensor 1 k-W, maximum depth of 152 m (500') High frequency: 150 k-Hz to 250 k...

• Depth and fast-response water-temperature sensing
• 1 kW of power
• High frequency: 150 to 250 kHz
• Constant 25° beamwidth
• Maximum depth of 152 m (500')
• 100 kHz of total bandwidth from one transducer
• Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth
• Stainless steel bracket for installation on outboard or inboard/outboard powered boats
• Recommended for use on planing and displacement hulls
• SEALCAST, seamless, urethane housing for long life in the water
• Also available as thru-hull Tilted Element (B175HW)(SS175HW), thru-hull with fairing (B285HW), and in-hull (M285HW) mounts
• Patented Xducer ID technology

SKU: NVN-74502
MPN: TM185C-HW-MM
