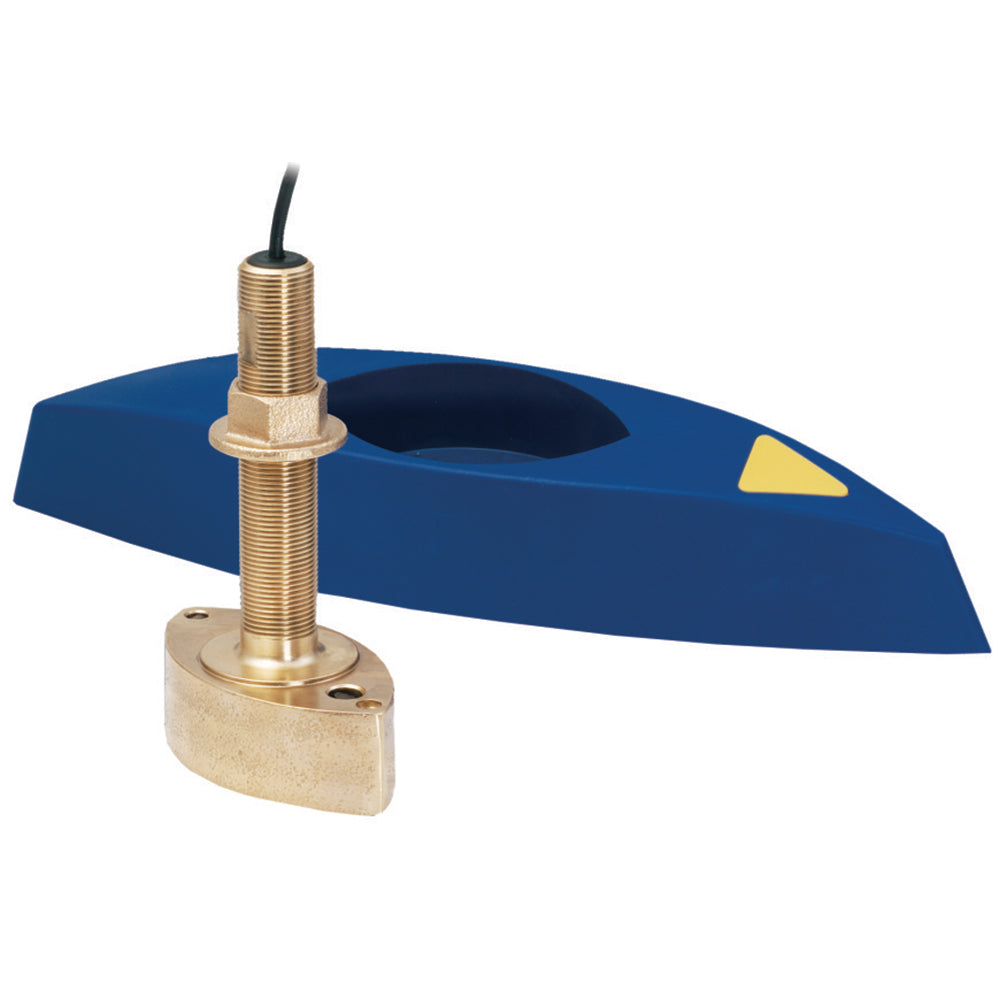

Airmar B45-DT-HB 600W Thru-Hull Transducer w/Fairing Block & Humminbird #9 Connector

600 W

The B45 is Airmar's smallest and most economical, dual-frequency, bronze, stem transducer. It features a single, 50/200 kHz ceramic element. The included fairing streamlines the transducer and increases the performance—even at higher speeds.

B45-DT-HB 600W Thru-Hull Transducer w/Fairing Block & Humminbird #9 Connector

The B45 is our smallest and most economical, dual-frequency, bronze, stem transducer. Its streamlined shape and High Performance fairing block deflects aerated water from the transducer's face for strong return echoes and clear display images.

Features:

• Bronze housing
• Depth and Temperature
• Recommended for planing-hull powerboats and cruising sailboats up to 9 m (30’)
• Good sensitivity in a compact housing
• Fast-response water-temperature sensor provides ±0.2°C (±0.1°F)
• High-Performance Fairing included
• Usable Shaft Length: 92 mm (3.62”)
• Standard fairing block
• Frequency: 50/200 kHz
• Maximum Depth Range:

• 50 kHz—235 m to 353 m (800’ to 1,200’)
• 200 kHz—118 m to 206 m (400’ to 700’)

• Cone: 50 kHz—45°, 200 kHz—12°
• RMS Power: 600 W

B45-DT-HB 600W through car body sensor with balance weight and Humminbird #9 connector. B45 is our smallest and most economical dual-frequency bronze rod sensor. its ...

• Depth and fast-response water-temperature sensing
• 600 W of power
• Dual-frequency element:
• 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200')
• 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
• Excellent performance and sensitivity in a small housing
• Bronze housing with High-performance Fairing for optimal performance at speed

SKU: NVN-73082
MPN: B45-DT-HB
UPC: 801769000177
