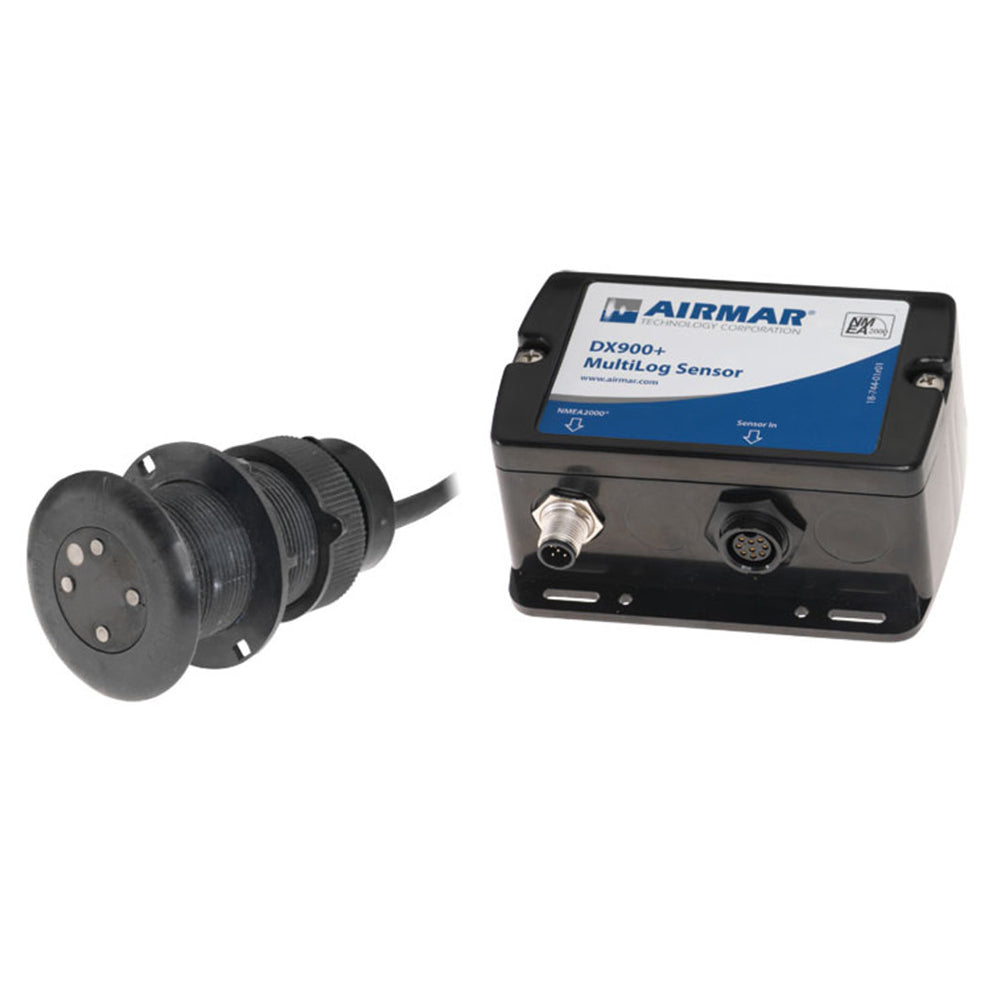

Airmar DX900+ MultiLog Sensor - Depth Speed & Temp - NMEA 2000

Say goodbye to the paddlewheel and hello to Smart Sensor technology. The DX900+ uses electromagnetic technology to accurately measure dual-axis speed-through-water plus immediately calculate leeway travel. Paddlewheels need cleaning and only measure speed longitudinally.The DX900+ measures water flow in 360° and will immediately deliver the leeway data to your instrument. There are no moving parts to clean or maintain. Performance sailors, racers or long distance cruisers will immediately see the benefits of the accuracy and reliability of the DX900+.

DX900+ MultiLog Sensor - Depth, Speed & Temp - NMEA 2000

Industry’s First Bluetooth® - Enabled, Multifunctional Sensor

Features:

• Measures transverse and longitudinal speed which instantaneously calculates leeway angle and speed through water with no latency

• Outputs dual axis speed, depth & water temperature with no moving parts

• Offers a lightweight alternative to installing multiple sensors

• Retrofits to existing P617V AIRMAR housing

• Connects and shares data via AIRMAR’s CAST™ app (Bluetooth®-enabled)

• Outputs heel and trim* available as option

DX900+ Benefits:

• Retrofitting is easy – retractable insert fits most existing 51mm P617V Airmar thru-hull housings

• Low profile housing has minimal drag

• Measures reverse speed (which can be helpful for very light wind conditions and quick manuevers on powerboats)

• All-in-one housing; no moving parts

CAST™ App Features:

• Connects to your boat display as well as your smart device (tablet, phone, etc.) via Bluetooth® or via WiFi network

• Supports both iOS and Android platforms

• Displays all sensor features

• Performs speed calibration

• Provides diagnostic information for troubleshooting

• Offers interface to update firmware

• Can easily configure update rate

• Easily display data available from other devices on the network

Measuring Leeway:

No matter what type of racing you do, it’s important to get every ounce of speed out of your boat. AIRMAR’s dual axis, electromagnetic multifunction sensor is exactly the advantage you need. The DX900+ measures transverse and longitudinal speed which instantaneously calculates leeway angle and speed through water with no latency.

AIRMAR DX900 plus NMEA2000/depth processor box is brand new.

• Electromagnetic dual-axis speed, depth, and water temperature with no moving parts (speed and water temperature only version also available)
• Measures transverse and longitudinal speed that instantaneously calculates leeway angle and speed-through-water with no latency
• Connects and shares data wirelessly with AIRMAR's CAST app. Perfect for displaying performance data on phone or tablets, plus makes calibration fast and easy.
• Outputs heel and trim
• The sensing pins in contact with the water are made from very high-quality alloy, allowing very stable measurements and high resistance to corrosion. (Do not use any bottom paint on exposed sensing pins.)
• Thru-hull, low-profile plastic housing with water valve
• Retractable insert for safe storage
• Also available in a stainless steel (SS617V) housing
• Retrofits to existing P617V housing
• NMEA 2000 certified cable

SKU: NVN-72604
MPN: DX900-DST-N2
UPC:
