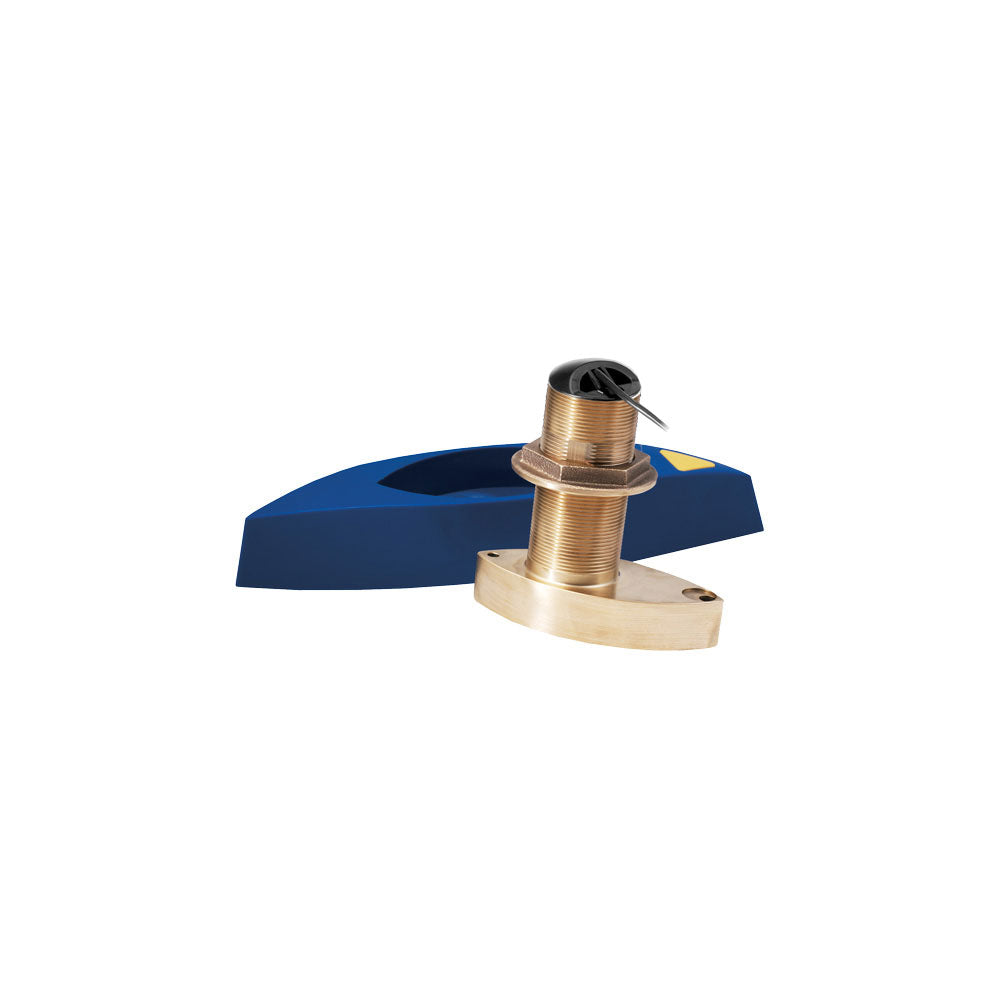

Airmar B765C-LM Bronze CHIRP Transducer - Needs Mix & Match Cable - Does NOT Work w/Simrad & Lowrance

300 / 600 W*

It's a thru-hull, Chirp transducer perfectly suited for smaller fishing boats. The B765LM gives the performance of the larger transducers but in a compact package. A great combination of low and medium-frequency bands provides a wide range of depth capability and fish finding. The low-frequency band, operating from 40 to 75 kHz, provide excellent depth penetration. Meanwhile the medium frequency range of 80 to 130 kHz excels at detailed bottom structure and tight-holding fish targets in mid-depth.

The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

B765C-LM Bronze CHIRP Transducer - Needs Mix & Match Cable - Does NOT Work with Simrad & Lowrance

Rely on Airmar’s broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 85 kHz of total bandwidth in just one installation, saving customers time and money.

A Thru-Hull Chirp transducer perfectly suited for smaller fishing boats, the B765L/M Chirps across the following bandwidths:*L/M -Low Frequency 40-75 kHz, Medium Frequency 80-130 kHz

* Please Note: The low frequency operating band is 300 W. The medium frequency operating band is 600 W.

Features

• Depth & fast-response water-temperature sensor
• Low—CHIRPS from 40 kHz to 75 kHz, 32° to 21° beamwidth
• Medium—CHIRPS from 80 kHz to 130 kHz, 24° to 16° beamwidth
• 85 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidth
• All the advantages of the larger Thru-Hull Chirp transducers, suitable for smaller boats
• Bronze transducer housing with High-Performance Fairing
• Boat Size: Up to 9 m (30’) and above
• Hull Type: Fiberglass or wood
• Exclusive Xducer ID® technology
• Hull Deadrise: Up to 24° with a fairing
• Acoustic Window: Urethane
• Weight: 2.5 kg (5.5 lb)

B765C-LM bronze CHIRP sensor-requires mixing and matching cables-can not be used with Simrad & Lowrance to rely on Airmar's broadband sensor to complete the final fishing task. ...

• Depth and fast-response water-temperature sensing
• Low frequency: 40 to 75 kHz
• 32° to 21° beamwidth
• Maximum depth of 366 m (1200')
• * Operates at 300 W
• Medium frequency: 80 to 130 kHz
• 24° to 16° beamwidth
• Maximum depth of 274 m (900')
• * Operates at 600 W
• 85 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidth
• All the advantages of the larger, thru-hull, Chirp transducers yet suitable size-wise for smaller boats
• Bronze housing with High-performance Fairing for optimal performance at higher speeds
• Patented Xducer ID technology

SKU: NVN-71947
MPN: B765C-LM-MM
