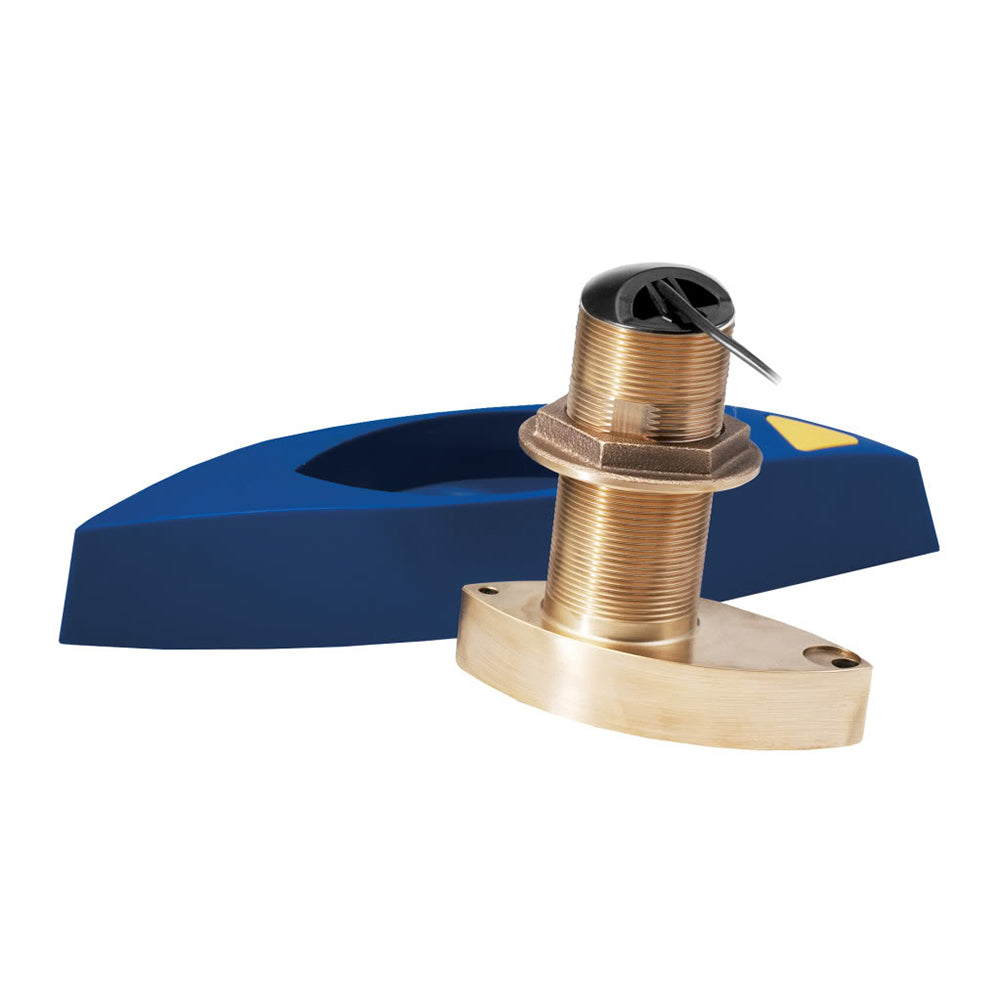

Airmar B785C-M CHIRP Bronze Thru-Hull w/Fairing Block - 600W

600 W

The B785M is an economical, Chirp-ready transducer designed for offshore fishing and freshwater anglers. Operating at a frequency range of 80 to 130 kHz, this transducer reveals fish in shallow, murky waters at medium depths up to 274 m (900') along with ultra-clear target resolution. A thru-hull, Chirp transducer perfectly suited for smaller fishing boats.

The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

B785C-M CHIRP Bronze Thru-Hull w/Fairing Block - 600W

Features:

• Thru-hull bronze model with fairing
• Same physical size as a B744V
• 600W power rating
• Depth and fast-response water temperature sensor
• Available only in the Medium frequency band (M : 80-130kHz) with bare wire cable

Need to mix and match cables and sell them separately. -As Chirp continues to redefine recreational fishing, AIRMAR has expanded its lineup of broadband transducers to meet people's needs.

• Depth and fast-response water-temperature sensing
• 600 W of power
• Medium frequency: 80 to 130 kHz
• 24° to 16° beamwidth
• Maximum depth of 274 m (900')
• 50 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
• Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation
• Recommended for use on planing or displacement hull
• Bronze housing with High-performance Fairing for optimal performance at higher speeds
• Also available in a low-profile, thru-hull (B75M) mount
• Patented Xducer ID technology

SKU: NVN-71825
MPN: B785C-M-MM
UPC:
