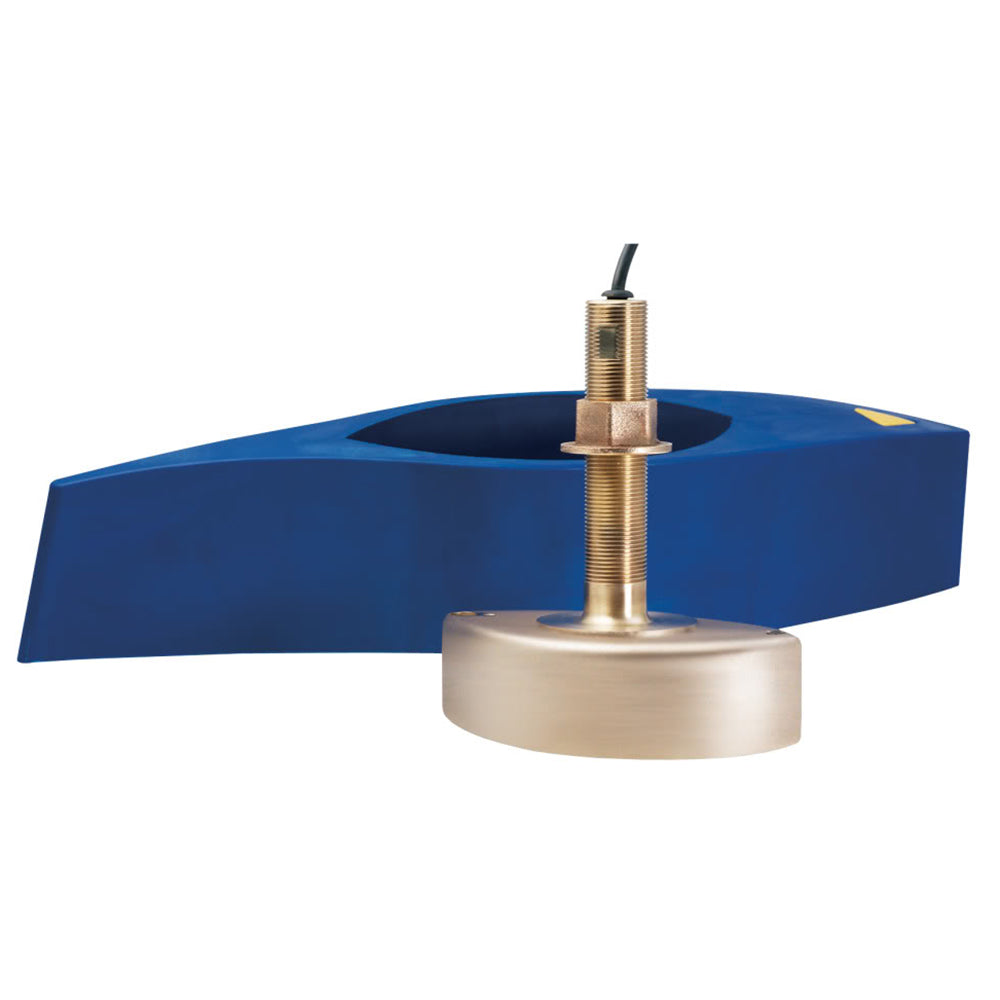

Airmar B285HW Bronze 1kW Wide Beam Chirp Thru-Hull Transducer - Requires Mix and Match Cable

1 kW

Get more coverage under your boat with Airmar's unique, wide-beam, high-frequency, Chirp-ready B285HW. The high-frequency band operates across a range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high frequency band delivers superior shallow-water performance, bottom detail, and fish-target separation. The constantly wide beam provides twice the coverage for detecting fish in the upper-water column and clear fish arches on the display compared to most, high-frequency, narrow-beam transducers. The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential down to 152 m (500').

The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

B285HW Bronze 1kW Wide Beam Chirp Thru-Hull Transducer

Requires Mix and Match Cable

Get more coverage under the boat with Airmar's wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25° Beamwidth, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the single band, wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducers

A unique property of the high frequency transducers is that the Beamwidth is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.

Features:

• Depth & temperature
• 150-250 kHz High frequency
• Bronze housing
• 1 kW
• Wide 25° beam
• Exclusive Xducer ID® technology
• Boat Size: Up to 9M (30')

Specifications:

• Hull Deadrise: Up to 24°
• Acoustic Window: Urethane

Airmar B285C height and width 1Kw CHIRP bronze straight-through hull Model: B285C-HW-MM depth and temperature bronze shell exclusive Xducer ID technology use...

• Depth and fast-response water-temperature sensing
• 1 kW of power
• High frequency: 150 to 250 kHz
• Constant 25° beamwidth
• Maximum depth of 152 m (500')
• 100 kHz of total bandwidth from one transducer
• Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth
• High wide beamwidth yields more coverage
• Bronze housing with a High-performance Fairing for optimal performance at higher speeds
• Recommended for use on planing and displacement hulls
• Also available as transom (TM185HW), thru-hull Tilted Element (B175HW)(SS175HW), and in-hull (M285HW) mounts
• Patented Xducer ID technology

SKU: NVN-71010
MPN: B285C-HW-MM
UPC:
