Airmar B765C-LH Bronze Chirp Transducer - Requires Mix and Match Cable

300 / 600 W*

It's a thru-hull, Chirp transducer perfectly suited for smaller fishing boats. The B765LH gives the performance of the larger transducers but in a compact package. A great combination of low and high-frequency bands provides a wide range of depth capability and fish finding. The low-frequency band, operating from 40 to 75 kHz, gives excellent depth penetration. Meanwhile the high-frequency range of 130 to 210 kHz excels in shallow water for bottom detail and target resolution.

The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

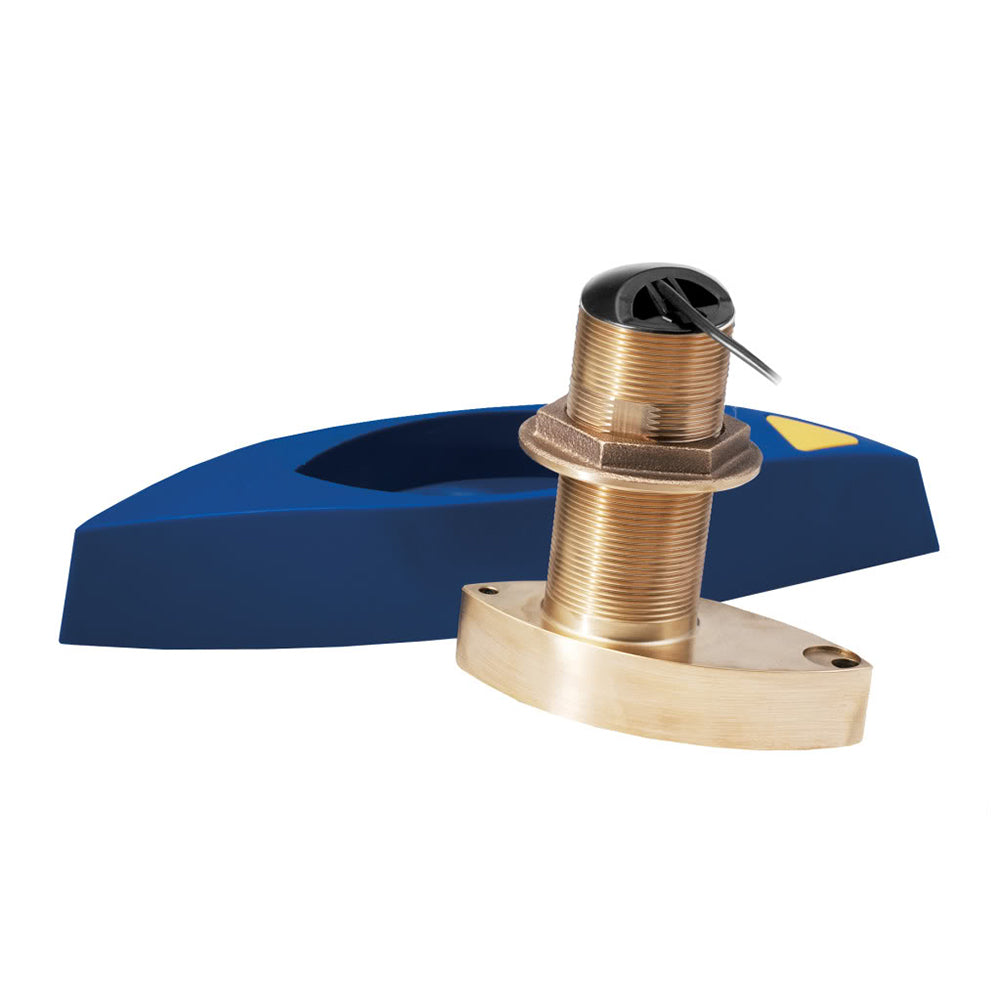

B765C-LH Bronze Chirp Transducer

Requires Mix and Match Cable

Thru-hull bronze model with fairing. Same physical size as a B744V, with 600W power rating. Need mix and match cable. Depth and fast-response water temperature sensor. LH model has Low (40-75kHz) and High (130-210kHz) frequency bands.

Please note: Does not work with Navico

The physical size is the same as B744V, and the rated power is 600W. Need to mix and match cables. Depth and fast response water temperature sensor. The LH model has low (40-75kHz) and high (130 -...

• Depth and fast-response water-temperature sensing
• Low frequency: 40 to 75 kHz
• 32° to 21° beamwidth
• Maximum depth of 366 m (1200')
• * Operates at 300 W
• High frequency: 130 to 210 kHz
• 15° to 9° beamwidth
• Maximum depth of 213 m (700')
• * Operates at 600 W
• 15 kHz of total bandwidth from one transducer means great shallow and deep-water performance
• Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
• All the advantages of the larger, thru-hull, Chirp transducers yet suitable size-wise for smaller boats
• Bronze housing with High-performance Fairing for optimal performance at higher speeds
• Patented Xducer ID technology

SKU: NVN-70852
MPN: B765C-LH-MM
UPC:
