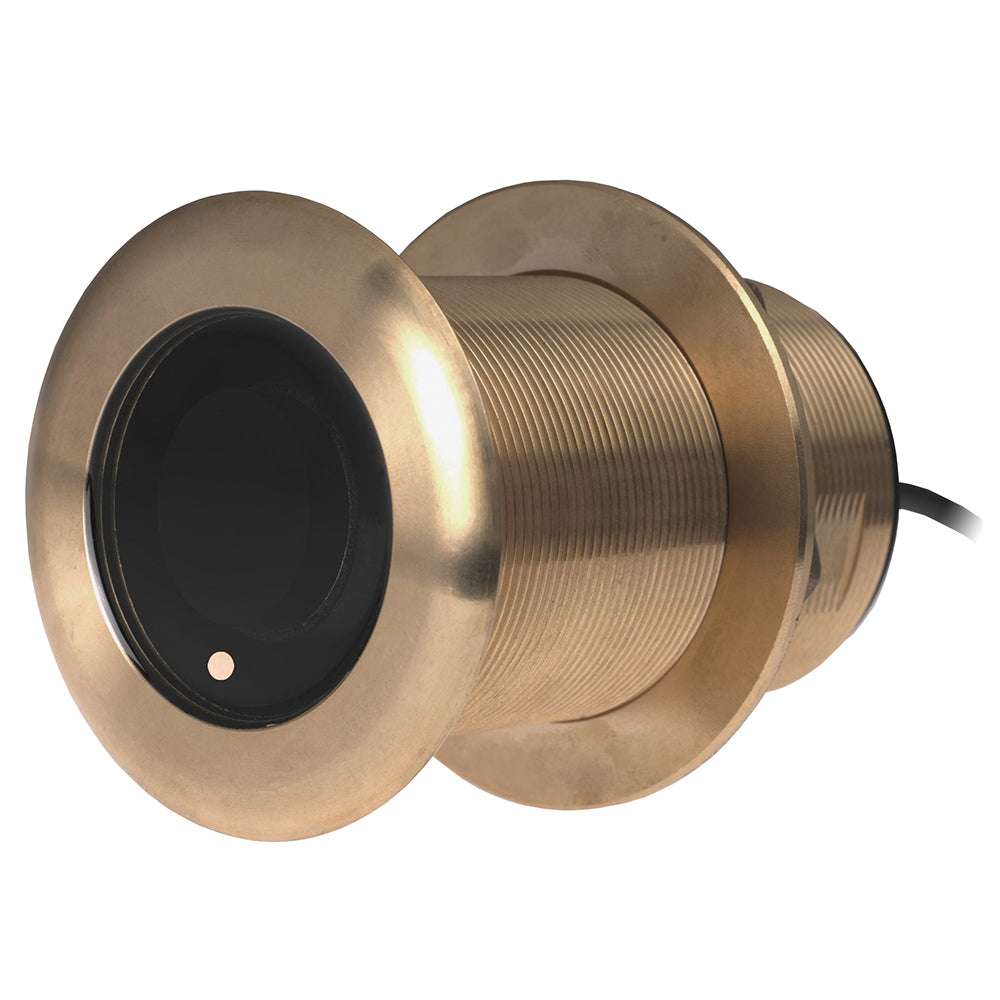

Airmar B75M Bronze Chirp Thru Hull 0° Tilt - 600W - Requires Mix and Match Cable

600 W

Airmar's low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles. Operating at a frequency range of 80 to 130 kHz, the B75M delivers up to 50 kHz of total bandwidth in just one installation. This transducer shows amazing bottom detail in shallow and medium depths down to 274 m (900').

Tilted Element transducers have the ceramic element fixed at a 20°, 12°, or 0° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer and more accurate depth readings.

The B75M is available in three Tilted Element models:

• Fixed 20° tilted version for 16 to 24° hull deadrise angles
• Fixed 12° tilted version for 6 to 15° hull deadrise angles
• Fixed 0° tilted version for 0 to 7° hull deadrise angles

B75M Bronze Chirp Thru Hull 0° Tilt - 600W

Requires Mix and Match Cable

Rely on Airmar’s broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 70 kHz of total bandwidth in just one installation, saving customers time and money.

Features:

• Depth & fast-response water-temperature sensor
• Medium—CHIRPS from 80 kHz to 130 kHz, 24° to 16° beamwidth
• 0° tilted version, 600W
• 50 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
• Bronze transducer housing
• Boat Size: Up to 8 m (25’)
• Hull Type: Fiberglass or wood
• Exclusive Xducer ID® technology

Rely on Airmar's new broadband sensor to complete your final fishing mission. Whether you are a commercial fisherman, a charter captain or a tournament angler, there is a new game...

• Depth and fast-response water-temperature sensing
• 600 W of power with a maximum depth of 274 m (900')
• Medium frequency: 80 to 130 kHz
• 24° to 16° beamwidth
• Medium frequency provides good shallow-water performance, bottom detail, and deeper performance than high-frequency band
• Low-profile, thru-hull housing delivers good display resolution at speed when installed properly
• Bronze housing for use in a fiberglass or wood hull
• Recommended for stepped, planing, or displacement hull
• Also available in a stainless steel housing (SS75M) for use in all hull materials
• Patented Xducer ID technology

SKU: NVN-68039
MPN: B75C-0-M-MM
