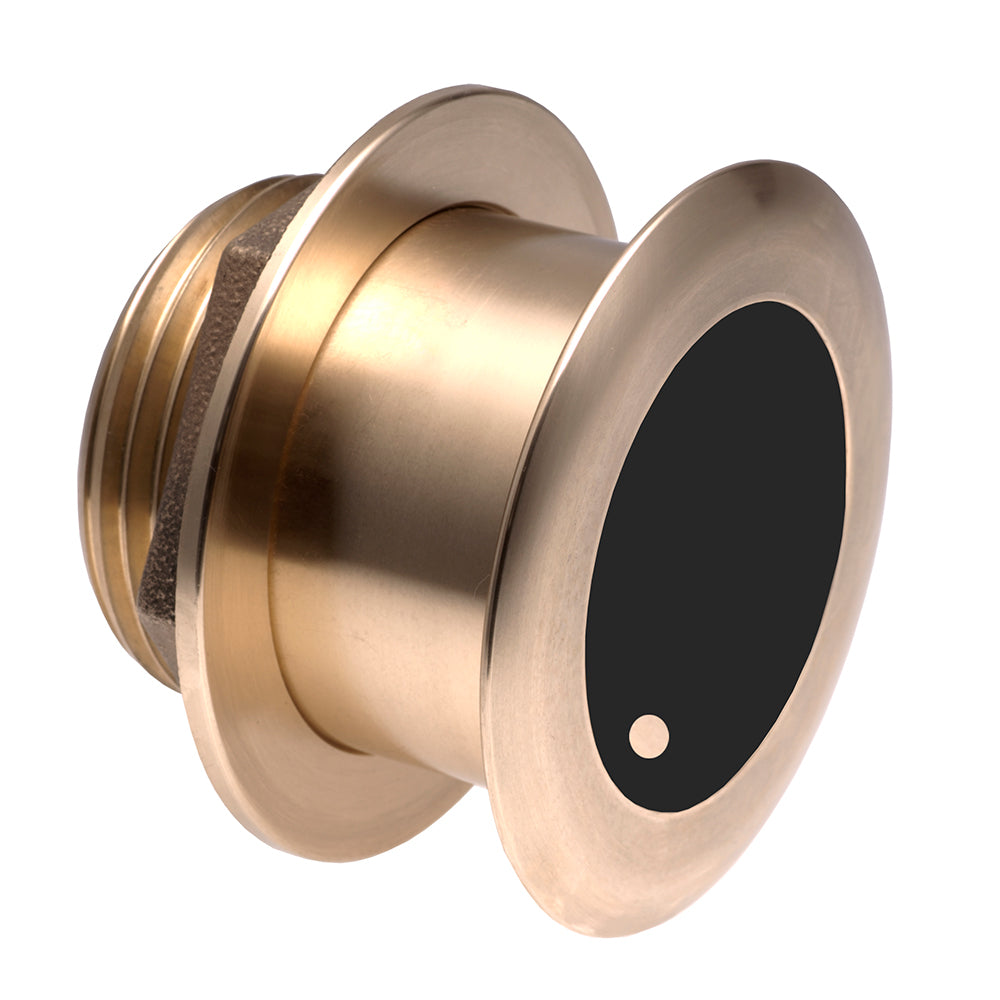

Airmar B175M Bronze Thru Hull 12° Tilt - 1kW - Requires Mix and Match Cable

1 kW

The B175M's medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid to deeper water. Medium frequency also provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths of up to 457 m (1500') and gives ultra-clear target resolution.

Airmar's Tilted Element transducers have the element fixed at a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.

The B175M is available in three Tilted Element models:

• Fixed 20° tilted version for 16 to 24° hull deadrise angles
• Fixed 12° tilted version for 8 to 15° hull deadrise angles
• Fixed 0° tilted version for 0 to 7° hull deadrise angles

B175M Bronze Thru Hull 12° Tilt - 1kW

Requires Mix and Match Cable

Rely on Airmar’s broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.

Features:

• Medium—CHIRPS from 85 kHz to 135 kHz, 24° to 16° beamwidth
• 12° tilted version
• 50 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
• Depth & fast-response water-temperature sensor
• Bronze transducer housing
• Boat Size: Up to 11 m (36’)
• Hull Type: Fiberglass or wood
• Exclusive Xducer ID® technology

B175M Bronze Straight Through Hull 12° Tilt-1k W Rely on Airmar's broadband sensor to complete your ultimate fishing mission. Whether you are a commercial fisherman, a charter captain or a tournament angler, there will be new games in the town! The chirp sensor can detect the bottom up to 3,000m (10,000') in depth, and its details and resolution are improved by 5 to 10 times, so it is highly accurate and can distinguish single bait fish, game fish and underwater structures.

• Depth and fast-response water-temperature sensing
• 1 kW of power
• Medium frequency: 85 to 135 kHz
• 16° to 11° beamwidth
• Maximum depth of 457 m (1500')
• 50 kHz of total bandwidth from one transducer
• Low-profile, thru-hull housing provides good display resolution at speed when installed properly
• Recommended for stepped, planing, or displacement hull
• Bronze housing for use in a fiberglass or wood hull
• Also available in a stainless steel housing (SS175M) and a thru-hull (B285M) or in-hull (M135M) mount
• Patented Xducer ID technology

SKU: NVN-68034
MPN: B175C-12-M-MM
UPC: 801769001884
