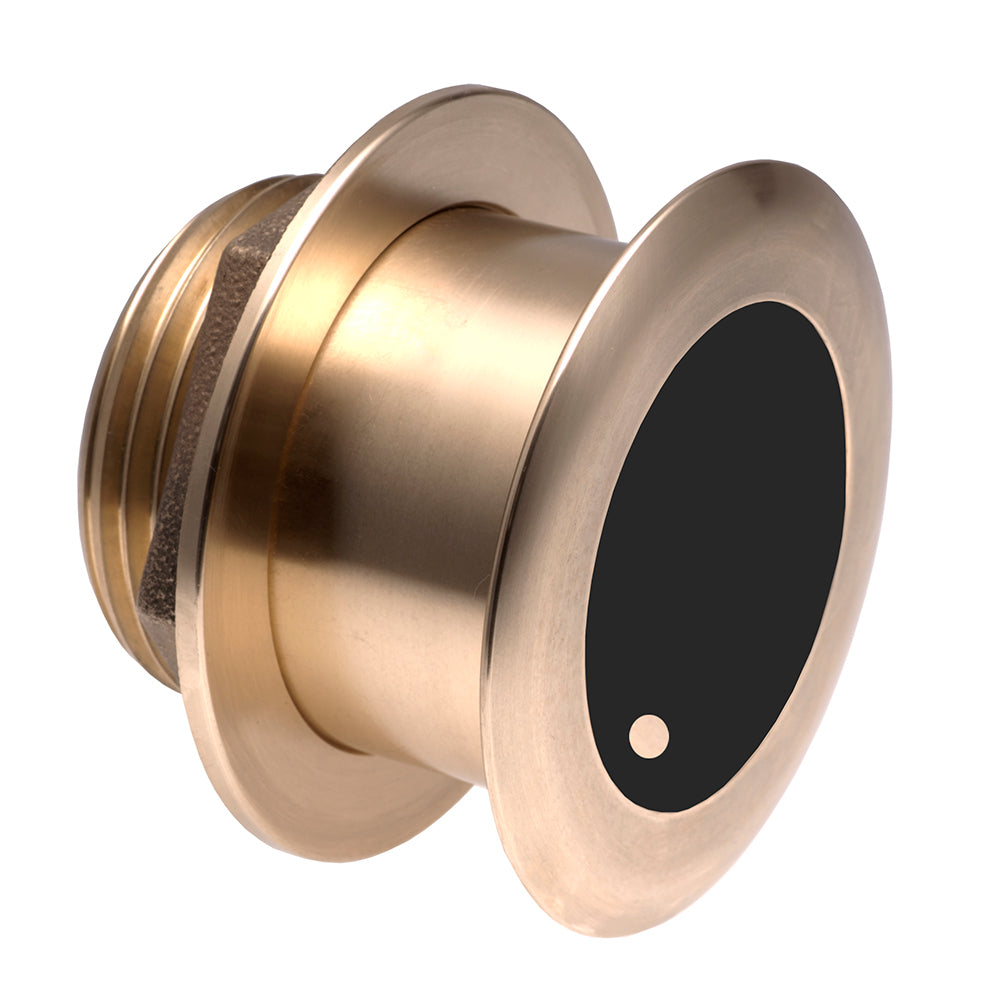

Airmar B175H Bronze Thru Hull 0° Tilt - 1kW - Requires Mix and Match Cable

1 kW

Airmar's low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles. The high-frequency band delivers a narrow beamwidth—excellent for pinpointing fish holding tight to wrecks, reefs, and other structures. High frequency also shows amazing target separation on baitfish and schooling gamefish. Transmitting across 130 to 210 kHz, the B175H has up to 80 kHz of total bandwidth in just one installation for superior shallow-water performance and bottom detail.

Tilted Element transducers have the element fixed at a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.

The B175H is available in three Tilted Element models:

• Fixed 20° tilted version for 16 to 24° hull deadrise angles
• Fixed 12° tilted version for 8 to 15° hull deadrise angles
• Fixed 0° tilted version for 0 to 7° hull deadrise angles

B175H Bronze Thru Hull 0° Tilt - 1kW

Requires Mix and Match Cable

B175H Bronze Thru Hull 20 degree Tilt 1KWRely on Airmar’s new broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.

Features:

• High—CHIRPS from 130 kHz to 210 kHz, 15° to 9° beamwidth
• 0° tilted version, 1KW
• 80 kHz of total bandwidth from one transducer
• Depth & fast-response water-temperature sensor
• Bronze transducer housing
• Boat Size: Up to 11 m (36’)
• Hull Type: Fiberglass or wood
• Exclusive Xducer ID® technology
• Requires Mix and Match Cable

Rely on Airmar's new broadband sensor to complete your final fishing mission. Whether you are a commercial fisherman, a charter captain or a tournament angler, there is a new game...

• Depth and fast-response water-temperature sensing
• 1 kW of power with a maximum depth of 304 m (1000')
• High frequency: 130 to 210 kHz
• 10° to 6° beamwidth
• 80 kHz of total bandwidth from one transducer
• High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
• Low-profile, thru-hull housing yields good display resolution at speed when installed properly
• Recommended for stepped, planing, or displacement hull
• Bronze housing for use in a fiberglass or wood hull
• Also available in a stainless steel housing (SS175H) for use in all hull materials
• Patented Xducer ID technology

SKU: NVN-68020
MPN: B175C-0-H-MM
