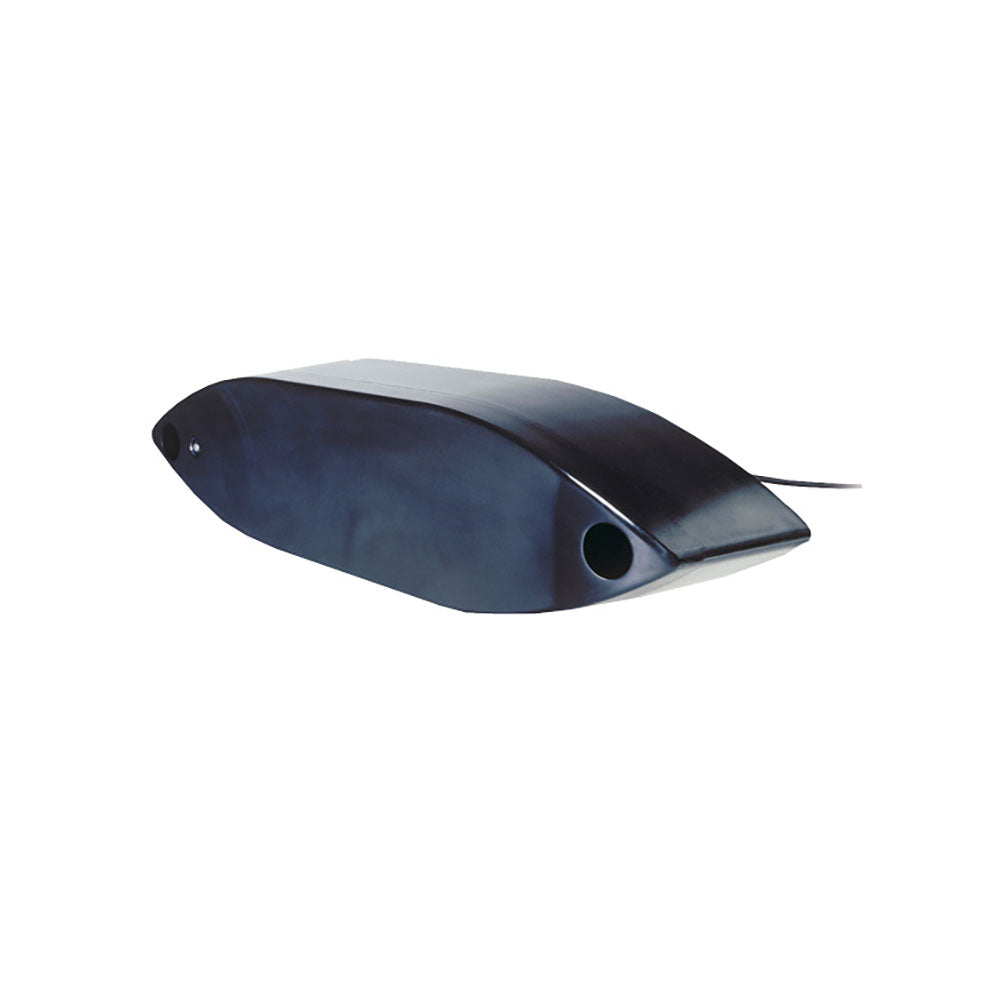

Airmar R409C-LWM Wide-Beam Chrip Transducer - Low/Wide/Medium - Bare Wire

Today's top billfish-tournament captains are calling the R409LWM their “go to” transducer for seeking out targets and pinpointing them in deep water. This ultra-wide transducer features a 40° beamwidth for an amazing amount of fish-finding coverage under the boat. Combining the low-frequency range of 40 to 60 kHz with a medium-frequency range of 80 to 130 kHz, this tournament-series transducer reveals more fish in the water column than ever before.

Captains are combining this transducer with a PM275LHW or a B175HW for a combined package covering low to high frequencies with both wide and narrow-beams.

Note: 33-541-01 – Stainless Steel Stuffing Tube is included.

R409C-LWM Wide-Beam Chrip Transducer - Low/Wide/Medium - Bare Wire

Outfish the competition with AIRMAR’s new tournament series Ultra Wide Beam
Chirp transducers. Now, get even MORE coverage under the boat. These Ultra Wide transducers offer a 40 degree beamwidth. Combining a low-frequency range of 40 to 60 kHz with a medium-frequency range of 80 to 130 kHz, this tournament series reveals more fish in the water column than ever before and is being reported by captains as the best transducer option. Don’t miss the fish—install this transducer for your next tournament season. You’ll be impressed with the results on your Chirp display!

Features

• CHIRPs across the following bandwidths:
  • Low Frequency 40 to 60 kHz, 40° Constant Beamwidth
  • Medium Frequency 80 to 130 kHz, 13° to 8° Beamwidth
• Depth & fast response water-temperature sensor
• Thru-Hull
• 2kW
• Urethane housing
• Hull Type: Fiberglass only
• Exclusive Xducer ID® technology
• Hull Deadrise: 0° to 25°
• Acoustic Window: Epoxy/urethane
• Weight: 15.1 kg (33.3 lb)

"Detailed Description Outfish the competition with AIRMAR? s new tournament series Ultra Wide Beam Chirp transducers. Now, get even MORE coverage under the boat. These Ultra Wide transducers offer a 40 degree beamwidth. Combining a low-frequency range of 40 to 60 kHz with a medium-frequency range of 80 to 130 kHz, this tournament series reveals more fish in the water column than ever before and is being reported by captains as the best transducer option. Dont miss the fishinstall this transducer for your next tournament season. Youll be impressed with the results on your Chirp display! Read the product brochure Features CHIRPs across the following bandwidths: Low Frequency 40 to 60 kHz, 40 Constant Beamwidth Medium Frequency 80 to 130 kHz, 13 to 8 Beamwidth Depth & fast response water-temperature sensor Thru-Hull 2kW Urethane housing Hull Type: Fiberglass only Specifications Hull Deadrise: 0 to 25 Acoustic Window: Epoxy\/urethane Weight: 15.1 kg (33.3 lb) Technical Data View Technical Data Page Transducer Designations: L: 40-60B M: 80-130B Owner's Guide 17-335-01.pdf 17-335-01-spanish.pdf 17-335-01-french.pdf"

• Depth and fast-response water-temperature sensor
• 2 kW
• Low frequency: 40 to 60 kHz
  • 40° beamwidth for ultra-wide coverage
  • Maximum depth of 1,219 m (4,000')
• Medium frequency: 80 to 130 kHz
  • 13° to 8° beamwidth
  • Maximum depth of 914 m (3,000')
• 70 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
• Urethane transducer housing with fairing for optimal performance at higher speeds
• Also available as a pocket/keel (PM411LWM ) mount
• Exclusive Xducer ID technology

SKU: NVN-66636
MPN: R409C-LWM
UPC:
