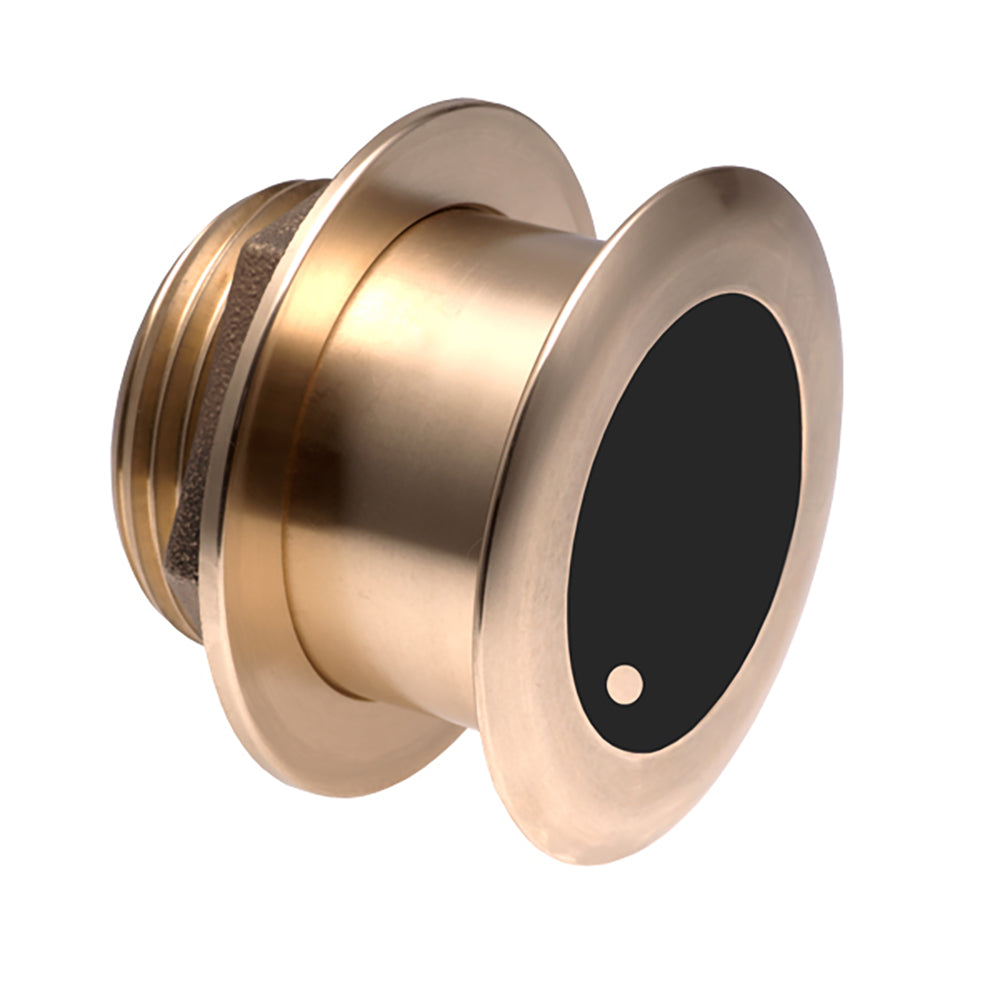

Airmar B164 Bronze Thru-Hull Transducer w/Humminbird - 14-Pin Plug - 20°

1 kW

Step up to a 1 kW—without a fairing! The 1 kW, flush-mount, Tilted Element transducer is perfect for fast, trailered vessels that cannot accommodate a High-performance Fairing. The flush-mounted, bronze housing extends less than 6.35 mm (1/4") below the hull, so it can sit on trailer rollers and bunks. The ceramic arrays are tilted inside the housing, providing the perfect vertical beam with maximum energy on what is directly below the boat.

Available in three Tilted Element models:

• Fixed 20° tilted version for 16 to 24° hull deadrise angles
• Fixed 12° tilted version for 8 to 15° hull deadrise angles
• Fixed 0° tilted version for 0 to 7° hull deadrise angles

B164 Bronze Thru-Hull Transducer w/Humminbird 14-Pin Plug - 20°

Step up to a 1kW - Without a Fairing! Airmar has taken our innovative Tilted Element™ technology to a higher power. The 1kW, flush-mount, Tilted Element transducer is perfect for fast, trailered, tournament sportfishing vessels that cannot have a High-Performance Fairing. The flush-mounted, bronze housing protrudes less than 6.35 mm (0.25") outside your hull and can sit on trailer rollers and bunks with no damage at all. The ceramic arrays are tilted inside the housing giving you the perfect vertical beam with maximum energy on what is directly below your boat. Take your fishfinder to the next power with this 1kW, Tilted Element transducer.

Features:

• 1 kW power, 50/200 kHz multiple-ceramics

• Engineered for center-console and trailered boats
• Low-profile protrusion below the hull
• No affect on your boats running performance
• Interfaces to any 600W or 1 kW echosounder
• Bronze transducer housing
• Depth and fast-response water-temperature sensor
• Boat Size: 8M to 11M (25' to 35')

Specifications:

• Weight: 2.7 kg (6 lb)

• Hull Deadrise: Up to 28°
• Acoustic Window: Urethane

Upgrade to 1k-W-no fairing! Airmar brings our innovative tilt element technology to higher power. The 1kW embedded tilt sensor is very suitable for...

• Depth and fast-response water-temperature sensing
• 1 kW of power
• Dual-frequency elements:
• 50 kHz with a wide 22° beamwidth for depth performance to 529 m (1800')
• 200 kHz with a 6° beamwidth for depth performance to 235 m (800')
• Interfaces to any 600 W or 1 kW echo sounder
• Engineered for center-console and trailered boats
• Low-profile bronze housing extends less than 6.35 mm (0.25") below the hull
• No effect on boat's running performance
• Available in a stainless steel housing (SS164) for use in all hull materials
• Patented Xducer ID technology

SKU: NVN-65258
MPN: B164-20-14HB
