Airmar B60 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin - 20º
Airmar B60 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin - 20º — Product description
600 W
The B60 is a 600 W, 50/200 kHz transducer that integrates Airmar's popular, Tilted Element feature. This Tilted Element transducer has the ceramic element fixed at either a 20° or 12° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise angle. By orienting the beam directly down, it ensures maximum echo returns to the transducer for more-accurate depth readings.
Available in two Tilted Element models:
- Fixed 20° tilted version for 16 to 24° hull deadrise angles
- Fixed 12° tilted version for 8 to 15° hull deadrise angles

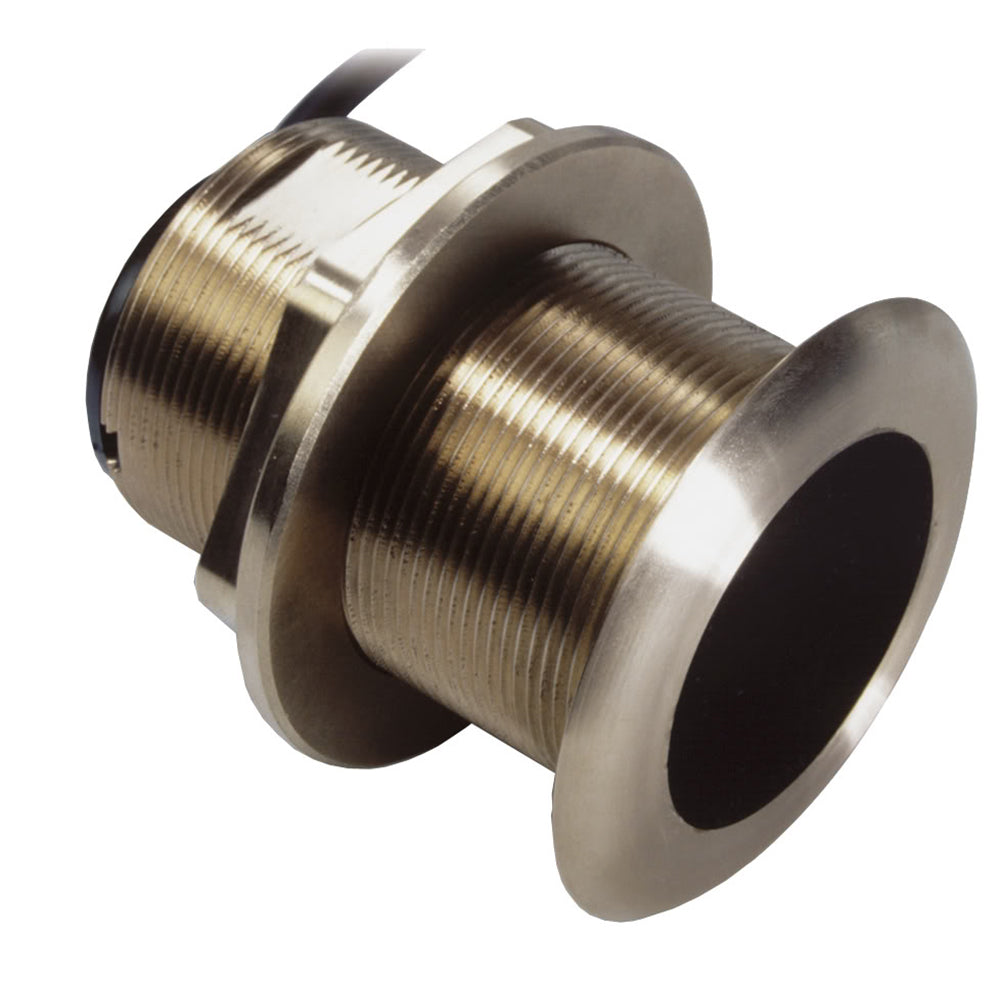

B60 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin - 20º
The bronze B60-20º provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted for built-in, deadrise compensation. The resulting vertical beam gives excellent echo returns for more-accurate depth readings. The nearly-flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.
Features:
- Engineered for center-console and trailered boats
- Low-profile protrusion below the hull
- No affect on your boats running performance
- Arrow on cap points toward keel when installed
- Built-in temperature sensor
- Boat Size: Up to 8 m (25')
- Bronze transducer housing
Specifications:
- Weight: 1.4 kg (3 lb)
- Hull Deadrise: Up to 24°
- Acoustic Window: Urethane
Inside the housing, the ceramic element is tilted for built-in dead angle compensation. The resulting vertical beam provides excellent echoes for more accurate depth readings...
- Depth and fast-response water temperature sensing
- 600 W of power
- Dual-frequency element:
- 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200')
- 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
- Perfect for center-console or trailered boats
- Low-profile bronze housing extends only 5 mm (3/16") outside the hull
- No effect on your boat's running performance
- Bronze housing for fiberglass or wood hull
- Also available in a stainless steel housing (SS60) for use with all hull materials
SKU: NVN-65252
MPN: B60-20-HB
UPC:
Technical specifications
| Brand | Airmar |
| Model | Airmar B60 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin - 20º |
| SKU / MFR# | 65252 |
