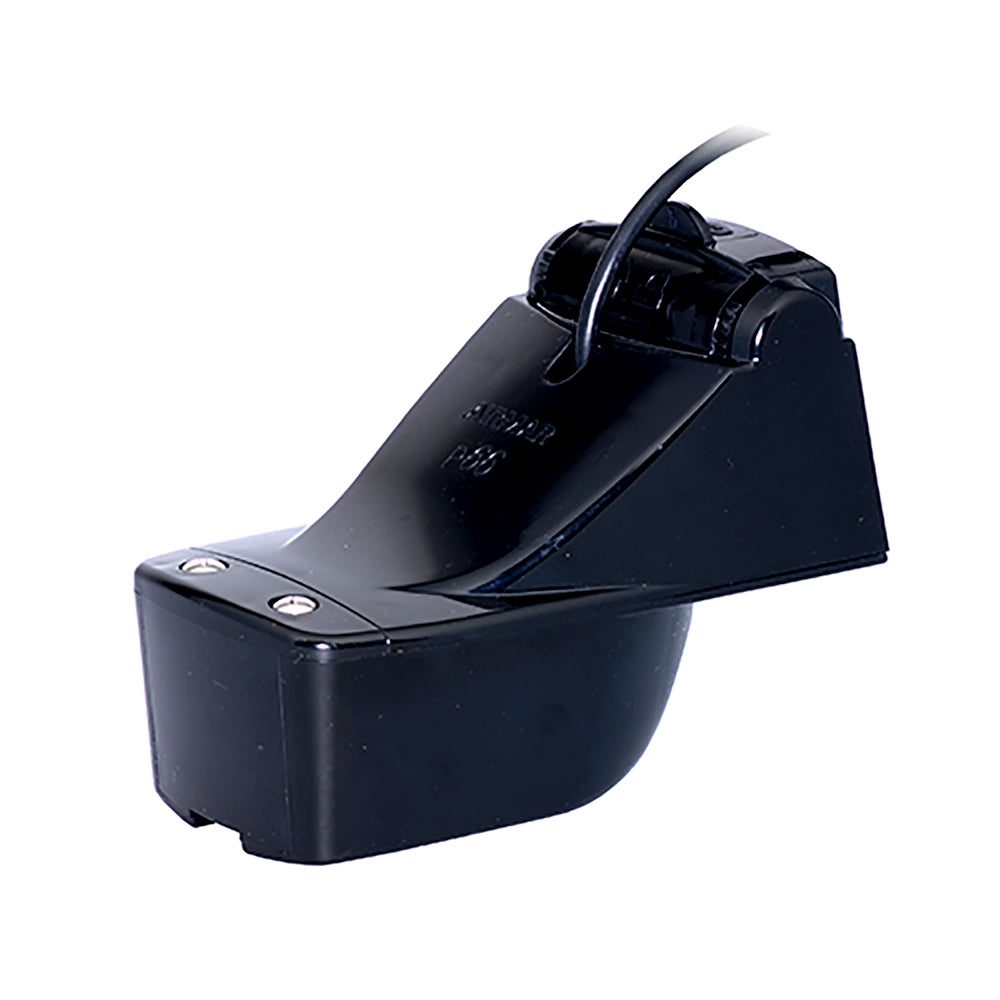

Airmar P66 Transom Mount Transducer f/Humminbird 9-Pin Units

The P66, Triducer Multisensor transom-mount features our 50/200 kHz, dual-frequency, single, ceramic element. This hydrodynamic housing with its rounded nose reduces the turbulence under the transducer's acoustic face for accurate high-speed readings and clear display images.

P66 Transom Mount Transducer f/Humminbird 9-Pin Units

Features:

• Depth and temperature in one housing

• Plastic kick-up bracket

• Accommodates transom angles between 2° and 20°

• Recessed waterflow channel protects paddlewheel

• Transducer can be removed from bracket without the use of tools for easy service and storage

• Boat Size: Up to 12M (40')

• Frequency: 50/200 kHz

• Beamwidth: 50 kHz-45°, 200 kHz-11°

• RMS Power: 600W

• 10M Cable

Fits: All 800, 900 & 1100 Series except 967 3D




P66 buzzer 9-pin unit tail plate mounting sensor features: depth and temperature in a shell, plastic anti-kick bracket can accommodate 2 ° to 20 ° horizontal plate angle groove in the water flow channel can protect the paddle wheel without being on the bracket The transducer can be removed from the bracket

• Depth, speed, and temperature
• 600 W
• Dual-frequency element:
• 50 kHz with a 45° beamwidth for depth performance to 353 m (1,200')
• 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
• Recessed water-flow channel protects paddlewheel from obstructions
• Plastic release bracket protects sensor from frontal impact
• Sensor can be removed from bracket without tools for easy service or storage
• Chemical and impact-resistant plastic housing
• Available in a Smart Sensor version (P66S) featuring embedded microelectronics.

SKU: NVN-65246
MPN: P66-DT-HB
UPC: 760969875834
