Airmar 599 Low/High Frequency - In-Hull Chirp Transducer w/o Connector

3 kW

The R599LH is the go-to transducer for today's top captains who want the maximum depth capability combined with the excellent target resolution of the high-frequency band. This powerhouse shows extreme target detail, bottom discrimination, and bait and game-fish separation at all depths. The R599LH is packed with a twenty-four element, low-frequency array that operates at anywhere between 28 and 60 kHz. The single, high-frequency ceramic operates at any frequency between 130 and 210 kHz and has a narrow, 8° to 4°, beam, delivering amazing target resolution and bottom detail.

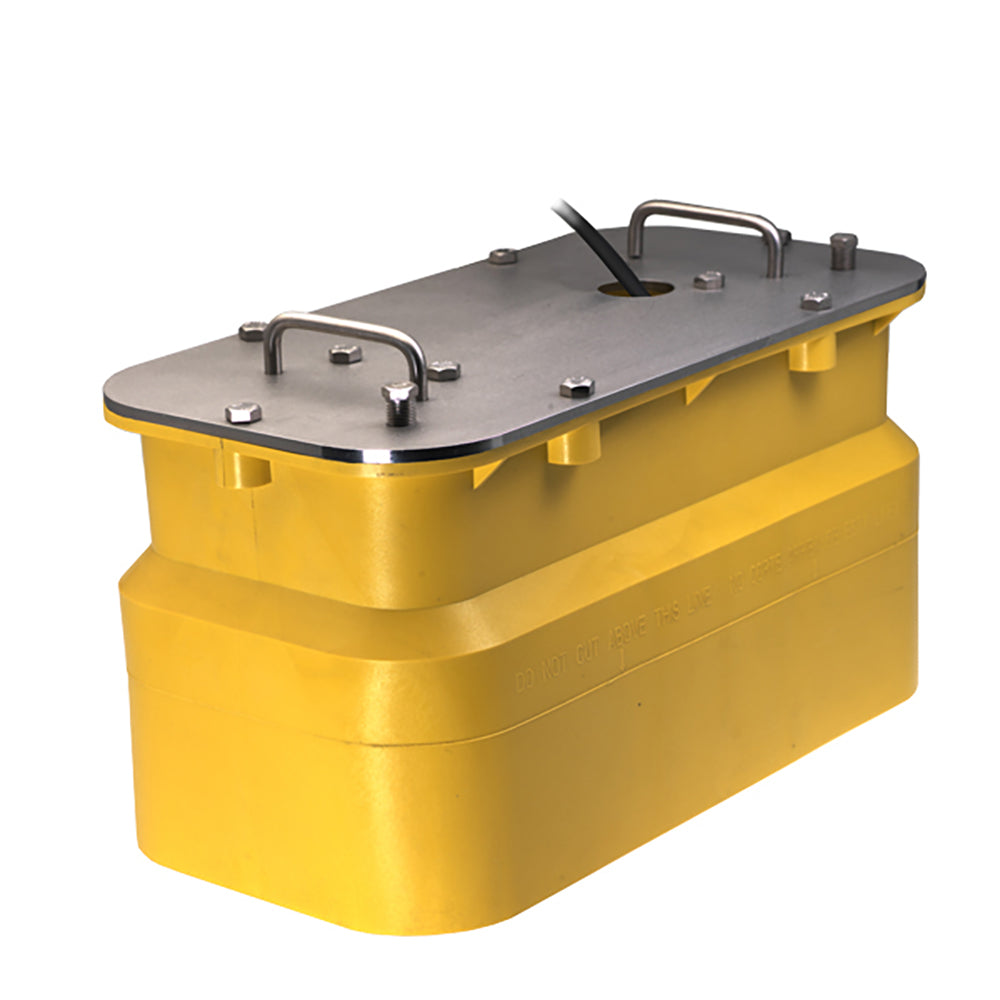

The transducer is installed in the included tank which is cut to the boat's deadrise angle and affixed inside the hull. When the transducer is placed inside the tank, it is properly oriented for optimal performance. The R599LH is a popular choice for customers not wanting to drill a hole in their hull and for trailered or multi-hull boats.

Low/High Frequency - In-Hull Chirp Transducer without Connector

Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000') with 5 to 10 times greater detail and resolution so precise it_s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 112 kHz of total bandwidth in just one installation, saving customers time and money.

As the ELITE model in the Chirp In-Hull product line, the R599 LH Chirps across the following bandwidths:

LH Model - Low Frequency 28-60 kHz/High Frequency 130-210 kHz

Features:

• Depth only
• Low-CHIRPS from 28 kHz to 60 kHz 23° to 9° beamwidth
• High-CHIRPS from 130 kHz to 210 kHz 8° to 4° beamwidth
• 112 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 28, 38, 50, and 200 kHz plus everything else in the bandwidth
• Fishing Profile: Recreational and commercial inshore and offshore fishing (deep-water canyon and sea-mount tracking)
• Epoxy transducer housing
• Hull Type: Solid fiberglass only

Specifications:

• Hull Deadrise: 0° to 22°
• Acoustic Window: Epoxy/urethane
• All mounting hardware provided, including tank
• Weight: 19.7 kg (43.4 lb)

The W is housed in a flush bronze shell without a fairing. The shell protrudes less than 1/4 inch to the outside of the hull and can be placed on the wheel/baggage rack of the trailer without damage. - This ...

• Depth and fast-response water-temperature sensing
• 2 to 3 kW of power for exceptional deep-water performance
• Low frequency: 28 to 60 kHz
• 23° to 9° port-starboard beamwidth
• 11° to 5° fore-aft beamwidth
• Maximum depth of 3048 m (10000')
• High frequency: 130 to 210 kHz
• 8° to 4° beamwidth
• Maximum depth of 457 m (1500')
• 112 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
• Urethane housing with plastic tank for in-hull mounting
• Also available as cavity/welded-tank (CM599LH) and thru-hull external (R509LH) mounts
• Patented Xducer ID technology

SKU: NVN-64842
MPN: R599C-LH
