Airmar B164 1kW 0° Thru-Hull Transducer for Simrad w/Blue Connector

1 kW

Step up to a 1 kW—without a fairing! The 1 kW, flush-mount, Tilted Element transducer is perfect for fast, trailered vessels that cannot accommodate a High-performance Fairing. The flush-mounted, bronze housing extends less than 6.35 mm (1/4") below the hull, so it can sit on trailer rollers and bunks. The ceramic arrays are tilted inside the housing, providing the perfect vertical beam with maximum energy on what is directly below the boat.

Available in three Tilted Element models:

• Fixed 20° tilted version for 16 to 24° hull deadrise angles
• Fixed 12° tilted version for 8 to 15° hull deadrise angles
• Fixed 0° tilted version for 0 to 7° hull deadrise angles

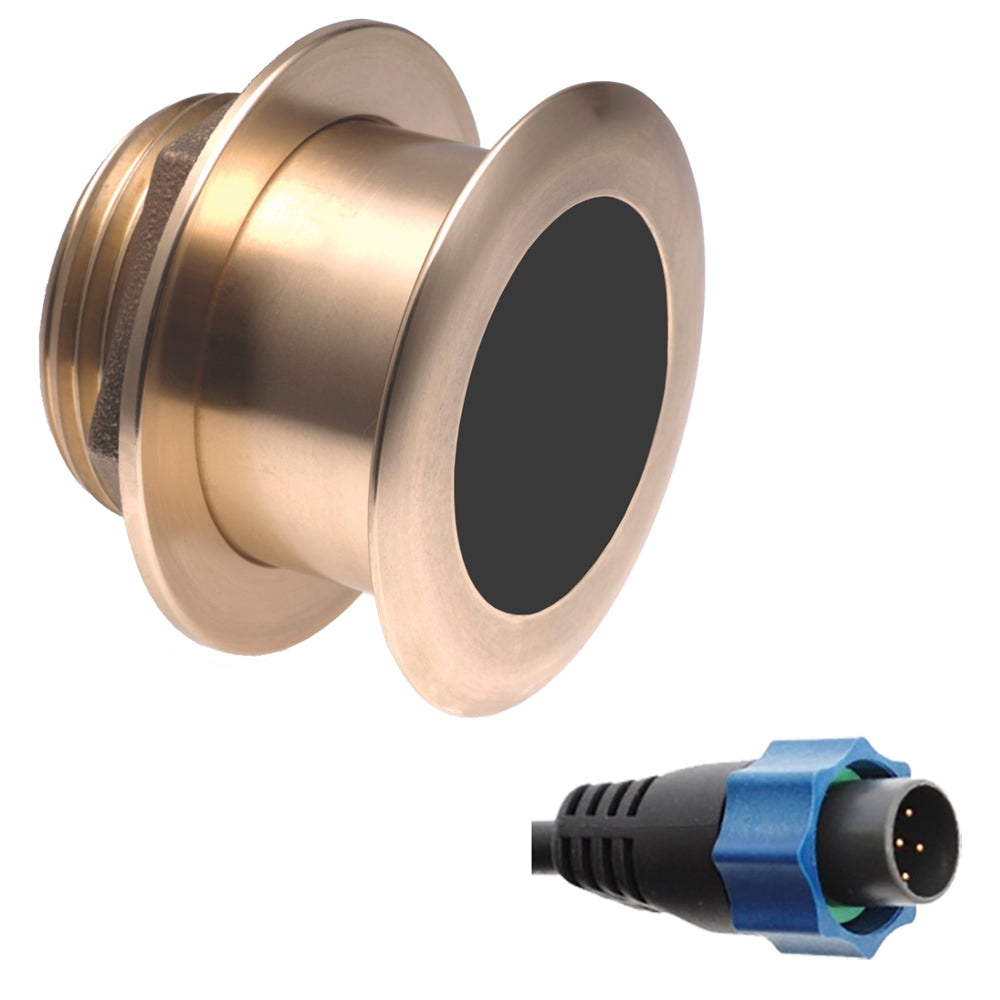

B164 1kW 0° Thru-Hull Transducer with Blue Connector

The B164 is a 1kW bronze low-profile transducer with a fast-response temperature sensor. The transducer is ideal for fast, trailered, tournament, sport-fishing boats that cannot install an external fairing. This version has a zero degree tilt for hull deadrise angles of 0-7 degrees.

The BL (Blue Connector) version of the B164 transducer is for Lowrance fishfinders and sounders that use the standard Lowrance 7-pin blue connector. This includes the Lowrance HDS series and many other current and discontinued Lowrance units. The B164 BL version is also for the Simrad NSE series.

Features:

• Power output 1000W

• 3.875" hole size (98mm)

• Beam 22 x 20° at 50kHz, 6 x 6° at 200kHz

• Maximum depth 1200-1800 ft @ 50kHz

• Maximum depth 500-800 ft @ 200kHz

"B164 tilted element 20 features: depth\/temp 50\/200 khz 1 kw rms high-performance bronze step up to a 1kwwithout a fairing airmar has taken our innovative tilted element technology to a higher power. The new 1kw, flush-mount, tilted element transducers are perfect for fast, trailered tournament sport fishing vessels who cannot have a high-performance fairing. The flush mounted, bronze housing protrudes less than 6. 35 Mm 0. 25 Outside your hull and can sit on trailer rollers and bunks with no damage at all. The ceramic arrays are tilted inside the housing giving you the perfect vertical beam with maximum energy on what is directly below your boat. Take your fishfinder to the next power with airmars 1kw tilted element transducers."

• Depth and fast-response water-temperature sensing
• 1 kW of power
• Dual-frequency elements:
• 50 kHz with a wide 22° beamwidth for depth performance to 529 m (1800')
• 200 kHz with a 6° beamwidth for depth performance to 235 m (800')
• Interfaces to any 600 W or 1 kW echo sounder
• Engineered for center-console and trailered boats
• Low-profile bronze housing extends less than 6.35 mm (0.25") below the hull
• No effect on boat's running performance
• Available in a stainless steel housing (SS164) for use in all hull materials
• Patented Xducer ID technology

SKU: NVN-59852
MPN: B164-0-BL
